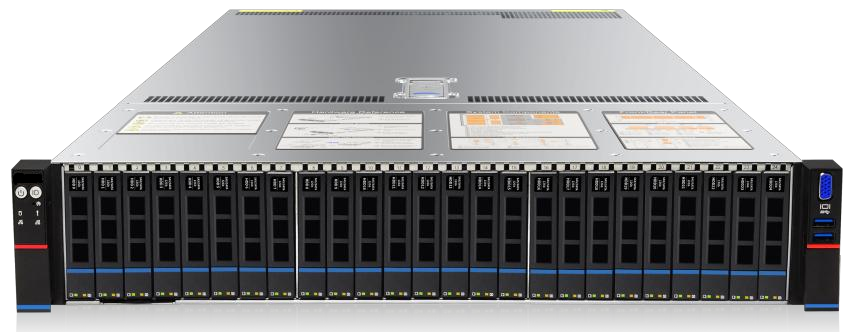

Maipu MPS201-G4 Series Rack Server
Maipu MPS201-G4 is a high-end 2U dual-socket server, supporting 1 or 2 4th/5th generation Intel® Xeon® Scalable processors, 32*DIMM DDR5 memory slots, supports 2*M.2 interfaces, 1*RJ45 management port, and 12*PCIe 5.0 expansion slots. It is suitable for virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise markets, or telecommunications business applications, and more.
Product Features
. Supports 1 or 2 4th/5th generation Intel® Xeon® Scalable processors, with a maximum TDP of 350W
. Supports a maximum of 32*DDR5 memory slots, with memory frequencies of 4400/4800/5600MHz
. 2*SATA/NVMe M.2 interfaces.
. Modular design, allowing various combinations of PCIe and hard drive options.
. Up to 12*PCIe 5.0 expansions, with optional support for 4 double-width, full-height, full-length GPU cards.
Product Specifications
|
Product Model |
MPS201D12R-NV-G4 |
MPS201D12R-G4 |
MPS201D24R-NV-G4 |
|
Form Factor |
2U 12*U.2 Direct-Connect Server |
2U 12*SATA/SAS Direct-Connect Server |
2U 24*U.2 Direct-Connect Server |
|
System Size |
799*433*87.6mm (Depth*Width*Height) |
||
|
Processor |
Supports 1 or 2 4th/5th generation Intel® Xeon® Scalable processors, with a maximum TDP of 350W |
||
|
Memory |
32*DDR5 memory slots, supporting DDR5 RDIMM 4400/4800/5600MHz memory |
||
|
Internal Storage Interface |
3*Mini SAS HD interfaces, 2*SATA/NVMe M.2 SSD interfaces, 14*MCIO interface |
||
|
External Hard Drive |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2*2×2.5-inch hard drive. |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA hard drives Rear: optional support 2*2×2.5-inch hard drive. |
Front: support 24*hot-swappable 2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2*2×2.5-inch hard drive. |
|
External Ports & Buttons |
Front: 1*VGA, 2*USB3.0, Rear: 1*VGA, 1*RJ45 Gigabit Ethernet ports, 1*COM port, 2*USB3.0 |
||
|
PCIe Expansion |
6 full-height PCIe slots, 4 half-height PCIe slots, 2 OCP 3.0 slots Riser1/2： 1*Full height PCIe 5.0 x16, 2* Full height PCIe 5.0 x8 2* Full height PCIe 5.0 x16 Riser3/4 ： 2*half height PCIe 5.0 x8 1*half height PCIe 5.0 x16 OCP： 2*OCP 3.0(PCIe 5.0 x8) |
||
|
Security |
Support TPM Module (Optional) |
||
|
Power Supply |
Optional AC 220V 550W、800W、1300W、1600W、2000W、2200W 1+1 redundant power supply(adapted to actual power requirements) |
||
|
FAN |
Standard 4 hot-swappable N+1 redundant fans, supporting 8038/8056 specifications |
||
|
IPMI |
IPMI 2.0 |
||
|
Management |
1*DC0 RJ45 Management Port |
||
|
Temperature |
Working Temperature 5℃–35℃ Short-term storage (≤72 hours): -40°C ～ 70°C Long-term storage (>72 hours): 20°C ～ 28°C |
||
|
Humidity |
Working Humidity 20%–80%RH non-condensing Short-term storage (≤72 hours): 20% ～ 90% RH (non-condensing, including packaging) Long-term storage (>72 hours): 30% ～ 70% RH (non-condensing, including packaging) |
||
:
