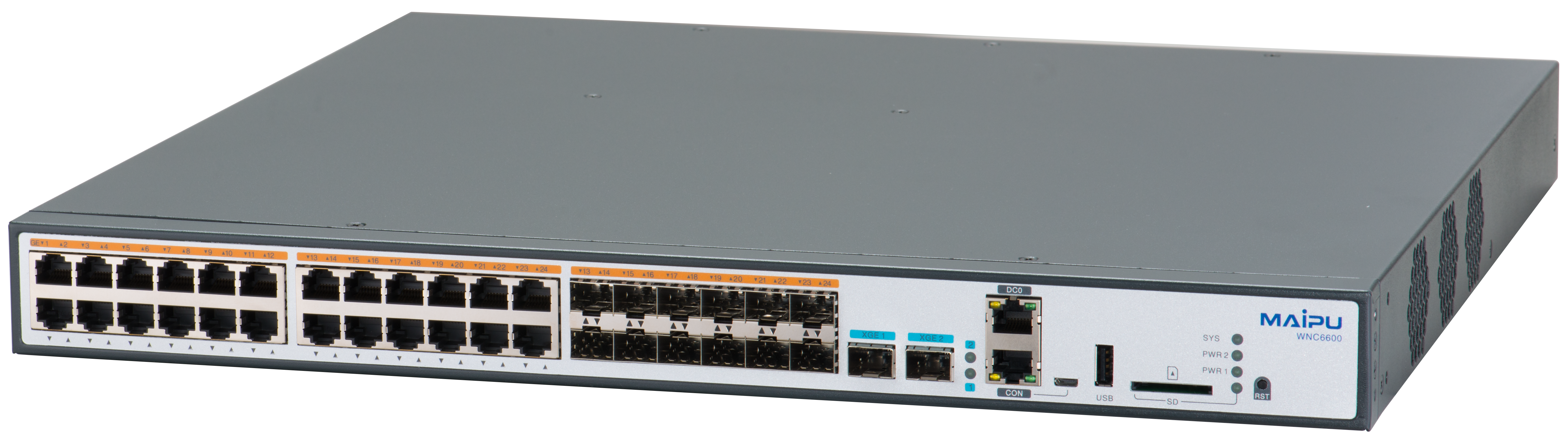

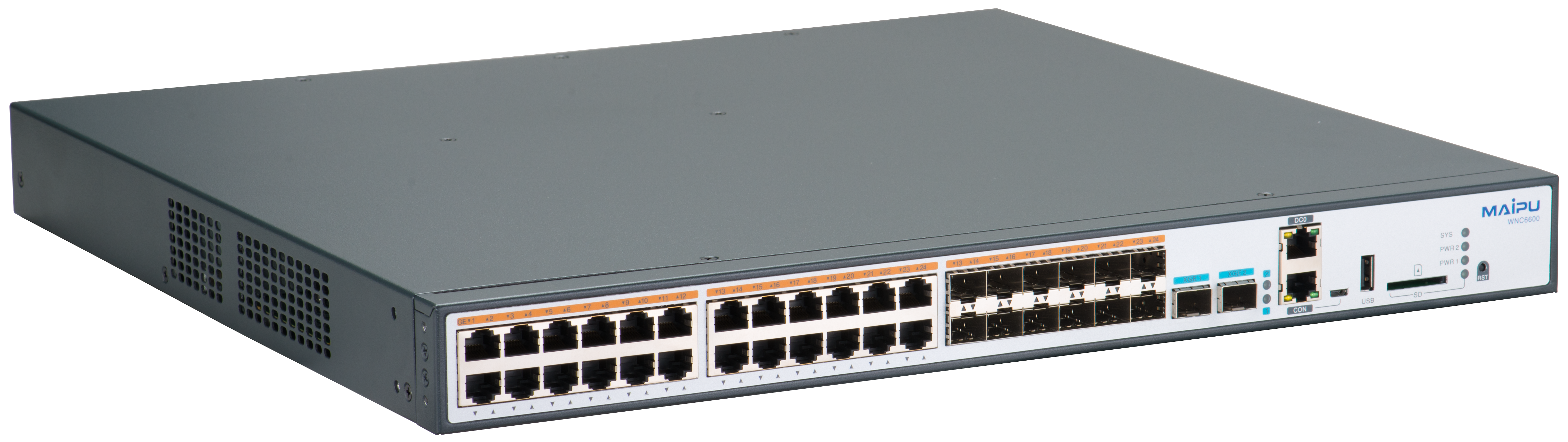

WNC6600 Series Access Controller
WNC6600 series developed by Maipu is a new-generation wireless access controller that centrally manages Fit APs and wireless clients while offering a wide range of service options. By adopting a unified wired and wireless design approach, WNC6600 boasts high performance, seamless integration, extensive service capabilities, outstanding reliability, and robust security. This design caters to the comprehensive integration needs of wired and wireless networks for diverse industry clients. WNC6600's unified management feature simplifies WLAN management, operation, and maintenance, accommodating the deployment requirements of various services.
WNC6600 advanced software capabilities provide load balancing, automatic fault recovery, intelligent RF management, and L2&L3 roaming and 802.11k/v/r roaming for users. Network administrators can utilize the web interface for configuration. The configuration process takes just three minutes to complete. As a unified wireless smart management platform, WNC6600 access controller collaborates with Maipu's data communication products to deliver comprehensive network solutions tailored to various enterprise users. This makes it suitable for a wide range of campus network scenarios.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
· Zero-Configuration Plug-and-Play
In Fit AP mode, zero-configuration Fit APs automatically discover and connect to the wireless controller via Layer 2 or Layer 3 network. WNC6600 wireless controller handles configuration, management, and maintenance of Fit APs. WNC6600 enables efficient management and monitoring of Fit APs across L2&L3 network.
· High Availability
Ensure uninterrupted network services with the WNC6600's HA support. It supports the 1+1 or 1:1 Backup configurations which can be guaranteed redundancy and uninterrupted connectivity, safeguarding your network's reliability.
· RF Optimization
Optimize your wireless network's performance by intelligently managing bandwidth, prioritizing 5G frequencies, and proactively disconnecting low-signal clients. The multicast to unicast conversion efficiently manages traffic, ensuring an excellent user experience.
· Seamless Roaming
Enhance user mobility within your network using robust Layer 2&3 roaming, and 802.11k/v/r roaming support. Users can move effortlessly, maintaining their connection without disruption as they traverse your wireless landscape.
· Unified Wired & Wireless Features
WNC6600 wireless controller possesses robust Layer 2 and Layer 3 wired device functionality. Equipped with high capacity switching interfaces, it accommodates the access management of numerous wireless APs and terminals, while also supporting substantial data forwarding in wired networks.
· BYOD Functionality
WNC6600 wireless controller independently achieves BYOD functionality without the need for collaboration with other devices. It can identify different terminal types based on DHCP-Feature. The WNC6600 enables the implementation of distinct security policies tailored to each terminal type.
· Smooth Network Upgrades
WNC6600 supports various complex network environments and enables seamless, secure wireless network deployment without disrupting existing wired networks. It also serves as the aggregation device for smaller wired networks, ensuring smooth network upgrades and maximizing return on investment.
· Comprehensive Security Policy
WNC6600 provides various authentication modes, access control, and inbuilt WIDS to detect and suppress potential threats. It also offers strict user access control policies, including PSK authentication, 802.1x authentication, MAC authentication, portal authentication, etc.
· Integrated PoE Power Supply
WNC6600-200-AC offers eight integrated PoE interfaces, eliminating the need for separate PoE switch for small network. This design simplifies network management and maintenance.
· Intelligent Management
WNC6600’s advanced smart management capabilities include automatic software upgrades, configuration delivery, and SNMP management for monitored APs, significantly reducing deployment costs and network maintenance complexity.
Product Specifications
|
Product Model |
WNC6600-200-AC |
WNC6600-500-AC |
WNC6600-1000-AC |
WNC6600-2000-AC |
|
Version |
V1 |
V1 |
V1 |
V1 |
|
Hardware Specification |
||||
|
Hardware Interface |
8*10/100/1000M Base-T 2*GE SFP interfaces. |
12*10/100/1000M Base-T 12*GE Combo (SFP+RJ45). 2*10GE SFP+ interfaces. |
12*10/100/1000M Base-T 12*GE Combo (SFP+RJ45). 2*10GE SFP+ interfaces. |
12*10/100/1000M Base-T 12*GE Combo (SFP+RJ45). 2*10GE SFP+ interfaces. |
|
Management Interface |
1*RJ45 Console 1*RJ45 DC0 1* USB |
1*RJ45 Console 1*RJ45 DC0 1*Micro-USB Console 1* USB |
1*RJ45 Console 1*RJ45 DC0 1*Micro-USB Console 1* USB |
1*RJ45 Console 1*RJ45 DC0 1*Micro-USB Console 1* USB |
|
Default Managed APs |
64 |
64 |
128 |
128 |
|
Maximum Managed APs |
256 |
512 |
1024 |
2048 |
|
PoE Ports |
8 |
N/A |
N/A |
N/A |
|

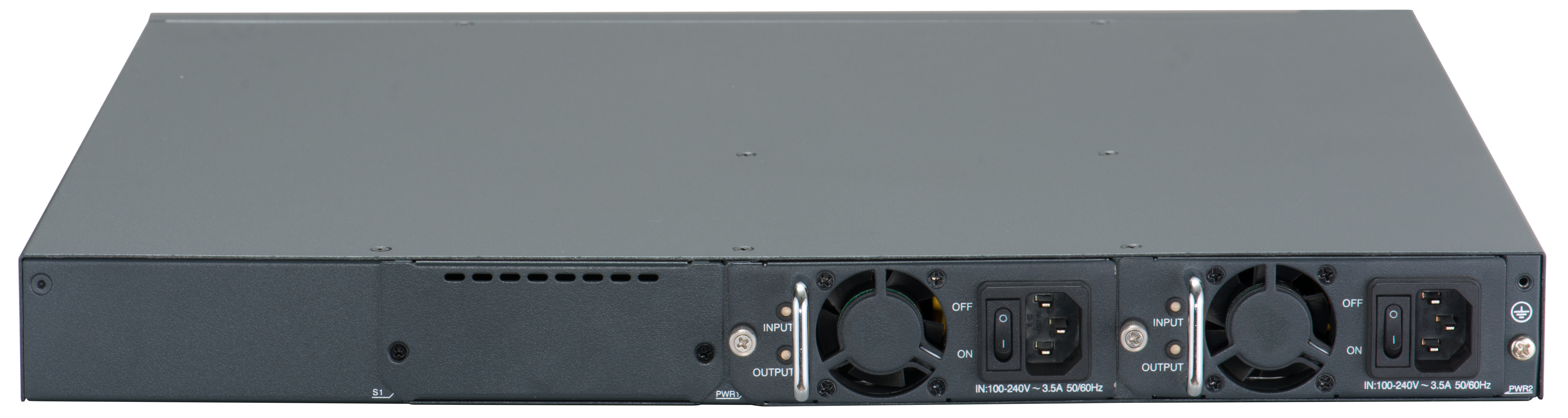

Power Supply |
AC:100~240V 50/60Hz |
AC:100~240V 50/60Hz DC: -40~-57V |
AC:100~240V 50/60Hz DC: -40~-57V |
AC:100~240V 50/60Hz DC: -40~-57V |
|
Power Redundant |
N/A |
Yes |
Yes |
Yes |
|
Power Hot Swap |
N/A |
Yes |
Yes |
Yes |
|
Power Consumption |
≥30W |
≥94W |
≥94W |
≥94W |
|
PoE Power Consumption |
125W |
N/A |
N/A |
N/A |
|
PoE Standard |
IEEE 802.3af/at |
N/A |
N/A |
N/A |
|
Dimension (W*D*H) mm |
442*320*44.3 |
442*420*44.3 |
442*420*44.3 |
442*420*44.3 |
|
Lightning Protection |
Common-mode, differential-mode 6KV |
|||
|
Work Humidity |
5~85% (No-condensing) |
|||
|
Work Temperature |
0~45℃ |
|||
|
Software Specification |
||||
|
L2 Protocol |
LACP Link Aggregation, Port Isolation, VLAN, STP/RSTP/MSTP, Error-Disable |
|||
|
L3 Protocol |
Static Route v4/v6, RIP/RIPng, OSPF, OSPFv3, Routing Policy, DHCP Client, DHCP Server, DHCP Relay |
|||
|
Network Security |
Port Security, ISG (IP Source Guard), DAI (Dynamic ARP Inspection), DHCP Snooping, DHCP Option82, ACL, AAA, Radius, TACACS, 802.1X |
|||
|
802.11 Protocol |
Support IEEE 802.11a/b/g/n/ac/ax |
|||
|
Network Reliability |
VRRP, VRRPv3, Track, BFD |
|||
|
Wireless Forwarding Mode |
Local Forwarding, Centralized Forwarding |
|||
|
Wireless Authentication |
Open, WPA-PSK, WPA-802.1X, WPA2-PSK, WPA2-802.1X, WPA3-PSK, WPA3-802.1X, MAC Authentication, Portal Authentication, Portal URL Redirection, Portal Server Escape |
|||
|
Wireless Security |
WIDS, User Isolation, SSID Hidden, SAVI, Anti-Rouge, Service Status Control, Web Access Control, ARP Suppression Protection |
|||
|
Wireless RF Management |
RRM, Set Working Channel Manually, Set Transmit Power Manually, DCA (Dynamic Channel Adjustment), TPC (Transmit Power Control) |
|||
|
Wireless Roaming |
L2 Roaming & L3 Roaming, 802.11k/v/r Fast Roaming |
|||
|
Wireless Control |
WLAN ACL, BYOD, Timing AP Rebooting, Timing Radio Rebooting, Timing Open/Close SSID, STA Number Control, Load Balancing between RF/AP, 5G Priority, RSSI Threshold, Weak Signal Offline, STA Blacklist/Whitelist |
|||
|
Wireless QoS |
WMM (Wi-Fi Multimedia, sub-set of 802.11e), WMF (Wireless Multicast Forwarding), AP bandwidth limitation, BSS total bandwidth limitation, BSS user bandwidth limitation |
|||
|
Wireless Reliability |
1+1 Backup, 1:1 Backup, HAP (Hybrid Access Point, AP Escape), Uplink Detection, Configuration Synchronization |
|||
|
Advanced Wireless Features |
RF Detection, Packet Air Capture |
|||
|
Network Management |
SNMP v1/v2/v3, MIB, RMON, SYSLOG, WEB (HTTP/HTTPS), CLI (Telnet, SSH), Ping, Tracert, FTP/TFTP, Debug, Keep Alive Gateway, NTP, SPAN, RSPAN |
|||
Typical Application

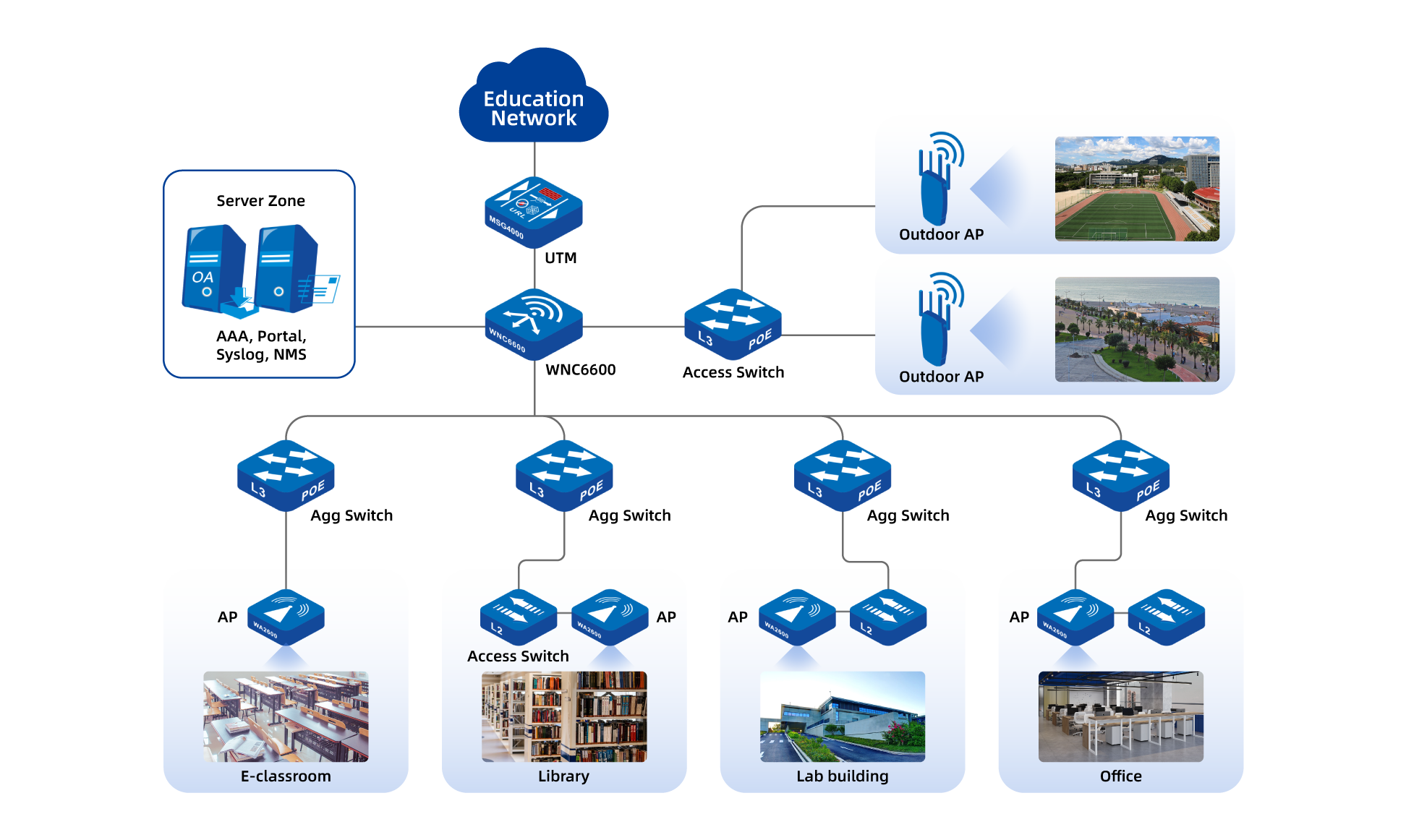

Campus Wireless Coverage
Order Information
|
Model |
Description |
|
WNC6600 Series Access Controller |
|
|
WNC6600-200-AC |
WNC6600-200-AC access controller, support 64 APs by default, max 256 APs. 1*Console port, 8*GE RJ45 ports (8 support PoE output) and 2*GE SFP ports. Fixed One AC power supply. |
|
WNC6600-500-AC |
WNC6600-500-AC access controller, support 64 APs by default, max 512 APs. 1*Console port, 12*GE RJ45 ports, 12*GE Combo ports and 2*10GE SFP+ ports. Dual power supply slots. |
|
WNC6600-1000-AC |
WNC6600-1000-AC access controller, support 128 APs by default, max 1024 APs. 1*Console port, 12*GE RJ45 ports, 12*GE Combo ports and 2*10GE SFP+ ports. Dual power supply slots. |
|
WNC6600-2000-AC |
WNC6600-2000-AC access controller, support 128 APs by default, max 2048 APs. 1*Console port, 12*GE RJ45 ports, 12*GE Combo ports and 2*10GE SFP+ ports. Dual power supply slots. |
|
Power Module |
|
|
AD250-1S005E |
250W power module, AC input 100~240V, Hot swap supported. |
|
DD500-5D005E |
500W power module, DC input -40~-57V, Hot swap supported. |
|
License |
|
|
WNC6000-L-32 |
WNC6600-L-32 for 32 APs licenses |
|
WNC6000-L-64 |
WNC6600-L-64 for 64 APs licenses |
|
WNC6000-L-128 |
WNC6600-L-128 for 128 APs licenses |
