Maipu PU3200-2GAC GPON HGU
Maipu PU3200-2GAC GPON HGU terminal devices is designed for fulfilling FTTH and triple play service demand of fixed network operators. These HGU adopt mature GPON technology, providing Wi-Fi, Layer 2/3 forwarding, high quality VoIP and rich management features as well. And they are fully compliant with technical regulations such as IEEE802.3ah, ITU-T G.984.x, etc.

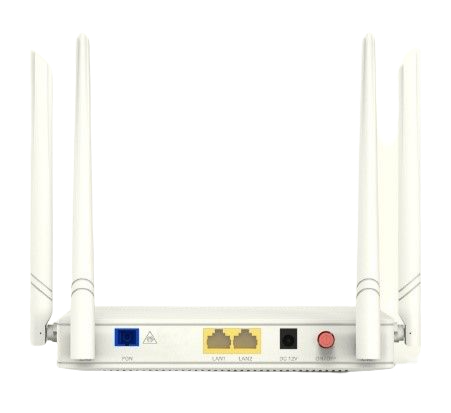

PU3200-2GAC provides 1*GPON Port, 2*GE Ports and 802.11b/g/n/ac Wi-Fi.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
Panel lights
|
LED |
ON |
Blink |
OFF |
|
PWR |
The device is powered up |
— |
The device is powered down |
|
PON |
Green is registered to the PON system |
Green is registering to the PON system |
Green is not registered to the PON system |
|
LOS |
Device does not receive optical signals |
— |
Device have received optical signals |
|
WAN |
Route WAN connect to internet. |
— |
Router WAN do not connect to internet. |
|
WI-FI (2.4/5.0G) |
Wi-Fi turned on |
Wi-Fi turn on and with ongoing data transmission |
Device is power off or Wi-Fi turned off |
|
PHONE (option) |
Device has registered to the soft-switch, but without ongoing data transmission |
Phone hooks off or the port is with ongoing data transmission |
Device is power off or not registered to the soft-switch |
|
LAN1～LAN2 |
Port is connected properly |
Port is sending or/and receiving data |
Port connection exception or not connected |
Product Specifications
|
Hardware Specification |
|
|
GPON Class B+ |
|
|
Receiving sensitivity: ≤-28dBm |
|
|
Transmitting optical power: 0～+4dBm |
|
|
Transmission distance: 20KM |
|
|
Wavelength |
Tx1310nm, Rx 1490nm |
|
Optical interface |
SC/UPC connector |
|
LAN interface |
2 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector |
|
Wi-Fi interface |
Compliant with IEEE802.11b/g/n/ac |
|
2.4GHz Operating frequency: 2.400-2.483GHz |
|
|
5.0GHz Operating frequency: 5.150-5.825GHz |
|
|
Support MIMO, 4T4R, 5dBi external antenna, rate up to 1.167Gbps |
|
|
Support: multiple SSID |
|
|
TX power: 11n--22dBm/11ac--24dBm |
|
|
LED |
For POWER、LOS、PON、WAN、 LAN1、LAN2、2.4G、5G |
|
Operating condition |
Temperature: 0℃～+50℃ |
|
Humidity: 10%～90%（non-condensing） |
|
|
Storing condition |
Temperature: -30℃～+60℃ |
|
Humidity: 10%～90%（non-condensing） |
|
|
Power adapter |
DC 12V/1.5A or DC 12V/1.0A |
|
Power supply |
≤10W |
|
Dimension |
178mm×120mm×30m(L×W×H) |
|
Net weight |
0.32Kg |
|
Software Key Feature |
|
|
Management Mode |
OAM/OMCI、Telnet、WEB、TR069 |
|
Data Service Functions |
Full speed non-blocking switching |
|
2K MAC address table |
|
|
64 full range VLAN ID |
|
|
Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc |
|
|
Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc |
|
|
Support auto polarity detection of Ethernet ports (AUTO MDIX) |
|
|
Integrated IEEE802.1p QoS with four level priority queues |
|
|
Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy |
|
|
Support bridge, router and bridge/router mixed mode |
|
|
Wi-Fi Service Functions |
Integrated 802.11b/g/n/ac |
|
Authentication: WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) |
|
|
Modulation type: DSSS、CCK and OFDM |
|
|
Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
|
Order Information
|
Product model |
Product specification |
|
PU3200-2GAC |
GPON HGU, 1*GPON Port, 2*GE Port and 802.11b/g/n/ac Wi-Fi |
