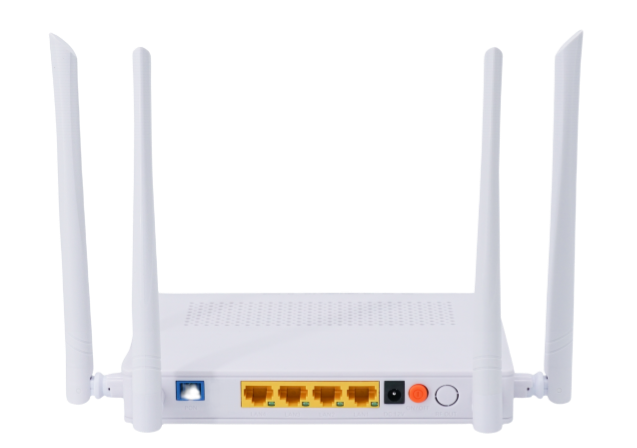

Maipu PU3320-4GAC GPON HGU
Maipu PU3320-4GAC GPON HGU is designed for fulfilling FTTH and triple play service demand of fixed network operators. These HGU adopt mature GPON technology, providing Wi-Fi, Layer 2/3 forwarding, rich management features as well. And they are fully compliant with technical regulations such as IEEE802.3ah, ITU-T G.984.x, etc.
PU3320-4GAC provides 1*GPON Port,4*GE Ports and 802.11b/g/n/ac Wi-Fi.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
Panel lights & Interface Description
|
LED |
ON |
Blink |
OFF |
|
PWR |
The device is powered up |
N/A |
The device is powered down |
|
PON |
Green is registered to the PON system
|
Green is registering to the PON system |
Device is not registered to the PON system
|
|
LOS |
Device does not receive optical signals
|
N/A |
Device have received optical signals
|
|
LAN1~LAN4 |
Port is connected properly |
Port is Sending/Receiving Data |
The subscriber network cable is not plugged tightly or the port connection is incorrect or no connection.
|
|
Wi-Fi (2.4G/5Ghz) |
Wi-Fi Turn On |
Wi-Fi Turn On with ongoing data transmission |
Device is Power Off or Wi-Fi Turn Off |
|
USB |
USB device is connected |
Ongoing data transmission |
USB device not connected |
|
Port Type |
Function |
|
PON |
Connect PON port with internet by SC/UPC type, single mode optical fiber cable. |
|
LAN 1/2/3/4 |
Connect device with ethernet port by RJ-45 cat5 cable. |
|
RST Button |
Press down reset button and keep about 5seconds to make the device restart and recover from the factory default settings. |
|
Pair Button |
Press down WLAN Pair button to begin pairing. |
|
Wi-Fi Button |
WLAN on/off. |
|
DC12V |
Connect with power adapter. |
Product Specifications
|
Hardware Specification |
|
|
PON interface |
GPON Class B+ |
|
Receiving sensitivity: ≤-28dBm |
|
|
Transmitting optical power: 0～+4dBm |
|
|
Transmission distance: 20KM |
|
|
Wavelength |
Tx1310nm, Rx 1490nm |
|
Optical interface |
SC/UPC connector |
|
LAN interface |
4*10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector |
|
USB interface |
USB 3.0, Transmission Rate: 4.8Gbps |
|
Wi-Fi interface |
Compliant with IEEE802.11b/g/n/ac |
|
2.4GHz Operating frequency: 2.400-2.483GHz (Wi-Fi 4) |
|
|
5.0GHz Operating frequency: 5.150-5.825GHz (Wi-Fi 5 wave 2) |
|
|
WiFi:4*4 MIMO,5dBi antenna, rate up to 1.167Gbps, Multiple SSID |
|
|
TX power: 11n--22dBm/11ac--24dBm |
|
|
Operating Environment |
Temperature: 0℃～+50℃ |
|
Humidity: 10%～90%（non-condensing） |
|
|
Storing Environment |
Temperature: -30℃～+60℃ |
|
Humidity: 10%～90%（non-condensing） |
|
|
Power Supply |
DC 12V/1.5A,12W |
|
Dimension |
178mm×120mm×30m(L×W×H) |
|
Net weight |
0.42kg |
|
Software Key Feature |
|
|
Management Mode |
OAM/OMCI, Telnet, WEB, TR069 |
|
Data Service Functions |
Full speed non-blocking switching |
|
2K MAC address table |
|
|
64 full range VLAN ID |
|
|
Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc |
|
|
Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc |
|
|
Support auto polarity detection of Ethernet ports (AUTO MDIX) |
|
|
Integrated IEEE802.1p QoS with four level priority queues |
|
|
Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy |
|
|
Support bridge, router and bridge/router mixed mode |
|
|
IP address assignment: dynamic PPPoE/DHCP Client and static IP |
|
|
Wi-Fi Service Functions |
Integrated 802.11b/g/n/ac (WIFI5) protocol. |
|
Authentication: WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) |
|
|
Modulation type: DSSS, CCK and OFDM |
|
|
Encoding scheme: BPSK, QPSK,16QAM and 64QAM |
|
Order Information
|
Product model |
Product specification |
|
PU3320-4GAC |
GPON ONU, 1*GPON Port,4*GE Ports and IEEE 802.11b/g/n/ac Wi-Fi. |
