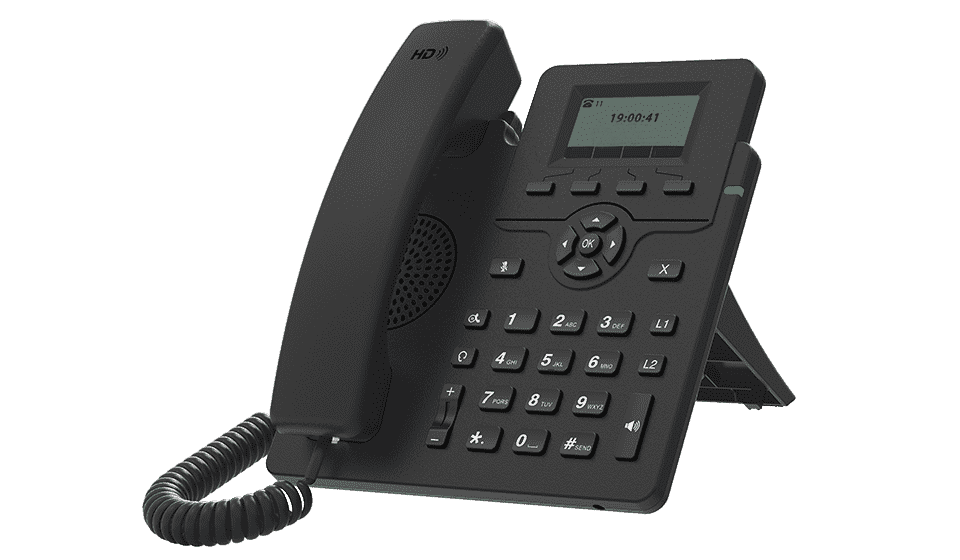

VEP360P IP Phone

Maipu VEP360P IP Phone is an entry-level, multifunctional HD IP voice phone that is easy to use and offers excellent cost-performance, making it suitable for various environments. It features superior HD voice quality and a rich set of telephony system functions, fully meeting the needs of small to medium-sized enterprises, call centers, and industry users.

The VEP360P SIP phone features a 132x64 pixel graphical LCD screen, offering easy installation, simple configuration, and user-friendliness. It supports two SIP accounts and five-way conferencing, delivering a wide range of business functions when seamlessly integrated with an IPPBX. Additionally, programmable keys and advanced features help users save operation time, enabling efficient and effortless office work.

The Maipu VEP360P IP Phone also supports PoE for power supply.

(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)

Product Features

- Two SIP Accounts

- HD Voice Quality

- 2.3” 132 x 64 Pixel Graphical LCD

- Five-Way Voice Conferencing

- Perfectly Compatible with Platforms Such as 3CX, Asterisk, and BroadSoft

- Supports External EHS Wireless Headsets (Plantronics, Jabra, Sennheiser)

- PoE Power Supply

Product Specifications

Product Model		VEP360P
Hardware specification
Screen		2.3” 132x64 Pixel Graphical LCD screen
Handset Port		4P4C, RJ9
Headset Port		4P4C, RJ9
Network Port		2*10/100M RJ45
Installation		Wall Mountable
Dimension(WDH)mm		Without foot stand: 18019236
Weight		Device: 370g Foot stand: 60g
Input Voltage		DC 5V1A PoE：IEEE 802.3af
Temperature		0℃ to 40℃
Humidity		10%～95%, non-condensing
Software Specification
Phone Functions	Call Management		Call Waiting, Call Hold, Call Transfer, Call Forward (Busy/Consultative)
			Auto Redial, Manual Redial, Callback, Auto Answer, Do Not Disturb, Mute
			Five-way Conferencing
	Configuration		Volume Adjustment, Ringtone Settings
			Configurable Ringing Mode
			Speed Dial, Hotline
	Other Features		Daylight Saving Time
			IP Address Call
			Dial Plan
			Keypad Lock
			XML Browser
			Action URL/URI
	Phonebook		Phonebook supports 1000 entries, Blacklist supports 100 entries, Call Logs supports 100 entries
			Supports up to 5 Remote Phonebook URLs
			LDAP
	Language		Supports Multiple Languages
			Peer-to-Peer Call
IPPBX Features	Message		Short Message, Voicemail, MWI (Message Waiting Indicator)
	Call Handling		Call Park, Intercom, Multicast
			Call Pickup, Group Call Pickup
	Privacy		Anonymous Call, Anonymous Call Rejection
Voice Media	HD Voice		HD Voice
	Audio Codecs		Wideband Audio Codecs: G.722, OPUS-WB
			Narrowband Audio Codecs: PCMA, PCMU, G.729, G723, G726, AMR, OPUS, iLBC
	Audio Processing		Echo Cancellation/Dynamic Jitter Buffer
			Voice Activity Detection (VAD)
			Comfort Noise Generation (CNG)
			Full-Duplex Hands-Free
Network Features	SIP		SIP V1 (RFC2543), V2 (RFC3261)
			SIP TLS, SRTP Encryption
	Protocols		TCP/IP/UDP
			RTP/RTCP, RFC2198, RFC1889
			ARP/RARP/ICMP/NTP/DHCP
			DNS SRV/A Query/NATPR Query
	Security		STUN, Session Timers (RFC4028)
			DTMF Modes: In-Band, RFC2833, SIP INFO
	Network Services		LLDP
			TFTP/FTP/HTTP/HTTPS Protocols
			802.1Q VLAN
			802.1X
	VPN		Open VPN
Management and Maintenance	Provisioning		Auto Provision/Upgrade: FTP/TFTP/HTTP/HTTPS/PnP
	Configuration		HTTP/HTTPS Web Configuration
			Configuration via Phone Keypad
	Monitoring		SNMP
			TR069
			Network Packet Capture
	Time Management		NTP Time Synchronization
			Daylight Saving Time
	Upgrade		Software Upgrade via Web
	Logs		Syslog
	Backup/Restore		Configuration Backup/Restore

Open



Order Information

Model	Description
VEP360P Series
VEP360P	VEP360P IP Phone,2*10/100M Ethernet Ports, POE enable, 2 SIP lines, 2.3” Graphical LCD
