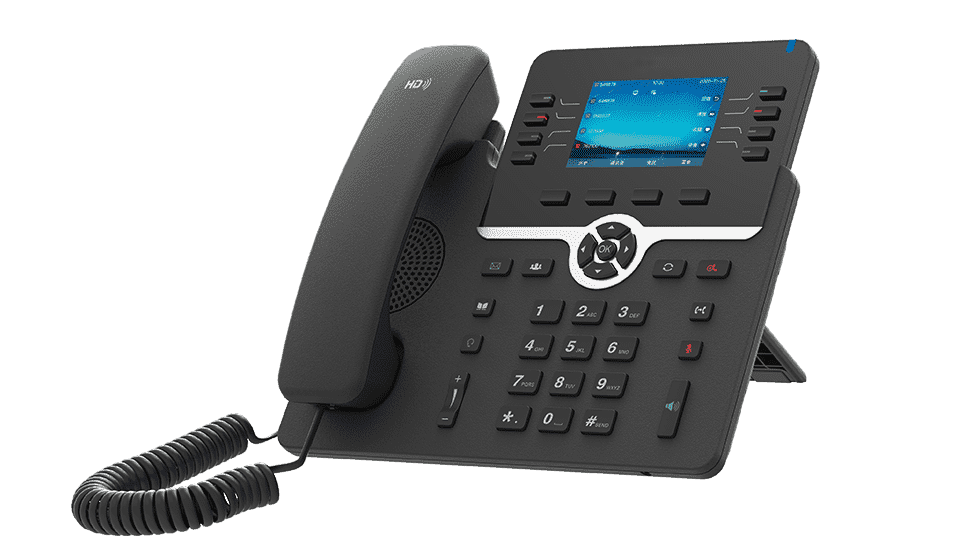

VEP366P IP Phone
The Maipu VEP366P is a multifunctional HD IP voice phone designed specifically for high-end business professionals. It features an elegant appearance and excellent performance, making it suitable for various IP voice phone systems. The C66 series boasts a 4.3-inch backlit color LCD display with a maximum resolution of 480x272, providing users with a superior visual experience along with excellent HD voice quality and a rich set of telephony call functions to meet diverse user needs.
The Maipu VEP366P SIP phone is equipped with dual gigabit Ethernet ports, offering easy installation, simple configuration, and user-friendliness. It supports 20 SIP accounts and six-way conferencing, delivering a wide range of call functions through seamless integration with IPPBX systems.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
- Twenty SIP Accounts
- HD Voice Quality
- 4.3” Color Display
- Dual Gigabit Ethernet Ports
- Supports External EHS Wireless Headsets (Plantronics, Jabra, Sennheiser)
Product Specifications
|
Product Model |
VEP366P |
||
|
Hardware specification |
|||
|
Screen |
4.3” 480×272 Pixel Graphical Backlight LCD screen |
||
|
Handset Port |
4P4C, RJ9 |
||
|
Headset Port |
4P4C, RJ9 |
||
|
USB Port |
1*USB 2.0 |
||
|
Extension Board Port |
6P6C, RJ12 |
||
|
Network Port |
2*10/100/1000M RJ45 |
||
|
Installation |
Wall mountable |
||
|
Dimension(W*D*H)mm |
Without foot stand: 238*223*42 With foot stand: 238*223*168 |
||
|
Weight |
Device: 700g Foot stand: 60g |
||
|
Input Voltage |
DC 5V1A PoE：IEEE 802.3af |
||
|
Temperature |
0℃ to 40℃ |
||
|
Humidity |
10%～95%, non-condensing |
||
|
Software Specification |
|||
|
Phone Functions |
Account |
20 SIP accounts |
|
|
Call Management |
Call Waiting |
||
|
Call Transfer |
|||
|
Busy Transfer/Consultative Transfer |
|||
|
Call Hold, Mute, Do Not Disturb |
|||
|
Speed Dial, Hotline |
|||
|
Redial, Callback |
|||
|
Auto Redial, Auto Answer |
|||
|
Configuration |
IP Address Call |
||
|
Dial Plan |
|||
|
Six-way Conferencing |
|||
|
Volume Adjustment |
|||
|
Configurable Ringing Mode |
|||
|
Other Features |
XML Browser |
||
|
Action URL/URI |
|||
|
Keypad Lock |
|||
|
Phonebook |
Phonebook: 1000 entries |
||
|
Blacklist: 100 entries |
|||
|
Call Logs: 100 entries |
|||
|
Supports up to 5 Remote Phonebook URLs |
|||
|
Directory Services |
LDAP |
||
|
Language |
Supports Multiple Languages |
||
|
Connection |
Peer-to-Peer Call |
||
|
USB 2.0 Interface: Bluetooth Headset, WIFI functionality |
|||
|
USB Recording |
|||
|
Supports external EHS wireless headsets (Plantronics, Jabra, Sennheiser) |
|||
|
IPPBX Features |
Message |
Short Message, Voicemail, MWI (Message Waiting Indicator) |
|
|
Call Handling |
Call Hold Music, Intercom |
||
|
Call Pickup, Group Call Pickup |
|||
|
Privacy |
Anonymous Call, Anonymous Call Rejection |
||
|
Voice Media |
HD Voice |
HD Voice |
|
|
Audio Codecs |
Wideband Audio Codecs: G.722, OPUS-WB |
||
|
Narrowband Audio Codecs: PCMA, PCMU, G.729, G723, G726, AMR, OPUS, iLBC |
|||
|
Audio Processing |
Echo Cancellation/Dynamic Jitter Buffer |
||
|
Voice Activity Detection (VAD) |
|||
|
Comfort Noise Generation (CNG) |
|||
|
Full-Duplex Hands-Free |
|||
|
Network Features |
SIP |
SIP V1 (RFC2543), V2 (RFC3261) |
|
|
SIP TLS, SRTP Encryption |
|||
|
Protocols |
TCP/IP/UDP |
||
|
RTP/RTCP, RFC2198, RFC1889 |
|||
|
ARP/RARP/ICMP/NTP/DHCP |
|||
|
DNS SRV/A Query/NATPR Query |
|||
|
Security |
STUN, Session Timers (RFC4028) |
||
|
DTMF Modes: In-Band, RFC2833, SIP INFO |
|||
|
Network Services |
LLDP |
||
|
TFTP/FTP/HTTP/HTTPS Protocols |
|||
|
802.1X |
|||
|
VPN |
Open VPN |
||
|
Management and Maintenance |
Provisioning |
Auto Provision/Upgrade: FTP/TFTP/HTTP/HTTPS/PnP |
|
|
Configuration |
HTTP/HTTPS Web Configuration |
||
|
Configuration via Phone Keypad |
|||
|
Monitoring |
SNMP |
||
|
TR069 |
|||
|
Network Packet Capture |
|||
|
Time Management |
NTP Time Synchronization |
||
|
Daylight Saving Time |
|||
|
Upgrade |
Software Upgrade via Web |
||
|
Logs |
Syslog |
||
|
Backup/Restore |
Configuration Backup/Restore |
||
Order Information
|
Model |
Description |
|
VEP366P Series |
|
|
VEP366P |
VEP366P IP Phone, 2*100/1000M Ethernet Ports, POE enable, 1*USB2.0, 16 SIP lines, 4.3'' color screen |
