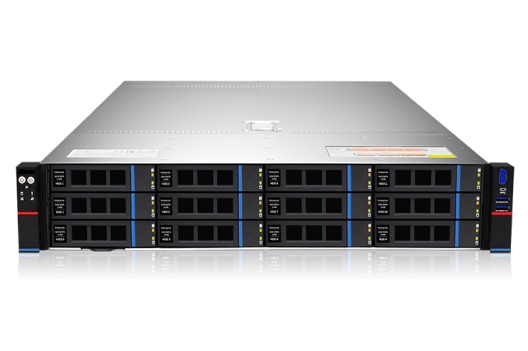

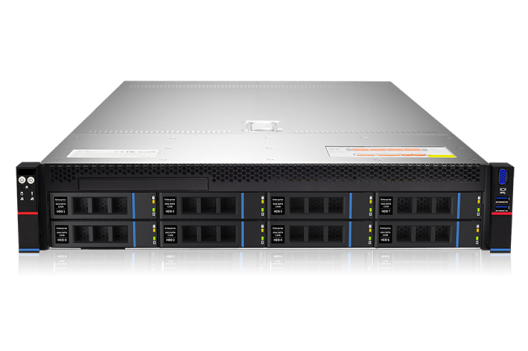

Maipu MPS201 Series Rack Server
Maipu MPS201 is a high-end 2U dual-socket server, supporting 1 or 2 1st/2nd generation Intel® Xeon® Scalable processors, 24*DIMM DDR4 memory slots, supports 2*M.2 interfaces, 2*RJ45 Ethernet ports, 1*RJ45 management port, and 11*PCIe 3.0 expansion slots. It is suitable for virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise markets, or telecommunications business applications, and more.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com）
Product Features
. Supports 1 or 2 1st/2nd generation Intel® Xeon® Scalable processors, with a maximum TDP of 205W
. Supports a maximum of 24*DDR4 memory slots, with memory frequencies of 2400/2666/2933MHz
. 2* built-in NVMe PCIe 3.0 M.2 interfaces.
. Modular design, allowing various combinations of PCIe and hard drive options.
. Up to 11*PCIe expansions, with optional support for 2 double-width, full-height, full-length GPU cards.
Product Specifications
|
Product Model |
MPS201D08R-NV |
MPS201D08R |
MPS201D12R-NV |
|
Form Factor |
2U 8*U.2 Direct-Connect Server |
2U 08*SATA/SAS Direct-Connect Server |
2U 12*U.2 Direct-Connect Server |
|
External Hard Drive |
Front: support 8*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2*2×3.5-inch hard drive modules or 2*2×2.5-inch hard drive modules |
Front: support 8*hot-swappable 3.5/2.5-inch SAS/SATA hard drives Rear: optional support 2*2×3.5-inch hard drive modules or 2*2×2.5-inch hard drive modules |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2*2×3.5-inch hard drive modules or 2*2×2.5-inch hard drive modules |
|
Product Model |
MPS201D12RE |
MPS201D12R |
MPS201D25RE |
|
Form Factor |
2U 12*SATA/SAS Expansion Server |
2U 12*SATA/SAS Direct-Connect Server |
2U 25*SATA/SAS Expansion Server |
|
External Hard Drive |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA hard drives Rear: optional support 2*2×3.5-inch hard drive modules or 2*2×2.5-inch hard drive modules |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA hard drives Rear: optional support 2*2×3.5-inch hard drive modules or 2*2×2.5-inch hard drive modules |
Front: support 25*hot-swappable 2.5-inch SAS/SATA hard drives Rear:optional support 2*2×3.5-inch hard drive modules or 2*2×2.5-inch hard drive modules |
|
System Size |
748*433*87.6mm (Depth*Width*Height) |
||
|
Processor |
Supports 1 or 2 1st/2nd generation Intel® Xeon® Scalable processors, with a maximum TDP of 205W |
||
|
Memory |
24*DDR4 memory slots, supporting DDR4 LRDIMM/RDIMM 2400/2666/2933MHz memory |
||
|
Internal Storage Interface |
3*Mini SAS HD interfaces, 2*SATA DOM interfaces, 2*NVMe PCIe 3.0 M.2 interfaces (size 2280) |
||
|
External Ports & Buttons |
Front: 1*VGA, 2*USB3.0, Rear: 1*VGA, 2*RJ45 Gigabit Ethernet ports, 1*RJ45 Gigabit Management port, 1*COM port, 2*USB3.0 |
||
|
PCIe Expansion |
6*full-height PCIe slots, 4*half-height PCIe slots, 1*OCP 3.0 slots Riser1： 1*Full height PCIe 3.0 x16, 1* Full height PCIe 3.0 x8 3*Full height PCIe 3.0 x8 Riser2： 1*Full height PCIe 3.0 x16, 2* Full height PCIe 3.0 x8 3*Full height PCIe 3.0 x8 Riser3 ： 1*half height PCIe 3.0 x16 1*half height PCIe 3.0 x8, 1*half height PCIe 3.0 x8 (in x16 slot) Riser4 ： 1*half height PCIe 3.0 x8, 1*half height PCIe 3.0 x8 (in x16 slot) 1*half height PCIe 3.0 x16 OCP： 1*OCP 3.0(PCIe 3.0 x8) |
||
|
Security |
Support TPM Module (Optional) |
||
|
Power Supply |
Optional AC 220V 550W, 800W, 1300W, 1600W, 2000W, 2200W 1+1 redundant power supply(adapted to actual power requirements) |
||
|
FAN |
Standard 4 hot-swappable N+1 redundant fans, supporting 8038/8056 specifications |
||
|
IPMI |
IPMI 2.0 |
||
|
Management |
1*DC0 RJ45 Management Port |
||
|
Temperature |
Working Temperature 5℃–35℃ Short-term storage (≤72 hours): -40°C ～ 70°C Long-term storage (>72 hours): 20°C ～ 28°C |
||
|
Humidity |
Working Humidity 20%–80%RH non-condensing Short-term storage (≤72 hours): 20% ～ 90% RH (non-condensing, including packaging) Long-term storage (>72 hours): 30% ～ 70% RH (non-condensing, including packaging) |
||
:
