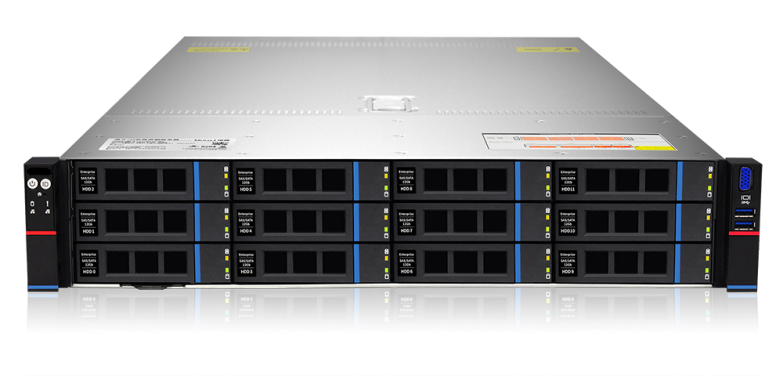

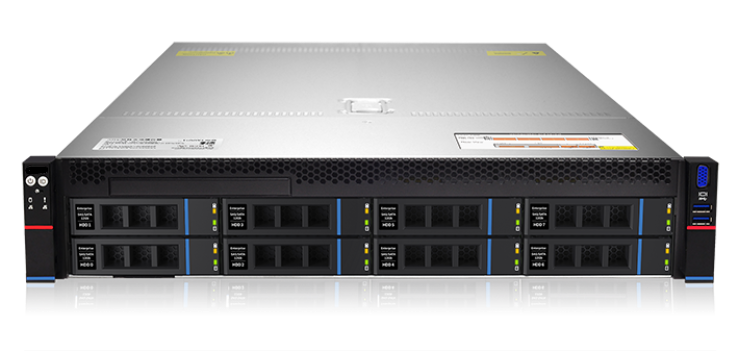

Maipu MPS201R-G2 Series Rack Server
Maipu MPS201R-G2 is a high-end 2U AMD dual-socket server, supporting AMD EPYC 9004 (Genoa) series processors, 25*DDR5 memory slots, supports 2*M.2 interfaces, 2*RJ45 Ethernet ports, 1*RJ45 management port, and 11*PCIe 3.0 expansion slots. It is suitable for virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise markets, or telecommunications business applications, and more.
Product Features
. Supports 1 or 2 AMD EPYC 9004 series processors
. Supports 32* RECC DDR4 memory slots, with memory maximum 3200MHz
. Modular design, allowing various combinations of PCIe and hard drive options.
. Up to 11*PCIe expansions, with optional support for 2 double-width, full-height, full-length GPU cards.
Product Specifications
|
Product Model |
MPS201RD08R-NV-G2 |
MPS201RD08R-G2 |
MPS201RD12R-NV-G2 |
|
Form Factor |
2U 8*U.2 Direct-Connect Server |
2U 08*SATA/SAS Direct-Connect Server |
2U 12*U.2 Direct-Connect Server |
|
External Hard Drive |
Front: support 8*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2*2×2.5-inch SAS/SATA or U.2 hard drive modules |
Front: support 8*hot-swappable 3.5/2.5-inch SAS/SATA hard drives Rear: optional support 2*2×2.5-inch SAS/SATA or U.2 hard drive modules |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2*2×2.5-inch SAS/SATA or U.2 hard drive modules |
|
Product Model |
MPS201RD12RE-G2 |
MPS201RD12R-G2 |
MPS201RD25RE-G2 |
|
Form Factor |
2U 12*SATA/SAS Expansion Server |
2U 12*SATA/SAS Direct-Connect Server |
2U 25*SATA/SAS Expansion Server |
|
External Hard Drive |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA hard drives Rear: optional support 2*2×2.5-inch SAS/SATA or U.2 hard drive modules |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA hard drives Rear: optional support 2*2×2.5-inch SAS/SATA or U.2 hard drive modules |
Front: support 25*hot-swappable 2.5-inch SAS/SATA hard drives Rear: optional support 2*2×2.5-inch SAS/SATA or U.2 hard drive modules |
|
System Size |
748*433*87.6mm (Depth*Width*Height) |
||
|
Processor |
Supports 1 or 2 AMD EPYC 9004 series (Genoa) processors |
||
|
Memory |
24*DDR5 memory slots, supporting DDR5 RDIMM 4400/4800MHz memory |
||
|
Internal Storage Interface |
3*Mini SAS HD interfaces, 4*SATA interfaces (2 of them support SATA DOM), 2*NVMe M.2 interfaces (size 2280) |
||
|
External Ports & Buttons |
Front: 1*VGA, 2*USB3.0, Rear: 1*VGA, 2*RJ45 Gigabit Ethernet ports, 1*RJ45 Gigabit Management port, 1*COM port, 2*USB3.0 |
||
|
PCIe Expansion |
6*full-height PCIe slots, 4*half-height PCIe slots, 1*OCP 3.0 slots Riser1/2： 1* PCIe x 16 or 1* PCIe x 16, 2* PCIe x 8 or 2* PCIe x16 Riser3: 2* PCIe x 8 or 1* PCIe x16 Riser4: 1* PCIe x 16 or 2* PCIe x8 OCP: 1*OCP 3.0 |
||
|
Security |
Support TPM Module (Optional) |
||
|
Power Supply |
Optional AC 220V 550W、800W、1300W、1600W、2000W、2200W 1+1 redundant power supply(adapted to actual power requirements) |
||
|
FAN |
Standard 4 hot-swappable N+1 redundant fans, supporting 8038/8056 specifications |
||
|
IPMI |
IPMI 2.0 |
||
|
Management |
1*DC0 RJ45 Management Port |
||
|
Temperature |
Working Temperature 5℃–35℃ Short-term storage (≤72 hours): -40°C ～ 70°C Long-term storage (>72 hours): 20°C ～ 28°C |
||
|
Humidity |
Working Humidity 20%–80%RH non-condensing Short-term storage (≤72 hours): 20% ～ 90% RH (non-condensing, including packaging) Long-term storage (>72 hours): 30% ～ 70% RH (non-condensing, including packaging) |
||
:
