Maipu MPS201RS Series Rack Server
Maipu MPS201RS is a standard 2U AMD dual-socket server, supporting AMD EPYC 7003 (Milan) series, 7002 (Rome) series and 7001 (Naples) series processors, 16*DIMM DDR4 memory slots, supports 1*M.2 interfaces, 2*RJ45 Ethernet ports, 1*RJ45 management port, and 10*PCIe 4.0/3.0 expansion slots. It is suitable for virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise markets, or telecommunications business applications, and more.
Product Features
. Supports 1 or 2 AMD EPYC 7003/ 7002/ 7001 series processors
. Multi-modular rear window to meet multi-combination needs
. 10*PCIe high-speed expansion slots to provide rich expansion performance
. 2*full-height, double-width high-performance GPU cards to meet the needs of high computing power
. 16*RECC DDR4 memory slots, the maximum frequency supports 2933MHz
Product Specifications
|
Product Model |
MPS201RSD08R |
MPS201RSD08R-NV |
MPS201RSD12RE |
MPS201RSD12RE-NV |
|
Form Factor |

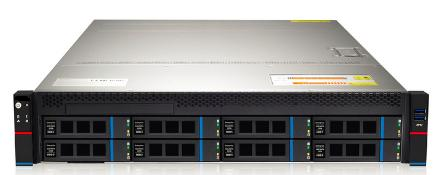

2U 8*SATA/SAS Direct-Connect Server |
2U 8*SATA/SAS Direct-Connect Server |

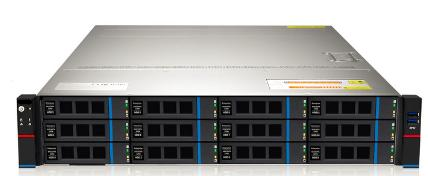

2U 12*SATA/SAS Expansion Server |
2U 12*SATA/SAS Expansion Server |
|
External Hard Drive |
Front: support 8*hot-swappable 3.5/2.5-inch SAS/SATA hard drives Rear: optional support 2×2.5-inch SAS/SATA/U.2 hard drive modules |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2×2.5-inch SAS/SATA/U.2 hard drive modules |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA hard drives Rear: optional support 2×2.5-inch SAS/SATA/U.2 hard drive modules |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2×2.5-inch SAS/SATA/U.2 hard drive modules |
|
System Size |
695*433*87.6mm (Depth*Width*Height) |
|||
|
Processor |
Supports 1 or 2 AMD EPYC 7003 series (Milan) processors; *Compatible with AMD EPYC 7002 series (Rome) and AMD EPYC 7001 series (Naples) |
|||
|
Memory |
16*DDR4 memory slots, supporting DDR4 LRDIMM/RDIMM 2133/2400/2666/2933MHz memory The maximum capacity is 256GB per single memory, and the whole server supports maximum 4TB |
|||
|
Internal Storage Interface |
2*Mini SAS HD interfaces, 1*NVMe PCIe 3.0*4 interfaces |
|||
|
External Ports & Buttons |
Front: 1*VGA, 2*USB3.0, Rear: 1*VGA, 2*RJ45 Gigabit Ethernet ports, 1*RJ45 Gigabit Management port, 1*COM port, 2*USB3.0 |
|||
|
PCIe Expansion |
Form 1: 2*full-height, double-width， 2*half-height PCIe slots Form 2: 10*PCIe half-height slots Form 3: 1*full-height, double-width， 9*half-height PCIe slots Form 4: 1*full-height, double-width, 3*half-height PCIe slots |
|||
|
Security |
Support TPM Module (Optional) |
|||
|
Power Supply |
Optional AC 220V 550W、800W、1300W、1600W、2200W 1+1 redundant power supply(adapted to actual power requirements) |
|||
|
FAN |
Standard 4 hot-swappable N+1 redundant fans, supporting 8038/8056 specifications |
|||
|
IPMI |
IPMI 2.0 |
|||
|
Management |
1*DC0 RJ45 Management Port |
|||
|
Temperature |
Working Temperature 5℃–35℃ Short-term storage (≤72 hours): -40°C ～ 70°C Long-term storage (>72 hours): 20°C ～ 28°C |
|||
|
Humidity |
Working Humidity 20%–80%RH non-condensing Short-term storage (≤72 hours): 20% ～ 90% RH (non-condensing, including packaging) Long-term storage (>72 hours): 30% ～ 70% RH (non-condensing, including packaging) |
|||
:
