Maipu MPS201S Series Rack Server
Maipu MPS201S is a standard 2U dual-socket server, supporting 1 or 2 1st/2nd generation Intel® Xeon® Scalable processors, 16*DIMM DDR4 memory slots, supports 1*M.2 interfaces, 2*RJ45 Ethernet ports, 1*RJ45 management port, and 6*PCIe 3.0 expansion slots. It is suitable for virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise markets, or telecommunications business applications, and more.
Product Features
. Supports 1 or 2 1st/2nd generation Intel® Xeon® Scalable processors
. Supports a maximum of 16*DDR4 memory slots, with memory frequencies of 2400/2666/2933MHz
. 1* built-in NVMe PCIe 3.0 M.2 interfaces
. Up to 6*PCIe expansions
Product Specifications
|
Product Model |
MPS201SD08R |
MPS201SD12RE |
MPS201SD25RE |
|
Form Factor |

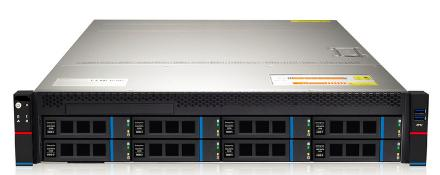

2U 8*SATA/SAS Direct-Connect Server |

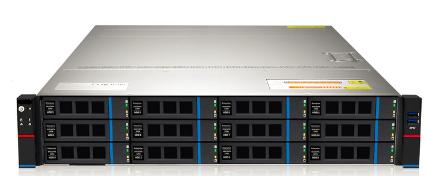

2U 12*SATA/SAS Expansion Server |
2U 25*SATA/SAS Expansion Server |
|
External Hard Drive |
Front: support 8*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2×2.5-inch SAS/SATA/U.2 hard drive modules |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2×2.5-inch SAS/SATA/U.2 hard drive modules |
Front: support 25*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2×2.5-inch SAS/SATA/U.2 hard drive modules |
|
System Size |
695*433*87.6mm (Depth*Width*Height) |
||
|
Processor |
Supports 1 or 2 1st/2nd generation Intel® Xeon® Scalable processors |
||
|
Memory |
16*DDR4 memory slots, supporting DDR4 LRDIMM/RDIMM 2400/2666/2933MHz memory |
||
|
Internal Storage Interface |
3*Mini SAS HD interfaces, 2*SATA DOM interfaces, 1*NVMe PCIe 3.0*4 interfaces, 2*Slimline 4i interfaces |
||
|
External Ports & Buttons |
Front: 2*USB 3.0, 1*Power button, 1*Reset button, 1*Hard disk indicator, 1*System fault indicator, 2*Network status indicators Rear: 1*VGA, 2*RJ45 Gigabit Ethernet ports, 1*RJ45 Gigabit Management port, 1*COM port, 2*USB3.0, 2*USB2.0 |
||
|
PCIe Expansion |
4*half height PCIe 3.0 x16 , 2*half height PCIe 3.0 x8 |
||
|
Security |
Support TPM Module (Optional) |
||
|
Power Supply |
Optional AC 220V 550W、800W、1300W、1600W 1+1 redundant power supply(adapted to actual power requirements) |
||
|
FAN |
Standard 3 (Max 4) hot-swappable N+1 redundant fans, supporting 8038/8056 specifications |
||
|
IPMI |
IPMI 2.0 |
||
|
Management |
1*DC0 RJ45 Management Port |
||
|
Temperature |
Working Temperature 5℃–35℃ Short-term storage (≤72 hours): -40°C ～ 70°C Long-term storage (>72 hours): 20°C ～ 28°C |
||
|
Humidity |
Working Humidity 20%–80%RH non-condensing Short-term storage (≤72 hours): 20% ～ 90% RH (non-condensing, including packaging) Long-term storage (>72 hours): 30% ～ 70% RH (non-condensing, including packaging) |
||
:
