Maipu MPS201S-G3 Series Rack Server
Maipu MPS201S-G3 is a standard 2U dual-socket server, supporting 1 or 2 3rd generation Intel® Xeon® Scalable processors, 16*DIMM DDR4 memory slots, supports 1*M.2 interfaces, 2*RJ45 Ethernet ports, 1*RJ45 management port, and 10*PCIe expansion slots. It is suitable for virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise markets, or telecommunications business applications, and more.
Product Features
. Supports 1 or 2 3rd generation Intel® Xeon® Scalable processors, with a maximum TDP of 205W
. Supports a maximum of 16*DDR4 memory slots, with memory frequencies of 2666/2933/3200MHz
. 1* built-in NVMe PCIe 3.0 M.2 interfaces
. Up to 10*PCIe high-speed expansion slots, providing rich expansion performance
. 10*half-height high-performance GPUs or 2*full-height, double-width high-performance GPUs to meet the needs of high computing power
Product Specifications
|
Product Model |
MPS201SD08R-G3 |
MPS201SD12RE-G3 |
|
Form Factor |

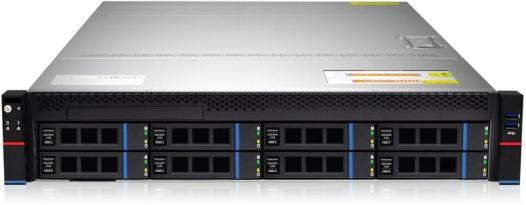

2U 8*SATA/SAS Direct-Connect Server |

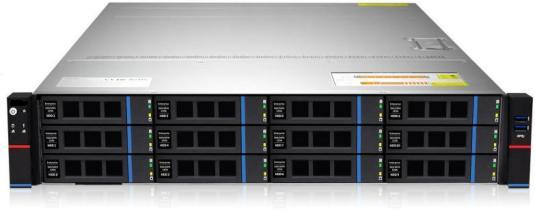

2U 12*SATA/SAS Expansion Server |
|
External Hard Drive |
Front: support 8*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2×2.5-inch SAS/SATA/U.2 hard drive modules |
Front: support 12*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives Rear: optional support 2×2.5-inch SAS/SATA/U.2 hard drive modules |
|
System Size |
695*433*87.6mm (Depth*Width*Height) |
|
|
Processor |
Supports 1 or 2 3rd generation Intel® Xeon® Scalable processors |
|
|
Memory |
16*DDR4 memory slots, supporting DDR4 LRDIMM/RDIMM 2666/2933/3200MHz memory |
|
|
Internal Storage Interface |
3*Mini SAS HD interfaces, 2*SATA DOM interfaces, 1*NVMe PCIe 3.0*4 interfaces |
|
|
External Ports & Buttons |
Front: 2*USB 3.0, 1*Power button, 1*Reset button, 1*Hard disk indicator, 1*System fault indicator, 2*Network status indicators Rear: 1*VGA, 2*RJ45 Gigabit Ethernet ports, 1*RJ45 Gigabit Management port, 1*COM port, 2*USB3.0 |
|
|
PCIe Expansion |
10*PCIe half-height version: Support 6*half-height PCIe 3.0x8 (in PCIe 3.0 x16 slot), 1*half-height PCIe 3.0x16 and 3*half-height PCIe 4.0x16; Optional support for 4*half-height PCIe 3.0x8 (in PCIe 3.0 x16 slot), 2*half-height PCIe 3.0x16, and 3*half-height PCIe 4.0x16
7*PCIe half-height version: Support 4*half-height PCIe 3.0x8 (in PCIe 3.0 x16 slot) and 3*half-height PCIe 4.0x16; Optional support for 2*half-height PCIe 3.0x8 (in PCIe 3.0 x16 slot), 1*half-height PCIe 3.0x16, and 3*half-height PCIe 4.0x16
1*PCIe full-height, double-width version: Support 1*full-height, double-width PCIe3.0 x16, 6*half-height PCIe 3.0x8 (in PCIe x16 slot), 1*half-height PCIe 3.0x16 and 2*half-height PCIe 4.0x16
2*PCIe full-height, double-width version: Support 1*full-height, double-width PCIe4.0 x16, 1*full-height, double-width PCIe3.0 x16 and 3*half-height PCIe x8 |
|
|
Security |
Support TPM Module (Optional) |
|
|
Power Supply |
Optional AC 220V 550W、800W、1300W、1600W 1+1 redundant power supply(adapted to actual power requirements) |
|
|
FAN |
Standard 4 hot-swappable N+1 redundant fans, supporting 8038/8056 specifications (7PCIe version: 3* 8038/8056 hot-swap fans) |
|
|
IPMI |
IPMI 2.0 |
|
|
Management |
1*DC0 RJ45 Management Port |
|
|
Temperature |
Working Temperature 5℃–35℃ Short-term storage (≤72 hours): -40°C ～ 70°C Long-term storage (>72 hours): 20°C ～ 28°C |
|
|
Humidity |
Working Humidity 20%–80%RH non-condensing Short-term storage (≤72 hours): 20% ～ 90% RH (non-condensing, including packaging) Long-term storage (>72 hours): 30% ～ 70% RH (non-condensing, including packaging) |
|
:
