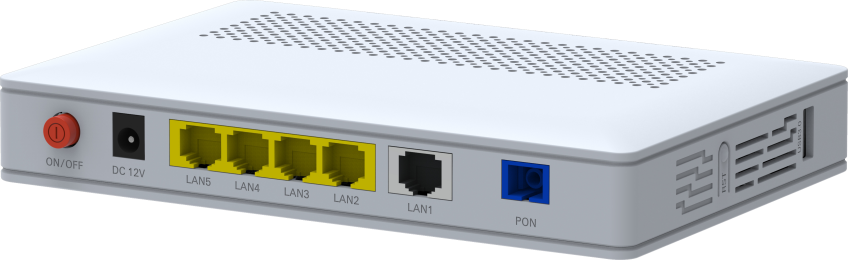

Maipu PU3320-1X4G XGSPON HGU
The 10G PON ONT PU3320-1X4G developed by Maipu supports dual modes including XG-PON/XGS-PON, providing multiple rate Ethernet ports of 10GE/GE. It enables fast and stable networking for multiple devices, ensuring a seamless user experience within homes and effortlessly meeting the demands of 4K/8K, VR, and other services. It offers home and enterprise users an ultimate experience of 10G ultra-high-speed internet connection.
PU3320-1X4G provides 1*XG(S)PON Port,1*10GE Port,4*GE Ports and 1*USB3.0 Port.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com）
Product Specifications
|
Hardware Specification |
|
|
PON interface |
10G PON port: Class B+ |
|
TX optical power: 8dBm |
|
|
RX sensitivity: -29.5dBm |
|
|
Overload optical power: -7dBm |
|
|
Transmission distance: 20km |
|
|
Wavelength |
XG(S)-PON:DS 1577nm/US 1270nm |
|
Optical interface |
SC single mode, SC/UPC connector |
|
LAN interface |
1*10GE, Auto-negotiation,RJ45 ports |
|
4*GE, Auto-negotiation,RJ45 ports |
|
|
1*USB3.0 |
|
|
USB interface |
USB 3.0, Transmission Rate: 4.8Gbps |
|
10G PON layer |
ITU-T G.987(XG-PON) |
|
ITU-T G.9807.1 (XGS-PON) |
|
|
Operating Environment |
Temperature: 0℃～+50℃ |
|
Humidity: 5%～90%（non-condensing） |
|
|
Storing Environment |
Temperature: -30℃～+60℃ |
|
Humidity: 5%～90%（non-condensing） |
|
|
Power Supply |
DC 12V/1A,12W |
|
Dimension |
180mm×120mm×34.5m(L×W×H) |
|
Indicators |
PWR, PON, LOS, WAN, LAN1~5, USB |
|
Software Key Feature |
|
|
O&M |
WEB/TELNET/OAM/OMCI/TR069 |
|
Support private OAM/OMCI protocol and Unified network management of Maipu OLT |
|
|
IP address assignment: dynamic PPPoE/DHCP Client and static IP |
|
|
Internet connection |
Support Bridge/Router mode |
|
Multicast |
IGMP v1/v2/v3, IGMP snooping |
|
MLD v1/v2 snooping |
|
|
L2 Features |
802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN |
|
L3 Features |
IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS |
|
Firewall |
Anti-DDOS, Filtering Based on ACL/MAC /URL |
