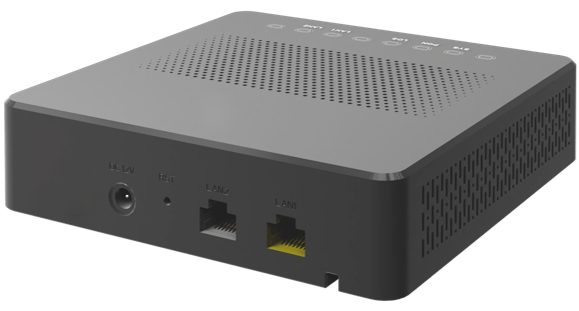

Maipu PU3320-1X1G XGSPON SFU
The 10G PON ONU PU3320-1X1G developed by Maipu supports dual modes including XG-PON/XGS-PON, providing multiple rate Ethernet ports of 10GE/GE. It can easily meet business needs such as 4K/8K and VR, and can provide home and enterprise users with the ultimate experience of 10G ultra-high-speed Internet connection. With tray-mounted fiber structure fiber design, it can be placed on a desktop or wall-mounted, adapting effortlessly to various scene styles.
PU3320-1X1G provides 1*XG(S)PON Port,1*10GE Port and 1*GE Ports.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com）
Product Specifications
|
Hardware Specification |
|
|
PON interface |
TX optical power: 6dBm |
|
RX sensitivity: -28dBm |
|
|
Overload optical power: -8dBm |
|
|
Transmission distance: 20km |
|
|
Wavelength |
XG(S)-PON:DS 1577nm/US 1270nm |
|
Optical interface |
SC single mode, SC/UPC connector |
|
LAN interface |
1*10GE, Auto-negotiation,RJ45 ports |
|
1*GE, Auto-negotiation,RJ45 ports |
|
|
USB interface |
USB 3.0, Transmission Rate: 4.8Gbps |
|
10G PON layer |
ITU-T G.987(XG-PON) |
|
ITU-T G.9807.1 (XGS-PON) |
|
|
Operating Environment |
Temperature: 0℃～+50℃ |
|
Humidity: 5%～90%（non-condensing） |
|
|
Storing Environment |
Temperature: -40℃～+70℃ |
|
Humidity: 5%～95%（non-condensing） |
|
|
Power Supply |
DC 12V/1A,12W |
|
Dimension |
140mm×140mm×34.5m(L×W×H) |
|
Indicators |
SYS, PON, LOS, LAN1, LAN2 |
|
Software Key Feature |
|
|
O&M |
WEB/TELNET/OAM/OMCI |
|
Support private OMCI protocol and Unified network management of Maipu OLT |
|
|
IP address assignment: dynamic PPPoE/DHCP Client and static IP |
|
|
Internet connection |
Support Bridge mode |
|
Alarm
|
Support Dying Gasp |
|
Support Port Loop Detect |
|
|
LAN |
Support Port rate limiting |
|
Support Loop detection |
|
|
Support Flow control |
|
|
Support Storm control |
|
|
VLAN |
Support VLAN tag mode |
|
Support VLAN transparent mode |
|
|
Support VLAN trunk mode |
|
|
Support VLAN hybrid mode |
|
|
Multicast |
IGMPv1/v2 Snooping |
|
Support multicast protocol VLAN and multicast data stripping |
|
|
Support multicast translation function |
|
|
QoS |
Support WRR、SP+WRR |
|
Firewall |
Support IP address and port filtering function |
|
Other |
Support log function |
