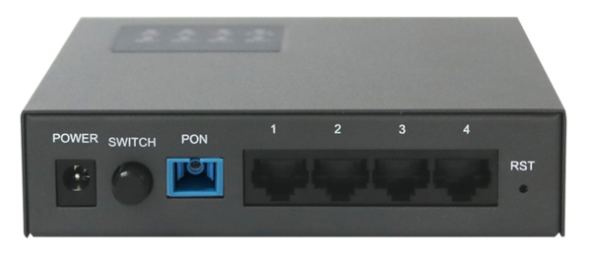

Maipu PU2300-4G/4GP GPON Industrial SFU
The PU2300-4G/4GP GPON industrial SFU is Gigabit intelligent terminal product developed by Maipu for government and enterprise multi-service network environments. This product complies with the GPON ITU-T G.9844/988 standards, ensuring excellent interoperability and operability.
The PU2300-4G/4GP GPON industrial SFU is developed using mature technology and open network standards, featuring a quasi-industrial design. It is suitable for environments with significant temperature fluctuations, offers strong electromagnetic interference resistance, and provides shock and vibration protection, meeting the requirements of various working conditions. This makes it an efficient, reliable, and fast solution for communication access.
PU2300-4G/4GP GPON industrial SFU include two models, PU2300-4G and PU2300-4GP.
PU2300-4G provides 1*GPON Port, 4*GE Ports.
PU2300-4GP provides 1*GPON Port, 4*GE PoE/PoE+ Ports.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com）
Product Features
. Optional support for PoE/PoE+ power supply with total power options of 65W/130W.
. Wide temperature design, stable operation in environments ranging from -40°C to 70°C.
. Supports simultaneous transmission of multiple services such as video, network, and broadcast.
. More than 4KV surge protection for ports and the power supply.
Product Specifications
|
Hardware Specification |
|||
|
GPON |
Optical Interfaces |
TX optical power: 0.5~5dBm |
|
|
RX sensitivity: ≤-30dBm |
|||
|
Transmission distance: 20km |
|||
|
Transmission Rate |
Uplink 1.25Gbps; Down 2.5Gbps |
||
|
Optical interface |
SC single mode, SC/UPC connector |
||
|
LAN interface |
PU2300-4G:4*GE, Auto-negotiation, RJ45 ports |
||
|
PU2300-4GP:4*GE, Auto-negotiation, RJ45 PoE/PoE+ ports |
|||
|
PoE/PoE+ |
IEEE802.3af/802.3at |
||
|
Operating Environment |
Temperature: -40℃～+70℃ |
||
|
Humidity: 5%～90%（non-condensing） |
|||
|
Storing Environment |
Temperature: -40℃～+85℃ |
||
|
Humidity: 5%～95%（non-condensing） |
|||
|
Power Supply |
External full voltage AC 90~264V |
||
|
Support PoE DC 48~57V |
|||
|
Power Consumption |
Full Load (Enable PoE) ≤125W；Ldle ≤2.5W |
||
|
Dimension |
125mm×120mm×31m(L×W×H) |
||
|
Weight |
PU2300-4G:0.75Kg |
||
|
PU2300-4GP:1Kg |
|||
|
Installation Mode |
Desktop |
||
|
Software Key Feature |
|||
|
Layer 2 Features |
MAC Addresses |
Supports up to 4K MAC addresses. |
|
|
VLAN |
- Port-based VLAN (IEEE 802.1Q) |
||
|
- VLAN conversion supported |
|||
|
- Supports up to 4096 VLAN entries |
|||
|
- Supports port isolation within the same VLAN |
|||
|
Ports |
- Bandwidth control supported |
||
|
- Supports port flow control |
|||
|
- Port mirroring supported |
|||
|
Security Features |
User Security |
- Supports MAC address authentication, binding to ports, and MAC address filtering. |
|
|
Device Security |
- Control layer protection against various DOS and CPU-targeted virus attacks. |
||
|
Network Security |
- Supports suppression of broadcast/multicast storms and provides security isolation between interfaces. |
||
|
QoS |
Flow Control |
- Backpressure flow control (half-duplex), IEEE 802.3x flow control (full-duplex). |
|
|
Port Rate Limiting and Traffic Classification |
- Supports advanced queue scheduling algorithms, including FIFO, SP, and WRR, based on ports, IEEE 802.1P, and CoS, as well as custom TCP/UDP ports. |
||
|
Multicast |
IGMP Snooping |
- Supports IGMP nooping. |
|
|
- Cross-VLAN multicast support. |
|||
|
Equipment Protection |
Lightning Protection |
- All ports support signal lightning protection 4kV. |
|
|
Power Surge Protection |
- Power supply supports surge protection 4kV. |
||
|
Maintenance & Management |
Network Maintenance |
- Web-based statistics on port inbound/outbound traffic. |
|
|
Equipment Management |
- Web-based configuration management and Telnet CLI supported. |
||
|
- Configuration file import/export for batch configurations. |
|||
