STR800 Series 4G Router
STR800-4S and STR800-4D is Maipu’s brand industrial design 4G router, applicable to the data transmission service under an environment that goes against the wired network. Adopt the 4G high-speed network as the data-bearing network to provide a safe and flexible connection. No matter where are you, your device can make use of a 4G network for internet connection. STR800 series 4G routers meet the requirements of the industry scenario. It has the features of low power consumption, small dimension, and lightweight. The operational temperature of the device can reach up to -25°C~+60°C. EMC is strict, so it is applicable to the strict and small industry environments such as energy, transportation, financial, and retail customers.

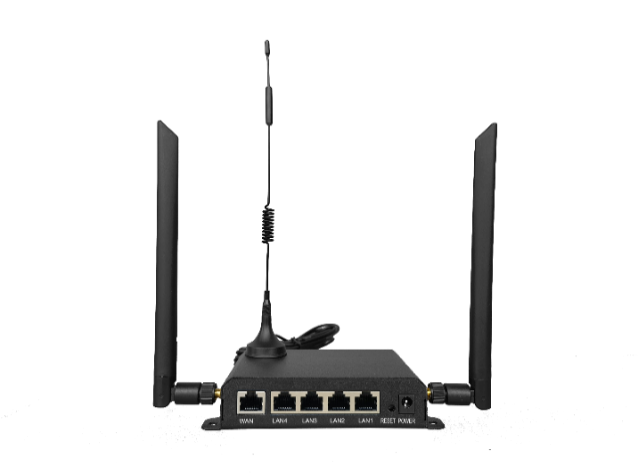

STR800-4S supports one 4G modems and dual SIM slots, which can realize active-backup failover working mode, if one SIM card occurs network issue, the router will switch to another SIM card for dialing.

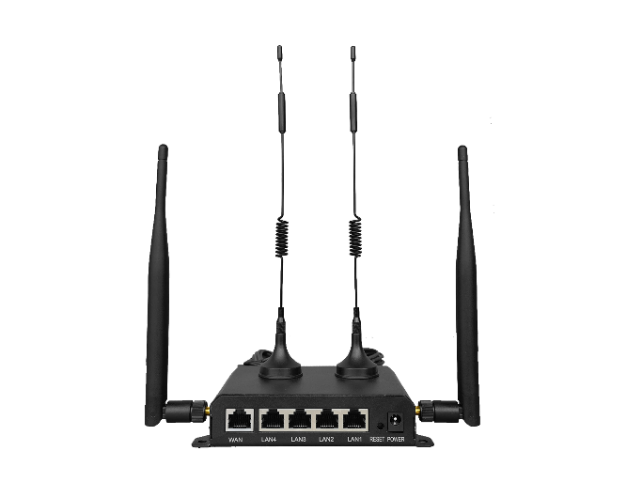

STR800-4D supports dual 4G modems and dual SIM slots, which can realize active-active failover working mode, both 4G links can be working at the same time.
STR800 series router provides an upgradeable 4G network platform. You can adopt the in-built 4G module to share the 4G network provided by the local mobile carriers, making your device to connect the high-speed Internet or enterprise private network.
STR800 series router has rich VPN functions and can be connected to a secure private channel of the enterprise based on the 4G network. Meanwhile, the device data can be transmitted in the secure IPsec / GRE / L2TP / OpenVPN / DMVPN tunnels, preventing the data from being accessed and tampered, with and providing higher security for the application over the Internet.
STR800-4S supports one 4G modem but two SIM cards from different mobile operators. Two SIM cards can work at active-backup mode. If one of the 4G links is working unstable, STR800-4S will try to dial through another SIM card.
STR800-4D supports dual 4G modems and two SIM cards from different mobile operators. Two SIM cards can work at active-active mode, both of the 4G modems can work at the same time, and the two 4G links auto-failover can be based on the signal strength and latency.
STR800 series 4G routers offer a comprehensive LTE solution for the industrial application over 4G mobile network, it can be managed by Maipu M2M cloud management platform, customers can remotely configure and monitor the router through this platform. This will greatly decrease the OPEX and increase the working efficiency.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
Visible Management
The STR800-4S provides a graphical user interface designed for convenient setup and control. Accessed via web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and 4G/WAN/LAN status. The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface.
The GUI Interface Management
The STR800-4S can be managed by Maipu IOM cloud platform, the platform can realized mass management. Customers can remote management ten thousands of industrial routers through internet. The IOM platform support user management, device management, configuration management, alarm management, report management, etc.

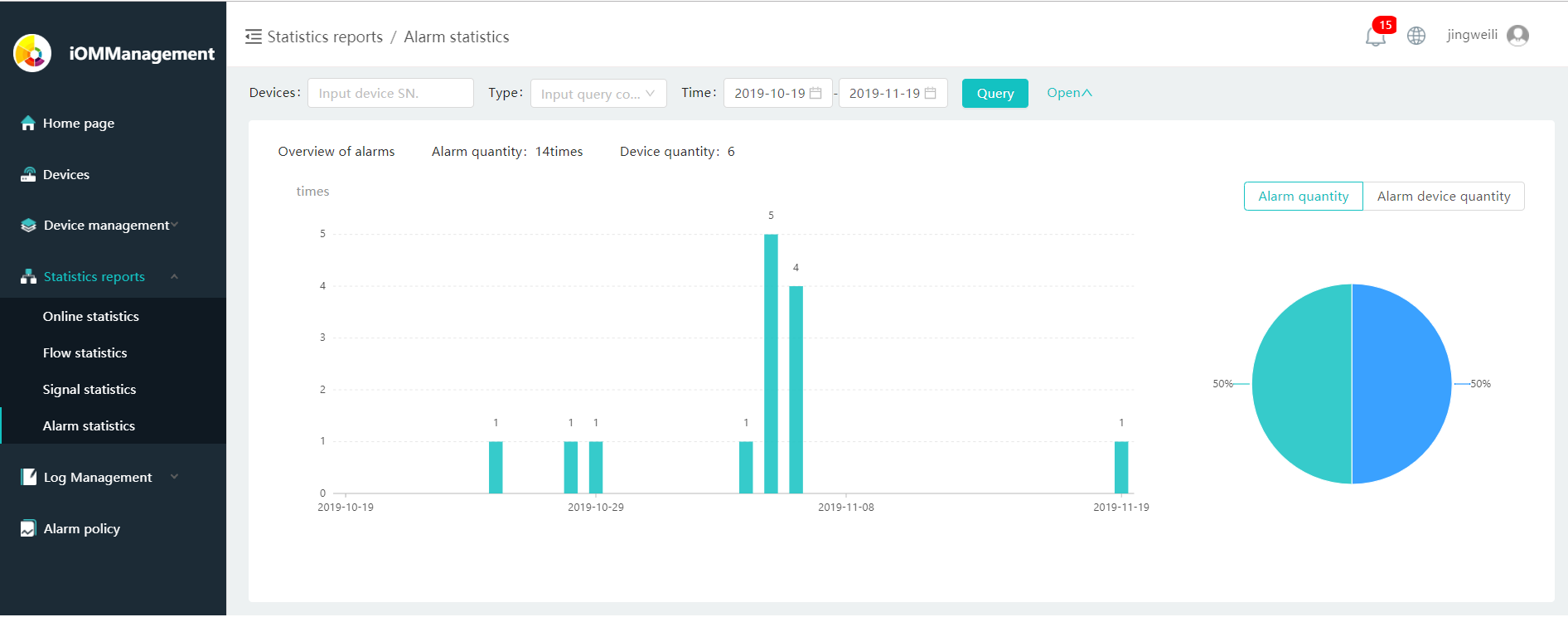

IOM Cloud Management Platform
Product Specifications
|
Product Series |
STR800 4G Router Series |
|
|
Models |
STR800-4S(V3) |
STR800-4D(V3) |
|
Memory |
128MB |
128MB |
|
Flash |
16MB |
16MB |
|
SIM Slots |
2 |
2 |
|
4G LTE Modem |
1 |
2 |
|
LTE Band |
Asia: 1/3/5/8/34/38/39/40/41 Europe: 1/3/7/8/20/28/38/40/41 |
|
|
LTE Datarate |
150Mbps (Downlink)/50Mbps (Uplink) |
|
|
LTE Standard |
CAT-4 |
|
|
WAN&LAN Interface |
5*10/100Mbps Ethernet, one or two WAN ports. |
|
|
USB Console |
One Mini USB Console. |
|
|
LED indicator |
POWER, SYSTEM, WAN, LAN, 4G |
|
|
Chassis material |
Metal Shell |
|
|
Fanless |
||
|
External Antenna |
≥7dbi |
|
|
Dimension(W×D×H) |
144*86*31mm |
|
|
Input voltage (DC) |
12V DC Jack, external adaptor |
|
|
Max. power |
≤10W |
|
|
Temperature |
Long-term work temperature: -20°C-65°C |
|
|
Storage temperature: -40°C-70°C |
||
|
Humidity |
Work humidity: 10%-95% non-condensing |
|
|
Storage humidity: 0%-95% non-condensing |
||
|
Software features |
||
|
Network Protocol |
PPP, PPPoE, |
|
|
3G/4G function |
3G/4G Band Selection, PIN code |
|
|
Routing Protocol |
Static Routing, RIP, OSPF, BGP |
|
|
Link Failover |
Based on IP reachability, Delay, 4G Signal Strength |
|
|
Security Functions |
NAT, PAT, ACL, Basic Firewall |
|
|
VPN Function |
IPSec VPN, GRE VPN, L2TP VPN, PPTP VPN, Open VPN, DMVPN, PKI, IKEv1, IKEv2 |
|
|
Encryption |
DES, 3DES, AES128, AES192, AES256 |
|
|
Diagnosis Tool |
Ping, Traceroute, Network Detection, Packet Capture |
|
|
QoS Functions |
Rate Limitation |
|
|
System Status Log |
3G/4G Log, DHCP/DNS Log, IPSec Log, Boot Log, etc. |
|
|
Management |
NTP Client, Console Management, Web Management, Cloud Management |
|
Order Information
|
Host model |
Description |
|
Models |
|
|
STR800-4S |
V3 Version: 1-Port 100M WAN, 4-Port 100M LAN, One LTE 4G Modem, Dual SIM Slots, External antenna design, 12V DC power adaptor |
|
STR800-4D |
V3 Version: 1-Port 100M WAN, 4-Port 100M LAN, Two LTE 4G Modem, Dual SIM Slots, External antenna design, 12V DC power adaptor |
|
Power Supply |
|
|
PS-India |
India standard power supply adaptor |
|
PS-America |
America standard power supply adaptor |
|
PS-UK |
UK standard power supply adaptor |
|
PS-Europe |
Europe standard power supply adaptor |
:
