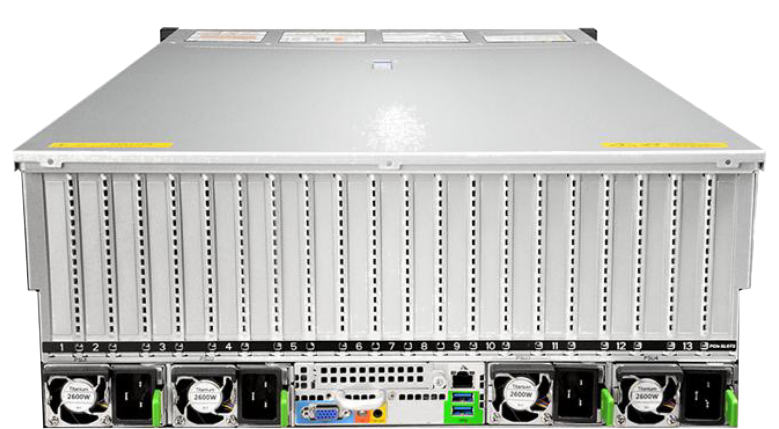

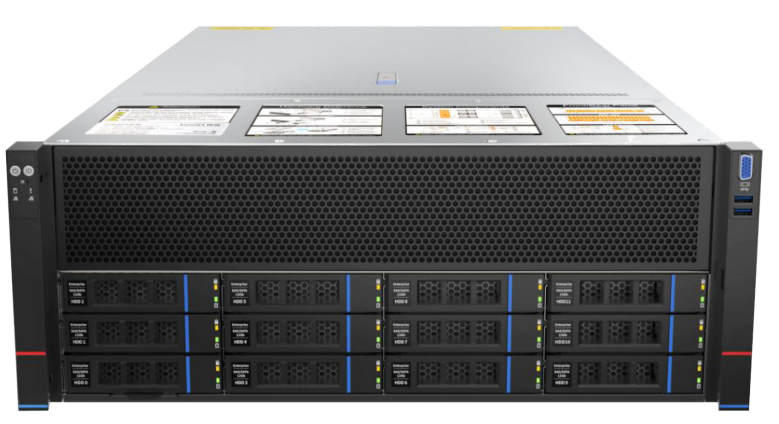

MPS4108GR-G3 Series GPU Server
Maipu MPS4108GR is a 4U 8*GPU AI server, developed on the AMD EPYC Milan platform, offers powerful computing capabilities and exceptional scalability for AI computing tasks. It supports direct CPU-GPU connections for up to 8 dual-width GPU cards, making it suitable for various AI-driven workloads such as artificial intelligence, cloud computing, virtualization, big data analysis, and digital twin applications. This server features large storage capacity, strong expansion capabilities, high reliability, ease of management, and simplified deployment.
Product Features
l Supports 2 AMD EPYC Milan series processors, compatible with AMD EPYC Rome series processors, with a maximum TDP of 280W
l Supports 32 DDR4 memory slots, with frequency support up to 3200MHz
l CPU-GPU direct connection configuration, maximum support for 13*PCIe 4.0 slots, configurable with 8 dual-width, full-height, full-length GPUs
l Supports 12*3.5"/2.5" SATA/SAS/U.2 hard drives, meeting high-speed transmission and data storage needs
Product Specifications
|
Product Model |
MPS4108GRD12R-G3 |
|
Form Factor |
CPU-GPU Direct Connection 8-GPU, 12-Bay AI Server |
|
External Hard Drive |
Support 12*hot-swappable 3.5/2.5-inch SAS/SATA/NVMe hard drives |
|
System Size |
850mm*444.4mm*176.4mm (Depth*Width*Height) |
|
Processor |
Supports 2 AMD EPYC 7003/7002 series processors |
|
Memory |
Supports 32 DDR4 slots, up to 3200MHz |
|
Internal Storage Interface |
2*Mini SAS HD interfaces, 1*NVMe PCIe 3.0*4 interfaces |
|
External Ports & Buttons |
Front: 2*USB3.0, Rear: 1*VGA, 2*RJ45 Gigabit Ethernet ports, 1*RJ45 Gigabit Management port, 2*USB3.0 |
|
PCIe Expansion |
Onboard 19 PCIe4.0 MCIOs (X8), 2 Simline 4i; Supports up to 8 PCIe 4.0 dual-width, full-height, full-length slots and 5 PCIe 4.0 single-width, full-height, full-length slots, with an optional OCP 3.0 slot |
|
Security |
Support TPM Module (Optional) |
|
Power Supply |
Optional AC 2000W/2200W/2600W CRPS 3+1 Redundant Power (adapted to actual power requirements) |
|
FAN |
12* 6056 hot-swappable N+1 redundant fans (23000±10% RPM) |
|
BMC |
ASPEED AST2500 |
|
IPMI |
IPMI 2.0 |
|
Management |
1*DC0 RJ45 Management Port |
|
Temperature |
Working Temperature 5℃–35℃ Short-term storage (≤72 hours): -40°C ～ 70°C Long-term storage (>72 hours): 20°C ～ 28°C |
|
Humidity |
Working Humidity 20%–80%RH non-condensing Short-term storage (≤72 hours): 20% ～ 90% RH (non-condensing, including packaging) Long-term storage (>72 hours): 30% ～ 70% RH (non-condensing, including packaging) |
:
