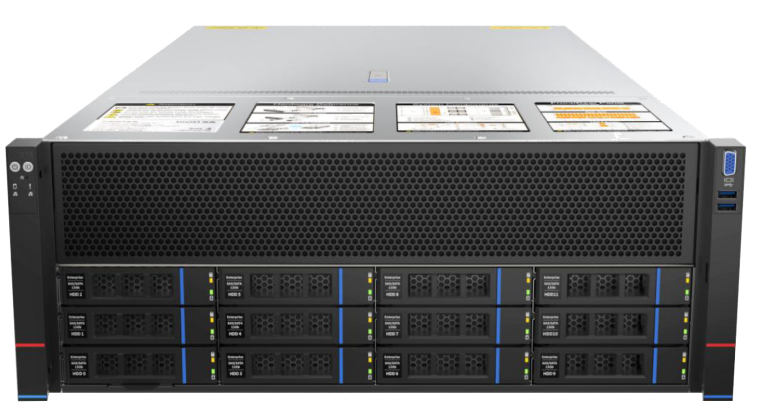

PS4108G-G4 Series GPU Server
Maipu MPS4108G-G4 is a 4U 8*GPU AI Server developed by Maipu, based on Intel's latest Eagle Stream platform, offering powerful computing capabilities and highly flexible expansion options. It supports direct CPU-GPUconnections and CPU-GPU switch topologies, meeting the application needs of various AI scenarios. It is suitable for applications in artificial intelligence, cloud computing, virtualization, big data analysis, and digital twins.
Product Features
l Supports 1 or 2 Intel® Xeon® Scalable Processors (4th/5th generation) with a maximum TDP of 350W
l Upto32 DDR5 memory slots, supporting memory frequencies of 4400/4800/5600MHz, with a 75% increase in memory bandwidth
l Onboard 2 M.2 SATA/NVMe interfaces
l Supports direct CPU-GPU connection and CPU-GPU switch expansion mode, supports 600W dual-width GPU cards
l Supports SATA/SAS/NVMe tri-mode hard drive configurations, meeting high-speed transmission and data storage needs
Product Specifications
|
Product Model |
MPS4108GD12R-G4 |
MPS4108GD24R-G4 |
|
Form Factor |
Pass-though 8-GPU 12-Bay AI Server |

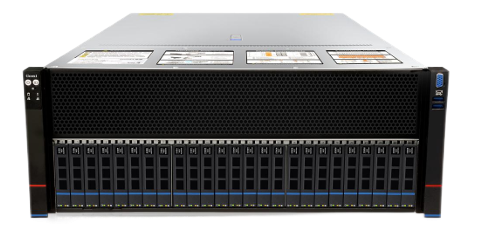

Switch 8-GPU 24-Bay AI Serve |
|
System Size |
850*444*176.5mm (Depth*Width*Height) |
|
|
Processor |
Supports 1 or 2 4th/5th generation Intel® Xeon® Scalable processors, with a maximum TDP of 350W |
|
|
Memory |
32*DDR5 memory slots, supporting DDR5 RDIMM 4400/4800/5600MHz memory |
|
|
Internal Storage Interface |
2*Slimline4xinterfaces(SATA),2*M.2slots(2280/22110,SATA/PCIe3.0x1) |
|
|
External Hard Drive |
Support 12*hot-swappable 3.5/2.5-inch SAS/SATA/U.2 hard drives |
Support 24*hot-swappable 2.5-inch SAS/SATA/U.2 hard drives |
|
External Ports & Buttons |
Front: 1*VGA, 2*USB3.0, Rear: 1*VGA, 1*RJ45 Gigabit Ethernet ports, 1*Serial port, 2*USB3.0 |
|
|
PCIe Expansion |
Up to 13*PCIe expansion slots(OCP3.0 card can be optionally configured as PCIe5.0 x8 or x16,which is mutually exclusive with one of the PCIe5.0 standard single-width slots) |
Upto15*PCIe5.0 expansion slots + 1*OCP3.0slot |
|
Security |
Support TPM Module (Optional) |
|
|
Power Supply |
3+1 or 2+2 Redundancy (2000W/2200W/2600W/3200W) |
|
|
FAN |
Standard 12*hot-swappable 6056 N+1 redundant fans |
|
|
IPMI |
IPMI 2.0 |
|
|
Management |
1*DC0 RJ45 Management Port |
|
|
Temperature |
Working Temperature 5℃–35℃ Short-term storage (≤72 hours): -40°C ～ 70°C Long-term storage (>72 hours): 20°C ～ 28°C |
|
|
Humidity |
Working Humidity 20%–80%RH non-condensing Short-term storage (≤72 hours): 20% ～ 90% RH (non-condensing, including packaging) Long-term storage (>72 hours): 30% ～ 70% RH (non-condensing, including packaging) |
|
:
