Maipu MPS101-G4 Series Rack Server
Maipu MPS101-G4 is a high-end 1U dual-socket server, supporting 1 or 2 4th/5th generation Intel® Xeon® Scalable processors, 32*DIMM DDR5 memory slots, supports 2*M.2 interfaces, 1*RJ45 management port, and 12*PCIe 5.0 expansion slots. It is suitable for virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise markets, or telecommunications business applications, and more.
Product Features
l Supports 1 or 2 4th/5th generation Intel® Xeon® Scalable processors, with a maximum TDP of 350W
l Supports a maximum of 32*DDR5 memory slots, with memory frequencies of 4400/4800/5600MHz
l 2*SATA/NVMe M.2 interfaces.
l Modular design, supporting up to 5*PCIe 5.0 expansions
Product Specifications
|
Product Model |
MPS101D10R-NV-G4 |
|
Form Factor |
1U 10-Bay Server |
|
System Size |
799*444*43.6mm (Depth*Width*Height) |
|
Processor |
Supports 1 or 2 4th/5th generation Intel® Xeon® Scalable processors, with a maximum TDP of 350W |
|
Memory |
32*DDR5 memory slots, supporting DDR5 RDIMM 4400/4800/5600MHz memory |
|
Internal Storage Interface |
3*Mini SAS HD interfaces, 2*SATA/NVMe M.2 SSD interfaces, 14*MCIO interface |
|
External Hard Drive |

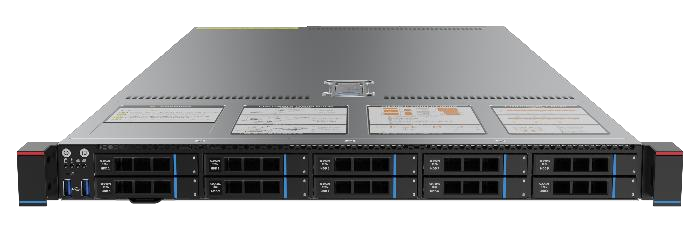

Front: support 8*hot-swappable 2.5-inch SAS/SATA/U.2 hard drives and rare 2*2.5-inch hard drive. |
|
External Ports & Buttons |

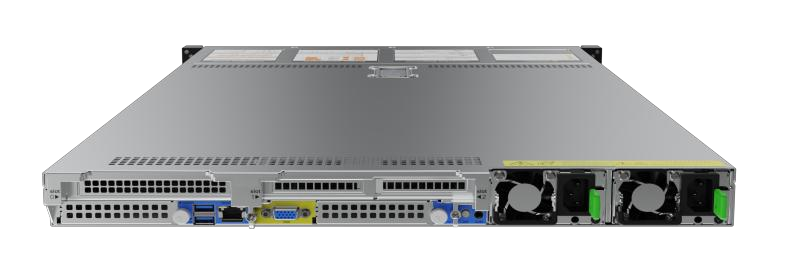

Front: 1*VGA, 2*USB3.0, Rear: 1*VGA, 1*RJ45 Gigabit Ethernet ports, 1*COM port, 2*USB3.0 |
|
PCIe Expansion |
1 full-height PCIe slots, 2 half-height PCIe slots, 2 OCP 3.0 slots Riser1： 1*Full height PCIe 5.0 x16 Riser2： 1*Half height PCIe 5.0 x8(in PCLe x16 slot ) Riser3： 1*Half height PCIe 5.0 x8(in PCLe x16 slot ) OCP： 2*OCP 3.0(PCIe 5.0 x8) |
|
Security |
Support TPM Module (Optional) |
|
Power Supply |
Optional AC 220V 550W、800W、1300W、1600W、2000W、2200W 1+1 redundant power supply(adapted to actual power requirements) |
|
FAN |
Standard 7 hot-swappable N+1 redundant fans, supporting 4056 specifications |
|
IPMI |
IPMI 2.0 |
|
Management |
1*DC0 RJ45 Management Port |
|
Temperature |
Working Temperature 5℃–35℃ Short-term storage (≤72 hours): -40°C ～ 70°C Long-term storage (>72 hours): 20°C ～ 28°C |
|
Humidity |
Working Humidity 20%–80%RH non-condensing Short-term storage (≤72 hours): 20% ～ 90% RH (non-condensing, including packaging) Long-term storage (>72 hours): 30% ～ 70% RH (non-condensing, including packaging) |
:
