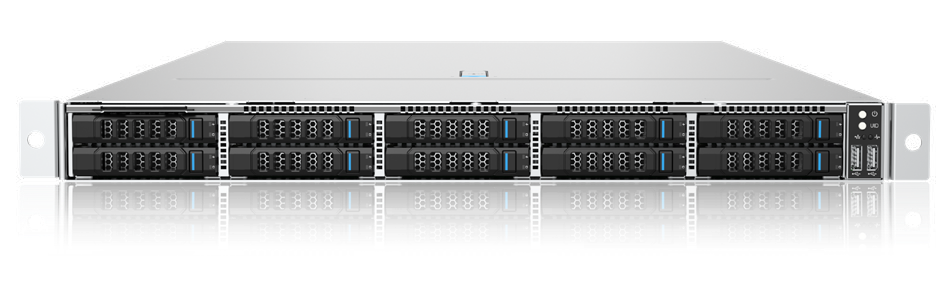

MPS102-G3 Series Rack Server
Maipu MPS102-G3 is a high-end 1U dual-socket server, supporting 1 or 2 4th/5th generation Intel® Xeon® Scalable processors. It features 10 hard drive bays for flexible expansion. With 96% power efficiency and a standard operating temperature range of 0°C to 45°C, it delivers higher energy efficiency returns, suitable for diverse scenarios such as virtualization, cloud computing, and big data.
Product Features
l Open ecosystem design based on the OCSP standard
l Server management based on Open BMC
l Up to 32 memory slots
l Up to 12 hard drive slots
l Up to 5 PCIe slots
l Quick assembly and disassembly, with hot-swappable core components
Product Specifications
|
Product Model |
MPS102-G3 |
|
System Size |
1U chassis 43mm (height) x 447.4mm (width) x 815mm (depth) |
|
Processor |
Supports 2 Intel Xeon 4th/5th generation processors, with maximum thermal design power of 385W (350W for air cooling), up to 64 cores supported |
|
Memory |
Supports up to 32 DDR5 memory slots, with a maximum speed of 5600MT/s, max 8TB. Support CXL 1.1(Optional) |
|
Storage Controller |
Optional high-performance RAID controller supporting RAID 0/1/10/5/6/50/60. |
|
Storage Expansion |
Front: · Supports up to 10 x 2.5” drives or 4 x 3.5” drives Rear: · Supports up to 2 x 2.5” drives or 4 x E1.S drives Internal: · Supports up to 2 x M.2 SSDs |
|
PCIe Expansion |
Up to 5 PCIe expansion slots (3 standard PCIe slots + 3 OCP 3.0 slots) |
|
Management Software |
Integrated BMC management chip AST2600, supports IPMI 2.0, Redfish, SOL, KVM, Virtual Media, and more. |
|
I/O Interfaces |
Rear: · Standard 1 x RJ45 management port, 1 x rear VGA port, 2 x USB ports, 1 x Type-C Front: · 10*SFF：2*USB；1*VGA+1*Type-C · 10*SFF: 2*USB; 1*VGA + 1*Type-C (supports only 9*SFF + IO board solution) |
|
Security |
Supports chassis intrusion detection, Intel PFR 3.0 and SGX 2.0 security technologies, and TCM/TPM security modules. |
|
Power Supply |
Optional 550W/800W/1300W/1600W/2000W/2600W/2700W/3200W CRPS standard power supplies, supporting 1+1 redundancy. |
|
Operating Temperature |
0°C to 45°C (operating temperature varies based on configuration, please refer to the product technical documentation for details). |
:
