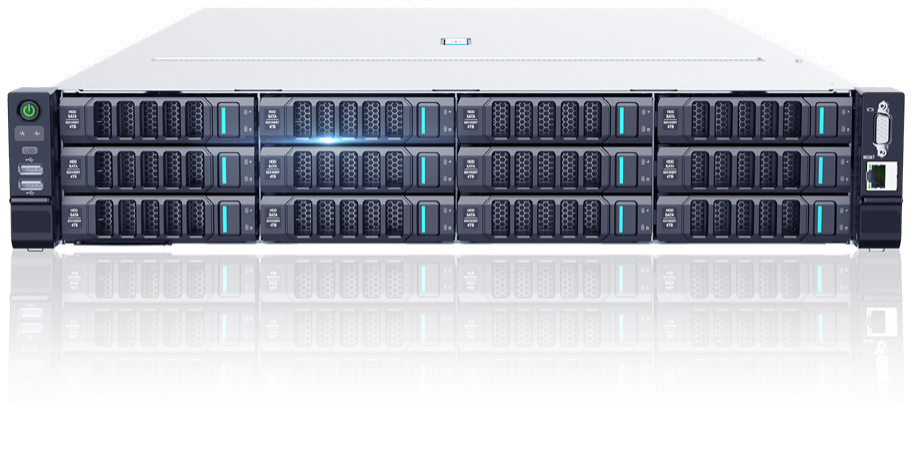

MPS202-G3 Series Rack Server
Maipu MPS202-G3 is a high-end 2U dual-socket server, supporting 1 or 2 4th/5th generation Intel® Xeon® Scalable processors. It is equipped with 8-channel 5600MT/s DDR5 memory technology, providing users with up to 50% bandwidth improvement. With support for 12 PCIe5.0 slots and up to 24 hard drive slots, it achieves flexible expansion capabilities. With 96% power efficiency and a standard operating temperature range of 0°C to 45°C, it offers users higher energy efficiency returns.
Product Features
l Open ecosystem design based on the OCSP standard
l Server management based on Open BMC
l Up to 32 memory slots
l Up to 24 hard drive slots
l Up to 12 PCIe slots
l Quick assembly and disassembly, with hot-swappable core components
Product Specifications
|
Product Model |
MPS202-G3 |
|
System Size |
2U chassis 87mm (height) x 447.4mm (width) x 800mm (depth) (excluding security panel) |
|
Processor |
Supports up to 2 Intel® Xeon® 4th/5th Gen Scalable Processors, with a maximum of 64 cores per processor and a maximum power of 350W each, support HBM. |
|
Memory |
Supports up to 32 DDR5 memory slots, with a maximum speed of 5600MT/s, and RDIMM support, max 8TB. Support CXL 1.1(Optional) |
|
Chipset |
C741 |
|
Storage Controller |
Optional high-performance RAID controller supporting RAID 0/1/10/5/6/50/60. |
|
Storage Expansion |
l Up to 24 hard drives l Supports up to 14 x 3.5” drives (12 front) l Supports up to 24 x 2.5” drives (24 front) l Supports up to 24 x NVMe U.2 drives (24 front) l Optional 2 x 2280 SATA or 1 × NVMe M.2 SSDs |
|
PCIe Expansion |
l Up to 12 PCIe expansion slots l Supports up to 10 standard PCIe slots (10 rear) l Supports up to 2 OCP 3.0 slots |
|
GPU Support |
Supports up to 4 dual-width GPU cards (maximum 450W per card) |
|
Management Software |
Integrated BMC management chip AST2600, supports IPMI 2.0, Redfish, SOL, KVM, Virtual Media, and more. |
|
Network |
l Onboard 1 x GbE dedicated management port l Supports 2 x OCP 3.0 NICs l Optional network adapter based on standard PCIe slots |
|
I/O Interfaces |
l Standard 1 x RJ45 management port, 1 x rear VGA port, 4 x USB ports (2 front, 2 rear) l Optional expansion card with 2 rear USB ports, 1 USB Type-C management port, 1 RJ45 management port l Left ear: 2 x USB 2.0, optional 2 x USB 3.0 l Right ear: Optional smart ear with 1 x VGA, 1 x management port, or 1 x Type-C management interface |
|
Security |
Supports chassis intrusion detection, Intel PFR 3.0 and SGX 2.0 security technologies, and TCM/TPM security modules. |
|
Power Supply |
Optional 550W/800W/1300W/1600W/2000W/2600W/2700W/3200W CRPS standard power supplies, supporting 1+1 redundancy. |
|
Operating Temperature |
0°C to 45°C (operating temperature varies based on configuration, please refer to the product technical documentation for details). |
:
