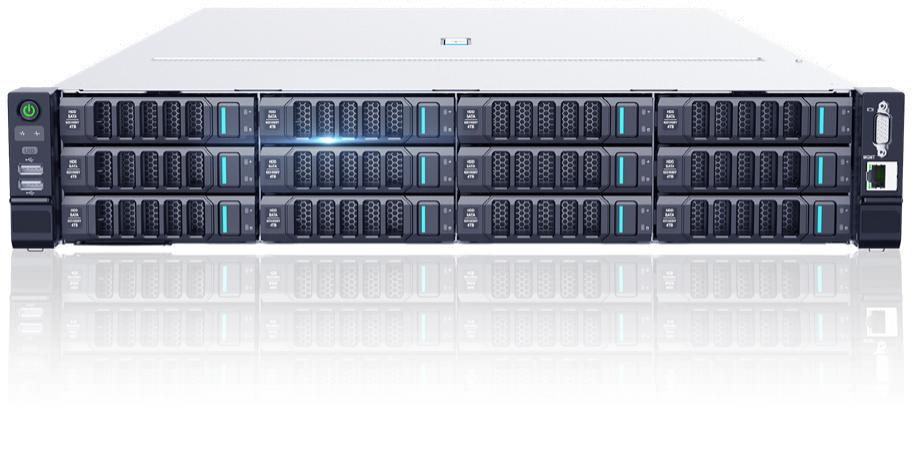

MPS202-G4 Series Rack Server
Maipu MPS202-G4 is a high-end 2U dual-socket server, developed based on the Intel BHS-SP platform, supporting up to two Intel® Xeon® 6th Gen BHS-SP processors, paired with 32 DDR5 memory channels operating at 8000 MT/s. It supports 29 hard drive bays for flexible expansion. With 96% power efficiency and a standard operating temperature range of 5°C to 45°C, it delivers higher energy efficiency, suitable for diverse scenarios such as virtualization, cloud computing, and big data.
Product Features
l Open ecosystem design based on the OCSP standard
l Server management based on Open BMC
l Up to 32 memory slots
l Up to 29 hard drive slots
l Up to 10 PCIe slots
l Quick assembly and disassembly, with hot-swappable core components
Product Specifications
|
Product Model |
MPS202-G4 |
|
System Size |
2U chassis 87mm (height) x 447.4mm (width) x 800mm (depth) (excluding security panel) |
|
Processor |
Supports up to 2 Intel® Xeon® Processors 6th Generation, up to 144 cores per processor, maximum power consumption 350W |
|
Memory |
Supports up to 32 DDR5 memory modules Supports RDIMM with speeds up to 6400MT/s (2DPC) Supports MCRDIMM memory with speeds up to 8000MT/s |
|
Storage Controller |
Optional high-performance RAID controller supporting RAID 0/1/10/5/6/50/60. |
|
Storage Expansion |
l Up to 29 hard drives l Supports up to 16 x 3.5” drives (12 front, 4 rear) l Supports up to 29 x 2.5” drives (25 front, 4 rear) l Optional 2 x 2280/22110 SATA/NVMe M.2 SSDs |
|
PCIe Expansion |
l Up to 10 PCIe expansion slots l Supports up to 2 OCP 3.0 onboard slots |
|
GPU Support |
Supports up to 4 dual-width GPU cards (maximum 450W per card) |
|
Management Software |
Integrated BMC management chip AST2600, supports IPMI 2.0, Redfish, SOL, KVM, Virtual Media, and more. |
|
I/O Interfaces |
l Standard 1 x RJ45 management port, 1 x rear VGA port, 4 x USB ports (2 front, 2 rear) l Optional expansion card with 2 rear USB ports, 1 USB Type-C management port, 1 RJ45 management port l Left ear: 2 x USB 2.0, optional 2 x USB 3.0 l Right ear: Optional smart ear with 1 x VGA, 1 x management port, or 1 x Type-C management interface |
|
Security |
Supports chassis intrusion detection, Intel PFR 3.0 and SGX 2.0 security technologies, and TCM/TPM security modules. |
|
Power Supply |
Supports 1+1 redundant 800W~3200W CRPS standard power supplies |
|
Operating Temperature |
5°C to 45°C (operating temperature varies based on configuration, please refer to the product technical documentation for details). |
:
