Maipu PU2300-1G3FP GPON SFU
Maipu PU2300-1G3FP GPON SFU is designed for telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband access, SOHO broadband access, video surveillance scenario, Which adopt mature and stable, cost-effective GPON technology, following ITU-TG984.x and related standards, providing high reliability, easy management, flexible configuration and advanced quality of service (QoS) to meet customer requirement.

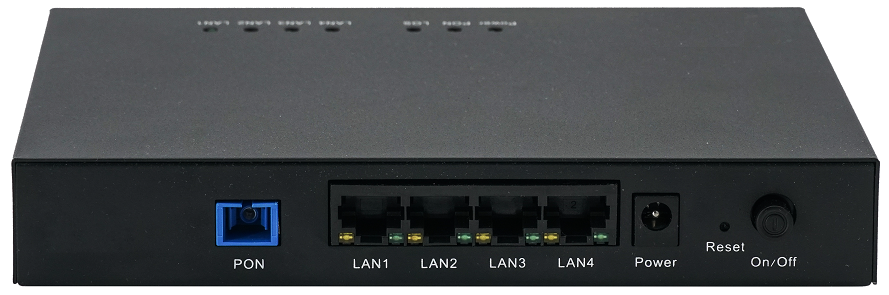

PU2300-1G3FP provides 1*GPON port,1*GE Port (PoE) and 3*FE Ports (PoE).
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Specifications
|
Hardware Specification |
|
|
Dimensions |
175mm×123mm×28mm（L×W×H） |
|
Weight |
About 0.6Kg |
|
Operating temperature |
-20℃～50℃ |
|
Operating humidity |
10%～90%（non-condensing） |
|
Power adapter input |
100 V to 240 V AC, 50 Hz/60 Hz |
|
System power supply |
DC 48V/2A |
|
UNI |
1*GE (PoE) + 3*FE(PoE) |
|
NNI |
1*GPON |
|
Static power consumption |
10W |
|
Typical power consumption |
13W (without PoE) |
|
Maximum power consumption |
16W (without PoE) |
|
88W (within PoE) |
|
|
Maximum PoE output power |
61.6 W (4 port PoE) |
|
PON Port |
SC/UPC connector |
|
SFP optical module |
|
|
Transmission rate： |
|
|
GPON: downstream 2.5Gbps and upstream 1.25Gbps |
|
|
EPON: downstream 1.25Gbps and upstream 1.25Gbps |
|
|
GE Electrical Port or FE Electrical Port |
PoE, IEEE 802.3af |
|
RJ-45 connector |
|
|
Port rate auto negotiation (10/100/1000 Mbit/s or 10/100 Mbit/s) |
|
|
Auto-MDI/MDIX |
|
|
Configuration of the number of MAC addresses learned |
|
|
Ethernet port-based VLAN transparent transmission and VLAN filtering |
|
|
Software Key Feature |
|
|
Automatic Service Provisioning |
Authentication exemption |
|
XML/OMCI or OAM |
|
|
SFU ONU |
Bridging mode |
|
Well connect with OLTs of mainstream (Huawei\ZTE\FH) |
|
|
Layer 2 Management |
802.1D&802.1ad bridging |
|
802.1p CoS |
|
|
802.1Q VLAN |
|
|
Multicast |
IGMPv2/v3 |
|
IGMP snooping |
|
|
standard |
IEEE802.3af standard |
|
ITU-T G.984.x standard |
|
|
China's CTC 3.0 standards |
|
Order Information
|
Product model |
Product specification |
|
PU2300-1G3FP |
GPON SFU, 1*GPON Port+1*GE Port (PoE) and 3*FE(PoE) Ports |
