NSS3330 Series L3 MPLS Aggregation Switch

NSS3330 Series L3 MPLS Aggregation Switch

NSS3330 series switch is a high-performance stackable L3 access MPLS routing switch developed by Maipu. It is applied in enterprise campus network and easy to deploy Layer2/3 switching solution that offers 6*10GE uplinks and inbuilt power supply, Static/RIP/OSPF/BGP/ISIS, L2/L3 Multicast, VST/M-LAG stacking enabled and flexible management. NSS3330 series switch can be used as L3 access or aggregation devices on campus networks. The switches help build highly reliable enterprise campus networks that are easy to expand and manage.

NSS3330 series switch includes NSS3330-30TXF, NSS3330-30TXP, NSS3330-54TXF, NSS3330-54TXP, NSS3330-38GTXF five models.

(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)

Product Features

l Intelligent Stacking Technology

The NSS3330 series switch is equipped with Maipu VST stacking feature. VST (Virtual Switching Technology) stacking combines multiple switches to form a logical virtual switch, improving device and link reliability, network expansion, and simplifying configuration and management.

The NSS3330 series switch also support M-LAG, aggregating links of multiple switches to ensure link backup and uninterrupted services during upgrade.

l Software Defined Network

The NSS3330 series switch is capable of being managed by Maipu's BD-LAN controller, an integrated SDN platform designed for campus networks. The utilization of software-defined network technologies in this platform simplifies the deployment, management, and security of campus networks, while also enabling network teams to complete the majority of their work directly on the BD-LAN controller platform. When compared with traditional methods, implementing a BD-LAN solution can significantly reduce network deployment times, simplify network maintenance, improve troubleshooting efficiency, and ultimately lead to overall cost savings for customers.

l Advanced MPLS Capabilities

The NSS3330 series switch delivers advanced MPLS capabilities, enhancing your network infrastructure with powerful features. These include seamless MPLS VPN deployment for secure and efficient data transmission, MPLS Traffic Engineering for optimized traffic routing, and MPLS Quality of Service (QoS) support for prioritizing critical applications.

l Zero Touch Provisioning

The NSS3330 series switch features advanced Zero Touch Provisioning (ZTP) capabilities, streamlining the deployment process for network administrators. With ZTP, the switch can automatically discover and load necessary version files from a file server via a DHCP server or a USB flash disk, eliminating the need for manual intervention during initial setup. This automation reduces configuration errors, accelerates the deployment process, and enhances overall network efficiency, making the NSS3330 series switch an ideal choice for scalable and dynamic network environments.

l High Availability

The NSS3330 series switch offers advanced redundancy and reliability features, catering to diverse networking requirements. In addition to supporting traditional spanning tree protocols such as STP, RSTP, and MSTP, the switch also complies with the ITU-T G.8032 international standard. This Ethernet Ring Protection Switching (ERPS) protocol enables rapid 50ms failover within Ethernet ring network topologies, ensuring seamless connectivity and minimal downtime.

Furthermore, the NSS3330 series switch incorporates the Virtual Router Redundancy Protocol (VRRP), facilitating uplink backup capabilities. By connecting to multiple aggregation switches via multiple links, the switch significantly enhances access device reliability, promoting network stability and resilience.

l Perfect Security Policy

The NSS3330 series switch offers a comprehensive suite of security features, including user authentication, port security, ACLs, loopback detection, and 802.1X authentication. It also incorporates IP Source Guard, DHCP/ND Snooping, Host Guard, Dynamic ARP Inspection, and PPPoE+ security mechanisms. These robust security functions ensure user access and network protection.

Additionally, the switch supports MAC+IP+VLAN binding, 802.1X authentication, and countermeasures against network storm, DOS/DDOS, ARP, and protocol packet attacks. This makes the NSS3330 series ideal for large-scale, multi-service, and complex-traffic networks.

l Advanced QoS

The NSS3330 series switch offers sophisticated QoS capabilities for optimal network performance. Supporting eight queues per port and advanced scheduling algorithms such as SP, RR, WRR, and WDRR, the switch effectively manages traffic prioritization and resource allocation.

The switch accommodates diverse priority mapping techniques, including 802.1p, CoS, and DSCP, enabling fine-grained control over traffic classification and prioritization. With granular port traffic rate limiting and time-based controls, network administrators can regulate bandwidth usage as needed.

To optimize network performance and minimize congestion, the NSS3330 series switch employs advanced congestion management techniques, such as Tail Drop and RED packet loss algorithms. These mechanisms help maintain seamless network operation while ensuring efficient delivery of critical data.

l IPv4&IPv6 Dual-stack Ability

The NSS3330 series switch is built on an IPv4/IPv6 dual-stack platform, delivering hardware-based, wire-speed forwarding for both IPv4 and IPv6 traffic. The switch supports IPv4/IPv6 Layer 3 routing protocols, including RIPng, OSPFv3, BGP4+, and IS-IS for IPv6. These IPv6 capabilities enable seamless deployment on pure IPv4, pure IPv6, or dual-stack networks, facilitating a smooth transition from IPv4 to IPv6 infrastructure.

l Rich Network Management

The NSS3330 series switch offers a comprehensive set of management options. These options encompass network management protocols like SNMP and TR-069, configuration and control options like Netconf/Yang and CLI, monitoring and diagnostic tools such as RMON and SYSLOG. These versatile features enable network administrators to effectively manage, monitor, and maintain optimal network performance locally

l Free Licensing Policy

Maipu consistently adheres to a "One-time investment" free license policy, ensuring that standard and advanced features are not differentiated across versions. This approach guarantees that customers receive new firmware updates without incurring additional charges. In comparison to other manufacturers, Maipu's free license policy safeguards both short-term and long-term user investments, providing an unparalleled value proposition.

Product Specifications

Product Model

NSS3330-30TXF

NSS3330-54TXF

NSS3330-30TXP

NSS3330-54TXP

NSS3330-38GTXF

Hardware specification

Hardware Version

Physical Traffic Port

24*10/100/1000M Base-T

6*1/10G SFP+ interfaces

48*10/100/1000M Base-T

6*1/10G SFP+ interfaces

24*10/100/1000M Base-T

6*1/10G SFP+ interfaces

48*10/100/1000M Base-T

6*1/10G SFP+ interfaces

8*10/100/1000M Base-T

24*1G SFP

6*1/10G SFP+ interfaces

Fixed Power Supply

Dual

One

Dual

CPU

2-Core 1.4GHZ

Fixed Fan

Fanless

Yes

PoE Power Consumption

N/A

380W

760W

N/A

PoE Standard

N/A

IEEE 802.af/at

N/A

Power Consumption

(Without PoE)

≤37W

≤56W

≤42W

≤54W

≤52W

Dimension(W*D*H)mm

442*320*44.2

442*380*44.2

442*320*44.2

Physical Management Port

1* RJ45 Console Port

1* DC0 Port

1* USB2.0 Port

Input Voltage

AC:100V ~ 240V/50Hz ~ 60Hz

Work Temperature

-5℃ to 45℃

-5℃ to 50℃

Storage Temperature

-40℃ to 70℃

Humidity

Work Humidity:10%～90%, non-condensing

Storage Humidity:5%～95%, non-condensing

Anti-Lightning

6KV

Anti-Static

6KV

MTBF

>100000 hours

Performance parameters

Switching Capacity

168Gbps

216Gbps

168Gbps

216Gbps

184Gbps

Throughput

125Mpps

160.7Mpps

125Mpps

160.7Mpps

136.8Mpps

Flash (GB)

8GB

Memory (GB)

1GB

MAC Address Entry

32K

Jumbo Frame

12K

ARP Entry

12K

ND Entry

VLAN Entry

LACP Group

LACP Member in Group

MSTP Instance

IPv4 Routing Entry

12K

IPv6 Routing Entry

L2 Multicast Entry

L3 Multicast Entry

VRF Entry

VRRP Group

255

Software Specification

Interface

Basic Port Configuration

Auto MDI/MDIX, Port Type UNI/NNI, Port Speed, Port MTU, Switch Port, Port Loopback, Port Energy Control

Logic Interface

Loopback Interface, Tunnel Interface, Null Interface, L2/L3 VLAN Interface, L3 Ethernet Interface, VxLAN Interface

MAC Address Management

Storm Control, Flood Control, MAC Address Aging Time, Mac Address Learning on|off, Mac Address Learning Limitation, Mac Address VLAN Binding, MAC Debug

VLAN

VLAN Management

VLAN, QinQ, Flexible QinQ, VLAN PVID, VLAN Tag/Untag, VLAN Trunk, MAC VLAN, Protocol VLAN, Subnet VLAN, Super VLAN, Voice VLAN, Private VLAN, Guest VLAN, VLAN Debug, GVRP, VLAN Isolation

Ring Protection

Spanning Tree Protocols

STP/RSTP/MSTP, BPDU Guard, Flap Guard, Loop Guard, Root Guard, TC Guard

Other Ring Protocols

VIST/VIST+, G.8032(ERPSv1&v2)

Link Aggregation

LACP Configuration

LACP Link Aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug

Error Handling

Error-disable Configuration

Fault Detection

Fault Detection Features

ULFD, Track, Loop-back Detection, CFM(802.1ag)

IP Services

IP Protocol

ARP, DNS, NTP Server/Client, ICMP, ECMP, GRE, IPIP, IPv6 over IPv4, ISATAP, IPv4 over IPv6, IPv6 over IPv6

Routing Protocol

Static Routing v4/v6, RIP/RIPng, IRMP, OSPF v2/v3, BGP/BGP+, ISIS/ISIS v6, VRRP/VRRP v3, VBRP, PBR/PBR v6, IP-VRF

DHCP Service

DHCP v4/v6 Server, DHCP v4/v6 Client, DHCP v4/v6 Relay, DHCP Snooping, DHCP Option51/82

Multicast Protocols

L2 Multicast Protocols

IGMPv1/v2/v3 Snooping, IGMP Snooping Proxy, MLD Snooping, MVR, MVP

L3 Multicast Protocols

IGMPv1/v2/v3, PIM v4/v6-SM, PIM v4/v6-SSM, PIM-DM, PIM-SDM,

QoS

Priority Mapping

802.1P Priority, DSCP priority

Traffic Classification

Three Color Marker, Priority Remark, Traffic Redirect, Traffic Meter, Traffic Mirror

Traffic Control

Rate Limit, Traffic Shaping

Scheduling Algorithm

SP, RR, WRR, WDRR, SP+WRR, SP+WDRR

Congestion Management

Tail-drop, RED, WRED

MPLS

MPLS L3 VPN

LDP, MPLS BGP, MPLS Option-A & Option-B, Multi-VRF

MPLS OAM

MPLS Ping/Traceroute, MPLS QoS, MPLS TE

Security

Port Security

Port Security On aging|deny|permit|violation|ACL

Network Access Control

IP Source Guard(ISG), DHCP Snooping, ND Snooping, Host Guard

Threat Prevention

Dynamic ARP Inspection(DAI), ARP Check, AARF ARP-Guard, ARP Speed Limit, ARP Source Suppression, PPPoE+

Access Control List

Standard IP ACL, Extended IP ACL, Standard MAC ACL, Extended MAC ACL, Standard Hybrid ACL, Extended Hybrid ACL, Standard IPv6 ACL, Extended IPv6 ACL, Time-based ACL

Anti-Attack

Anti-Attack Detect|Drop|Flood|Log, URPF, White List, Black List

AAA

AAA, Radius, TACACS+, 802.1x, Portal

High Availability

Device Virtualization

H-VST, M-VST, M-LAG

Multi-Active Detection

MAD LACP, MAD BFD, MAD Fast-Hello

High availability Protocols

HA, ULFD, UDLD, G.8032, ULPP, Monitor Link, Track, VRRP, VRRPv3, VBRP, EEP, BFD with Static|RIP|OSPF|BGP|ISIS, CPU protection

Configuration and Maintenance

Monitoring and Diagnostics

SPAN, RSPAN, ERSPAN, VLAN SPAN, sFlow, Telemetry, LLDP, IP-SLA

Device Management

TR069, SNMP v1/v2/v3, MIB, RMON, SYSLOG, WEB(HTTP/HTTPS), CLI, Telnet, FTP/SFTP/TFTP/FTPS, Debug, Telemetry, ISSU, Hot Patch, Keepalive Gateway

Zero Touch Provisioning

ZTP Provisioning Through DHCP Server, ZTP Provisioning Through USB Flash Disk

Network Virtualization

Software Defined Networking(SDN)

Netconf/Yang

IEEE Standard

IEEE 802.3 (10BASE-T)

IEEE 802.3u (100BASE-T)

IEEE 802.3z (1000BASE-X)

IEEE 802.3ab (1000BASE-T)

IEEE 802.3ae (10G BASE-X)

IEEE 802.3ah (Ethernet in the First Mile Operations, Administration, and Maintenance)

IEEE 802.1x (Port-Based Network Access Control)

IEEE 802.3ad (Link Aggregation)

IEEE 802.3x (Flow Control)

IEEE 802.1d (Spanning Tree Protocol)

IEEE 802.1ab (Link Layer Discovery Protocol)

IEEE 802.1Q (Virtual LAN)

IEEE 802.1w (Rapid Spanning Tree Protocol)

IEEE 802.1s (Multiple Spanning Tree Protocol)

IEEE 802.1p (Class of Service Priority)

IEEE 802.1ag (Connectivity Fault Management)

Open



Typical Application

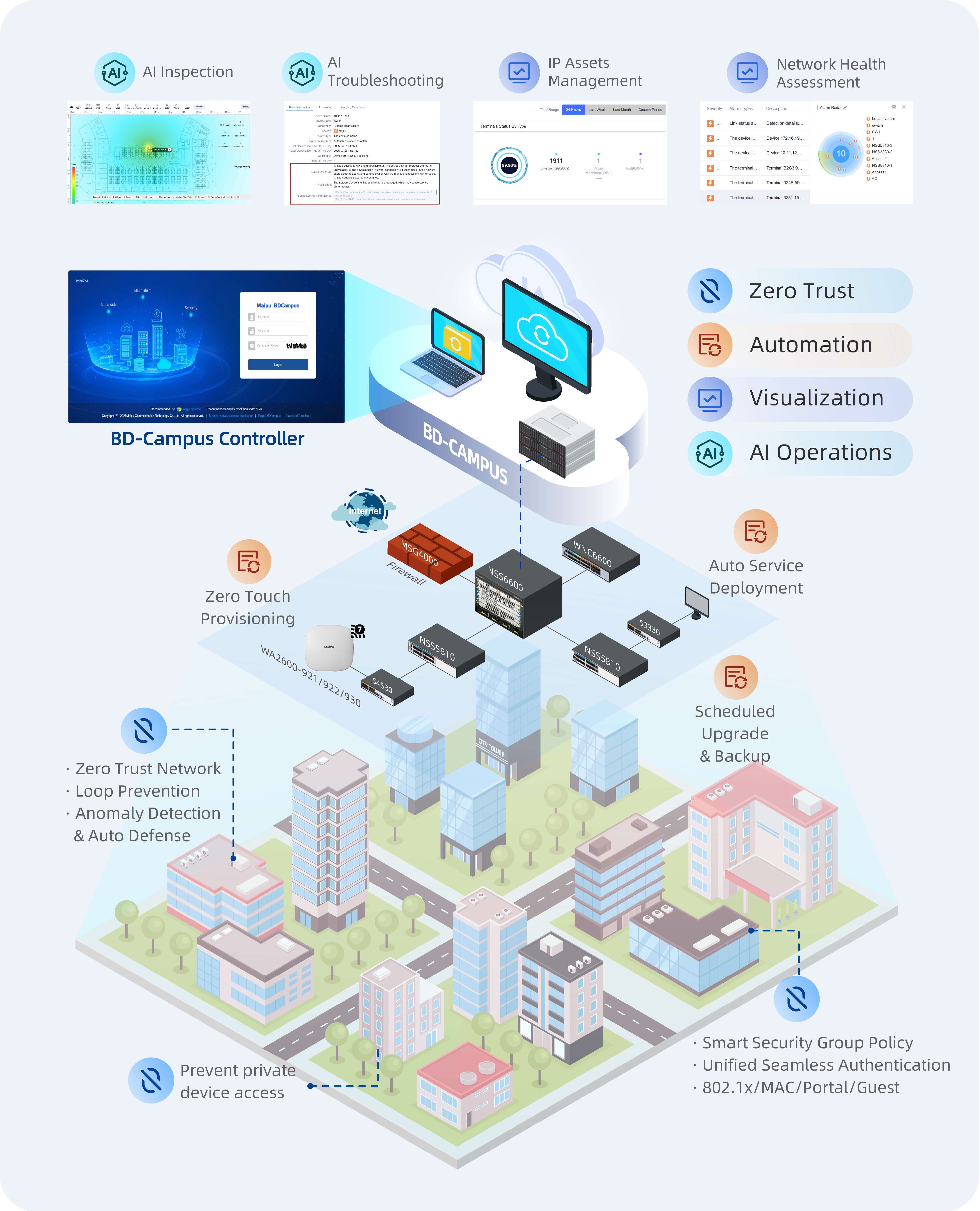

SDN Campus LAN Network

ISP Metro Ethernet Network

Order Information

Series	Model	Description
NSS3330 Series Host
NSS3330 Series	NSS3330-30TXF	V1 Version: 24100/1000M Base-T interfaces, 610G SFP+ interfaces, Fixed Dual AC Power Supply
	NSS3330-54TXF	V1 Version: 48100/1000M Base-T interfaces, 610G SFP+ interfaces, Fixed Dual AC Power Supply
	NSS3330-30TXP	S1 Version: 24100/1000M Base-T interfaces, 610G SFP+ interfaces, 380W PoE&PoE+ enable, Fixed One AC Power Supply
	NSS3330-54TXP	S1 Version: 48100/1000M Base-T interfaces, 610G SFP+ interfaces, 760W PoE&PoE+ enable, Fixed One AC Power Supply
	NSS3330-38GTXF	V1 Version: 241000M Base-X interfaces, 8100/1000M Base-T interfaces, 6*10G SFP+ interfaces, Fixed Dual AC Power Supply

:NSS3330 Series Stackable L3 Access Switch Datasheet-20250402
