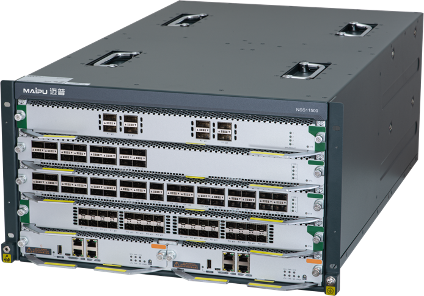

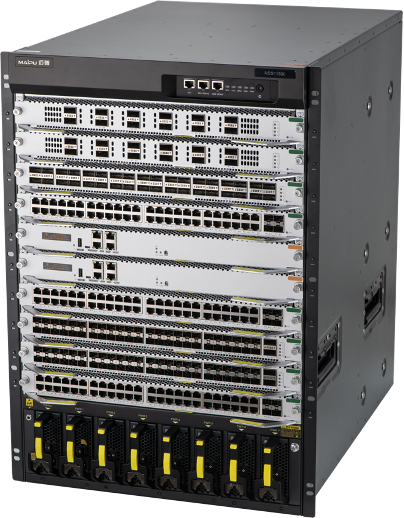

NSS11500 Series L3 MPLS Core Switch
NSS11500-04/08/12 series switch is a high-performance stackable L3 core routing switch developed by Maipu. It is applied in enterprise campus network and easy to deploy Layer3 switching solution that offers enhanced security and 1GE/10GE/40GE/100GE interfaces, RIP/OSPF/BGP/IS-IS, L2&L3 Multicast, VST stacking enabled and flexible management.
NSS11500 series switch can be used as L3 distribution devices on large-sized campus networks. They can also be used as core devices on small and medium-sized campus networks. The switches help build highly reliable enterprise campus networks that are easy to expand and manage.
NSS11500 series switch includes NSS11500-04, NSS11500-08, NSS11500-12 three models.
NSS11500-04 supports dual control engine slots, six switching engine slots, four line card slots.
NSS11500-08 supports dual control engine slots, six switching engine slots, eight line card slots.
NSS11500-12 supports dual control engine slots, six switching engine slots, twelve line card slots.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
l High-Density Interfaces Line Cards
NSS11500 series provide maximum 384*1GE, 384*10GE, 96*40GE, 144*100GE interfaces. The port combination fully satisfies the interface density requirement of campus network scenarios.
l Highly Reliable Enterprise-class Hardware Design
NSS11500 has enterprise-class reliability and stability to ensure long-term service continuity. Redundant MPUs work in 1+1 hot backup mode. Redundant SFUs work in N+1 balance mode. Redundant power supplies support work in N+1 hot backup and redundant fan trays design.
l Intelligent stacking technology
NSS11500 series switch supports Maipu VST stacking function. Two NSS11500 supporting stacking feature are combined to form a virtual switch logically. VST stacking system improves the device-class reliability by redundant backup among multiple member devices and improves the link-class reliability by the link aggregation function across devices. VST provides a powerful expansion capability for campus network.
l High availability
NSS11500 series switch not only supports the traditional STP/RSTP/MSTP spanning tree protocol, but also supports the G.8032 international standard G.8032 protocol issued by ITU-T. This standard can realize 50ms millisecond fast protection switching of Ethernet ring network.
The NSS11500 also supports Virtual Router Redundancy Protocol (VRRP), which implement backup of uplinks. One switch can connect to multiple aggregation switches through multiple links, significantly improving the reliability of access devices.
l Perfect security policy
NSS11500 series switch provides various security policies such as user authority/identity authentication, port security, port rate limitation, port monitoring, ACL, loopback detection, and 802.1X authentication; provides various protect mechanisms for user access and network security. It has perfect security function design and supports MAC+IP+VLAN binding and 802.1X authentication security policies, and anti-network storm attack, anti DOS/DDOS attack, anti ARP attack, and anti-network protocol packet attack security technologies. In this way, the attacks and virus can be prevented, and it is more suitable for large-scale, multi-service and complicated-traffic networks.
l Advanced QoS
NSS11500 series switch supports eight queues per port and the queue scheduling policies such as SP, RR, WRR, and WDRR; rich priority mappings including 802.1p, COS, DSCP; Kbps-level port traffic rate restriction and carriers can limit the rate according to the time period; Tail Drop and RED packet loss algorithm.
l Zero Touch Implementing
NSS11500 series support Zero Touch Provisioning (ZTP). It enables the switch to automatically obtain and load version files from file server through DHCP server or USB flash disk.
l IPv4&IPv6 Dual-stack ability
NSS11500 series switch comes with IPv4/IPv6 dual-stack platform which provides hardware-based IPv4/IPv6 wire-speed forwarding and IPv4/IPv6 Layer3 routing protocols (RIPng, OSPFv3, BGP4+ and IS-IS for IPv6). With these IPv6 features, the NSS11500 can be deployed on a pure IPv4 network, a pure IPv6 network, or a shared IPv4/IPv6 network, helping achieve IPv4-to-IPv6 transition.

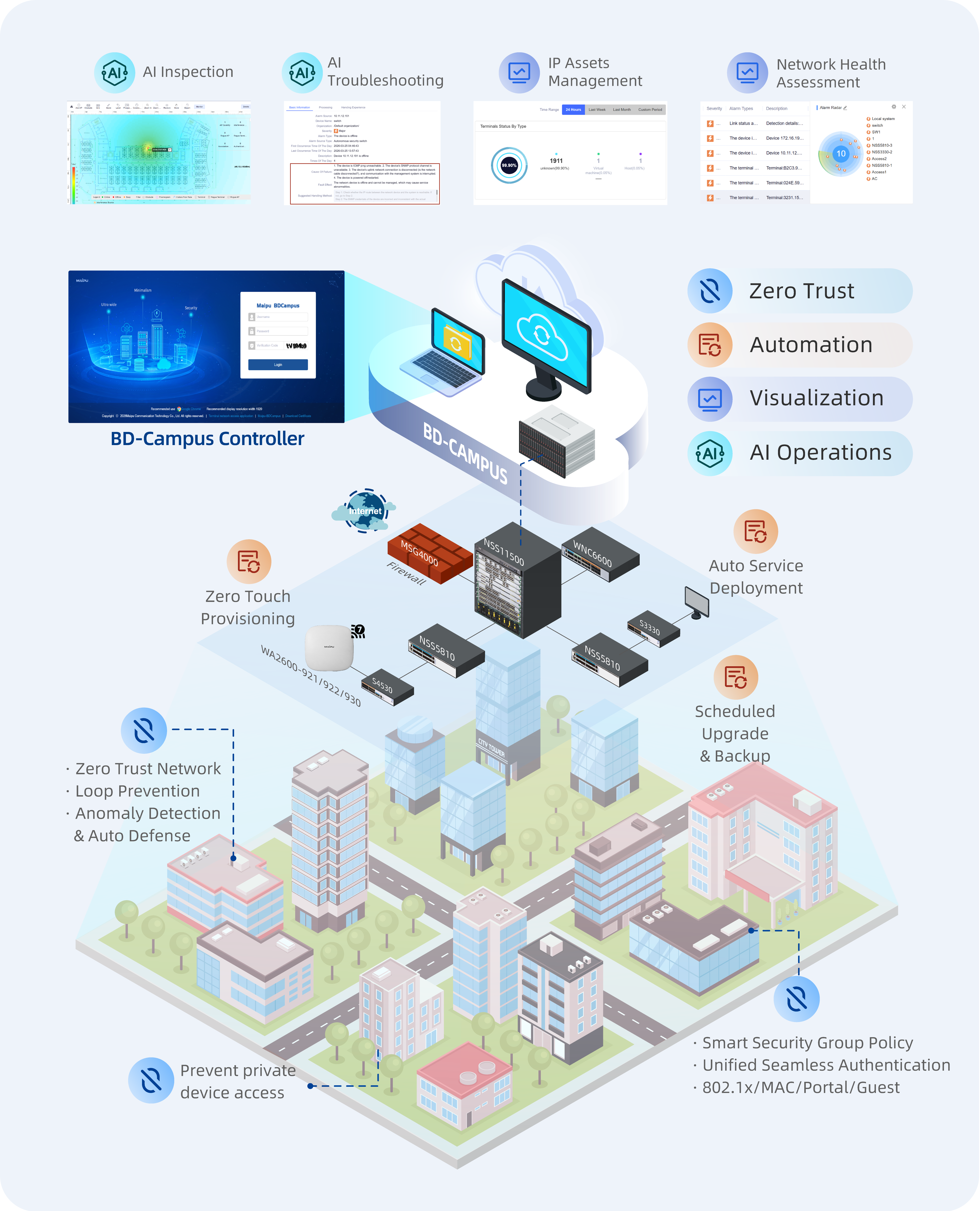

l BD-Campus Controller Management
NSS11500 can be managed by Maipu BD-Campus controller, which is an integrated SDN platform for campus network. It simplifies campus network security, deployment, and management with the latest software-defined network technologies. It helps the network team complete most of the work on the BD-Campus controller platform. Compared with traditional methods, BD-Campus solution can make the network deployment faster, maintain the network easier, troubleshoot much more efficient, and save customer's overall cost.
l Free Licensing Policy
Maipu always insists on “One-time investment” free license policy, the standard features and advanced features will be never divided to different version. For any new firmware version, Maipu will share to customers without extra charge. Compared with other manufacturers, Maipu free license policy can better protect users' short-term and long-term investment.
Product Specifications
Technical Specifications
|
Product model |
NSS11500-04 |
NSS11500-08 |
NSS11500-12 |
|
|
Version |
V2 |
V2 |
V2 |
|
|
Hardware specification |
||||
|
Hardware Architecture |
Crossbar |
Crossbar |
Crossbar |
|
|
Control Engine Slots |
2 |
2 |
2 |
|
|
Switching Engine Slots |
4+2 |
4+2 |
4+2 |
|
|
Service Card Slots |
4 |
8 |
12 |
|
|
Control Engine Model |
NSM115-MPUB |
NSM115-MPUC |
NSM115-MPUC |
|
|
Switching Engine Model |
NSM115-SFUB |
NSM115-SFUC |
NSM115-SFUF |
|
|
Switching Capacity |
9.6Tbps |
19.2Tbps |
28.8Tbps |
|
|
Flash |
8G |
|||
|
Memory |
4G(Default)/16G |
|||
|
Jumbo Frame |
12K |
|||
|
MAC Address Entry |
131K/383K |
|||
|
IPv4 Routing Entry |
81K/131K |
|||
|
IGMP Snooping Entry |
3K/5K |
|||
|
PIM Entry |
3K/5K |
|||
|
ARP Entry |
63K |
|||
|
MSTP Instance |
64 |
|||
|
Max. ECMP Path |
64 |
|||
|
VRF Entry |
1K |
|||
|
VRRP Group |
255 |
|||
|
Power Slots |
4 |
8 |
8 |
|
|
FAN Array Slots |
2 |
2 |
4 |
|
|
Air Flow |
Front-to-Back |
Front-to-Back |
Front-to-Back |
|
|
PoE Standard |
802.3 af/at/bt |
802.3 af/at/bt |
802.3 af/at/bt |
|
|
Power Input |
Input voltage AC: 100V ~ 240V, 50Hz ~ 60Hz |
|||
|
Input voltage DC:42V~72V |
||||
|
Temperature |
Work temperature: 0℃ to 50℃ |
|||
|
Storage temperature: -40℃ to 70℃ |
||||
|
Humidity |
Work humidity: 10% to 90%, no-condensing |
|||
|
Storage humidity: 5% to 95%, no-condensing |
||||
|
Dimension(W×D×H) |
441*748*263mm(6U) |
441*645*666mm(15U) |
441*645*880mm(20U) |
|
|
MTBF |
>100, 000 hours |
|||
|
Software Specification |
||||
|
Standard L2 protocol |
Interface |
Port Type UNI/NNI, Port Speed, Port MTU, Port Loopback, Loopback interface, Tunnel interface, Null interface, VXLAN interface |
||
|
Ethernet Switching |
LACP Link aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug, Port isolation, QinQ, VLAN mapping, Super VLAN, PVLAN, Voice VLAN, STP, MSTP, G.8032, Loopback-detection, Error-disable, GVRP, MLAG, VLAN isolation |
|||
|
Standard L3 protocol |
IP Protocol |
ARP, DHCP, DHCPv6, DHCP Server, DHCPv6 Server, DHCPv6 Client, DHCP Relay, DHCPv6 Relay, DHCP Option82, DNS, GRE, IPIP, IPv6 over IPv4, ISATAP, IPv4 over IPv6, IPv6 over IPv6 |
||
|
Routing Protocol |
Static route for IPv4&IPv6, RIPv1/v2, RIPng, OSPFv2, OSPFv3, IS-IS, IS-ISv6, BGP, BGPv6, Policy Route |
|||
|
Multicast |
L2 multicast |
IGMPv1/v2/v3 Snooping, multicast VLAN |
||
|
L3 multicast |
IGMPv1/v2/v3, PIM-SM, IPv6 PIM-SM, IPv6 PIM-SSM, PIM-DM, MSDP, MLD-snooping |
|||
|
QoS & ACL |
QoS |
802.1p, DSCP, and other priority mapping, SP, WRED, WDRR, Flow classification, Traffic monitoring, Traffic shaping, Congestion management, Congestion avoidance, Flow-based mirroring |
||
|
ACL |
Standard IP ACL, extended IP ACL, standard MAC ACL, extended MAC ACL, extended Hybrid ACL, Standard IPv6 ACL, extended IPv6 ACL |
|||
|
Virtualization |
Stacking |
H-VST, M-VST, M-LAG |
||
|
MAD |
MAD LACP, MAD BFD, MAD Fast-hello |
|||
|
Zero Touch Provisioning |
ZTP mode A |
ZTP provisioning through DHCP server |
||
|
ZTP mode B |
ZTP provisioning trough USB flash disk |
|||
|
MPLS VPN |
L3 BGP MPLS |
MPLS LDP, MPLS L3 VPN, MPLS Option-A & Option-B, MPLS Ping/traceroute |
||
|
MCE |
Multi-VRF |
|||
|
Data Center |
VxLAN |
Static VxLAN, EVPN VxLAN |
||
|
Security & Network Reliability |
Security |
ARP Check, AARF, AARF ARP-Guard, CPU Protection, Port Security, IP Source Guard, IPv6 Source Guard, ND-Snooping, DHCP Snooping, DHCPv6 Snooping, Dynamic ARP Inspection, Host Guard, PPPoE+, AAA, 802.1x, Portal, Anti-attack detect|drop|flood|log, URPF, AARF |
||
|
Network Reliability |
HA, ULFD, G.8032, ULPP, Monitor Link, VRRP, VRRPv3, VBRP, BFD, EEP, CPU protection |
|||
|
Management and Monitoring |
Network Management |
SNMP v1/v2/v3, MIB, RMON, SYSLOG, DNS, CLI, Telnet, FTP/TFTP, Debug, NTP, Keepalive Gateway |
||
|
Network Monitoring |
SPAN, RSPAN, IPFIX, Netconf, sFlow, LLDP, IP-SLA, CWMP, NDSP, Telemetry, OAM, SDN Controller |
|||
Power Consumption Specification
|
Model Name |
Max. Power Consumption |
Model Name |
Max. Power Consumption |
|
NSM115-MPUB |
42W |
NSM115-MPUC |
42W |
|
NSM115-SFUB |
105W |
NSM115-SFUC |
150W |
|
NSM115-SFUF |
150W |
FAN-06A-01B |
105W |
|
FAN-15B-01B |
125W |
FAN-20A-01 |
150W |
|
NSM115-48GET4XGEF-EC |
72W |
NSM115-32XGEF-EC |
111W |
|
NSM115-48GEF4XGEF-EC |
110W |
NSM115-48XGEF-EC |
162W |
|
NSM115-24GET24GEF4XF-EC |
94W |
NSM115-16XGEF4QXGE-EC |
92W |
|
NSM115-40GETP8LTP4XF-EC |
67W |
NSM115-8QXGE-EC |
74W |
|
NSM115-16XGEF-EC |
61W |
NSM115-12QXGE-EC |
111W |
|
NSM115-8QFP-DA |
95W |
NSM115-12QFP-DA |
120W |
Typical Application
Maipu BD-Campus Network
Order Information
|
Model |
Description |
|
NSS11500-04 Host |
|
|
NSS11500-04 |
V2 Version: NSS11500-04 chassis, two control engine slots, six switching engine slots, four line card slots, two fan slots, four power slots. |
|
NSM115-MPUB |
NSM115-MPUB Control Engine, for NSS11500-04, supporting active/standby backup function |
|
NSM115-SFUB |
NSM115-SFUB Switching Engine, for NSS11500-04 |
|
FAN-06A-01B |
FAN-06A-01B Fan module for NSS11500-04 |
|
AD800M-HV1B |
AD800M-HV1B, 800W AC power module |
|
AD1600M-HV0B |
AD1600M-HV0B, 1600W AC power module |
|
DD1600M-5V0B |
DD1600M-5V0B, 1600W DC power module |
|
NSS11500-04 Line Cards |
|
|
NSM115-48GET4XGEF-EC |
48-Port 100/1000M electric interfaces, 4-Port 10G SFP+ interfaces line card |
|
NSM115-48GEF4XGEF-EC |
48-Port 1000M SFP interfaces, 4-Port 10G SFP+ interfaces line card |
|
NSM115-24GET24GEF4XF-EC |
24-Port 100/1000M electric interfaces, 24-Port 1000M SFP interfaces, 4-Port 10G SFP+ interfaces line card (Note: Configure 2*NSM115-SFUB Switching Engines) |
|
NSM115-40GETP8LTP4XF-EC |
40-Port 100/1000M electric PoE+ interfaces (Support 802.3af/at), 8-Port 100M/1G/2.5G electric PoE++ interfaces (Support 802.3af/at/bt), 4-Port 10G SFP+ interfaces line card (Note: Configure 2*NSM115-SFUB Switching Engines) |
|
NSM115-16XGEF4QXGE-EC |
16-Port 10G SFP+ interfaces, 2-Port 40G QSFP+ interfaces line card |
|
NSM115-16XGEF-EC |
16-Port 10G SFP+ interfaces line card |
|
NSM115-32XGEF-EC |
32-Port 10G SFP+ interfaces line card |
|
NSM115-48XGEF-EC |
48-Port 10G SFP+ interfaces line card |
|
NSM115-8QXGE-EC |
8-Port 40G QSFP+ interfaces line card |
|
NSM115-12QXGE-EC |
12-Port 40G QSFP+ interfaces line card |
|
NSM115-8QFP-DA |
8-Port 40/100G QSFP28 interfaces line card |
|
NSS11500-08 Host |
|
|
NSS11500-08 |
V2 Version: NSS11500-08 chassis, two control engine slots, six switching engine slots, eight line card slots, two fan slots, eight power slots. |
|
NSM115-MPUC |
NSM115-MPUC Control Engine, for NSS11500-08, supporting active/standby backup function |
|
NSM115-SFUC |
NSM115-SFUC Switching Engine, for NSS11500-08 |
|
FAN-15B-01B |
FAN-15B-01B Fan module for NSS11500-08 |
|
AD800-1D005M |
AD800-1D005M, 800W AC power module |
|
AD1600-1D005M |
V2 Version: AD1600-1D005M, 1600W AC power module |
|
DD1600M-5V1F |
DD1600M-5V1F, 1600W DC power module |
|
NSS11500-08 Line Cards |
|
|
NSM115-48GET4XGEF-EC |
48-Port 100/1000M electric interfaces, 4-Port 10G SFP+ interfaces line card |
|
NSM115-48GEF4XGEF-EC |
48-Port 1000M SFP interfaces, 4-Port 10G SFP+ interfaces line card |
|
NSM115-24GET24GEF4XF-EC |
24-Port 100/1000M electric interfaces, 24-Port 1000M SFP interfaces, 4-Port 10G SFP+ interfaces line card (Note: Configure 2*NSM115-SFUC Switching Engines) |
|
NSM115-40GETP8LTP4XF-EC |
40-Port 100/1000M electric PoE+ interfaces (Support 802.3af/at), 8-Port 100M/1G/2.5G electric PoE++ interfaces (Support 802.3af/at/bt), 4-Port 10G SFP+ interfaces line card (Note: Configure 2*NSM115-SFUC Switching Engines) |
|
NSM115-16XGEF4QXGE-EC |
16-Port 10G SFP+ interfaces, 2-Port 40G QSFP+ interfaces line card |
|
NSM115-16XGEF-EC |
16-Port 10G SFP+ interfaces line card |
|
NSM115-32XGEF-EC |
32-Port 10G SFP+ interfaces line card |
|
NSM115-48XGEF-EC |
48-Port 10G SFP+ interfaces line card |
|
NSM115-8QXGE-EC |
8-Port 40G QSFP+ interfaces line card |
|
NSM115-12QXGE-EC |
12-Port 40G QSFP+ interfaces line card |
|
NSM115-8QFP-DA |
8-Port 40/100G QSFP28 interfaces line card |
|
NSS11500-12 Host |
|
|
NSS11500-12 |
V2 Version: NSS11500-12 chassis, two control engine slots, six switching engine slots, twelve line card slots, four fan slots, eight power slots. |
|
NSM115-MPUC |
NSM115-MPUC Control Engine, for NSS11500-12, supporting active/standby backup function |
|
NSM115-SFUF |
NSM115-SFUF Standard Switching Engine, for NSS11500-12 |
|
FAN-20A-01 |
FAN-20A-01 Fan module for NSS11500-12 |
|
AD1600-1D005M |
V2 Version: AD1600-1D005M, 1600W AC power module |
|
DD1600M-5V1F |
DD1600M-5V1F, 1600W DC power module |
|
NSS11500-12 Line Cards |
|
|
NSM115-48GET4XGEF-EC |
48-Port 100/1000M electric interfaces, 4-Port 10G SFP+ interfaces line card |
|
NSM115-48GEF4XGEF-EC |
48-Port 1000M SFP interfaces, 4-Port 10G SFP+ interfaces line card |
|
NSM115-24GET24GEF4XF-EC |
24-Port 100/1000M electric interfaces, 24-Port 1000M SFP interfaces, 4-Port 10G SFP+ interfaces line card (Note: Configure 2*NSM115-SFUF Switching Engines) |
|
NSM115-40GETP8LTP4XF-EC |
40-Port 100/1000M electric PoE+ interfaces (Support 802.3af/at), 8-Port 100M/1G/2.5G electric PoE++ interfaces (Support 802.3af/at/bt), 4-Port 10G SFP+ interfaces line card (Note: Configure 2*NSM115-SFUF Switching Engines) |
|
NSM115-16XGEF4QXGE-EC |
16-Port 10G SFP+ interfaces, 2-Port 40G QSFP+ interfaces line card |
|
NSM115-16XGEF-EC |
16-Port 10G SFP+ interfaces line card |
|
NSM115-32XGEF-EC |
32-Port 10G SFP+ interfaces line card |
|
NSM115-8QXGE-EC |
8-Port 40G QSFP+ interfaces line card |
|
NSM115-8QFP-DA |
8-Port 40/100G QSFP28 interfaces line card |
: NSS11500 Series L3 Campus Core Switch Datasheet-20250402
