IAP300-830-PTE Ceiling Mounted AP
· Support 2.5G Interface and Performance up to 5.4Gbps
· Support 802.11ax MU-MIMO Technology
· Support 802.11K/V/R Roaming Technology
· Central Managed by IGW500 Internet Gateway
· Self-Provisioning Networking Supported
· Lifetime Free Maipu MMC Cloud Management
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
· Support the new 802.11ax standard
The IAP300-830-PTE is designed with a tri-band configuration, operating in a 2.4GHz + 5.2GHz + 5.8GHz mode, all adopting the latest generation Wi-Fi wireless standard - 802.11ax protocol. The maximum connection speed can reach 5.4Gbps. The 2.4GHz frequency band provides access services for low-end terminals, while the dual 5GHz frequency bands deliver a truly gigabit-level high-speed experience.
· Intelligent AP management technology, AP zero configuration, plug and play
In the FIT AP application mode, the zero-configuration FIT AP can be found and automatically connected to the IGW500 series converged internet gateway through the L2/L3 network. The converged gateway can configure, operate and manage the FIT AP. IGW500 converged gateway supports rich L2/L3 functions, and forms the management and monitoring of FIT AP through the networks.
· Support 802.11k/v/r protocols for fast WiFi roaming
The IAP300-830-PTE supports intelligent fast roaming technology, which significantly improves user experience when mobile clients move between APs. It achieves seamless mobility and smooth roaming by optimizing the switching process between APs. This ensures service continuity and reliability for latency-sensitive applications running over the WLAN.
Compared to basic roaming solutions, the fast roaming technology provides faster AP switching, lower packet loss, and smooth experience for roaming clients. This is critical for mobility-enabled WLAN applications.
· Support MU-MIMO, higher capacity
The IAP300-830-PTE supports MU-MIMO (multi-user multi-input multi-output), realize concurrent transmission of multiple Wi-Fi users, double the wireless effective capacity, and easily deal with high-density scenes. The wired adopts two gigabit ethernet interfaces for uplink, without the bottleneck of wireless bandwidth.
5GHz has more abundant bandwidth resources and less wireless interference. 802.11ax protocol adopts the latest modulation technology to greatly improve the wireless rate. Compared with traditional device, it has higher speed and larger capacity. At the same time, it realizes the effects of intelligent load and 5GHz prior, improves the utilization of 5GHz band, and improves the total capacity.
· Unique antenna signal optimization algorithm, improving AP signal coverage
The unique antenna signal optimization algorithm is adopted to make IAP300-830-PTE signal have wide coverage and strong penetration ability. A single AP can cover 25-50 meters based on different environment scenarios which can reduce customers' investment in hardware equipment.
· SSID + VLAN binding, ensuring information security
The IAP300-830-PTE supports transmitting 48 SSIDs at the same time. By setting different passwords for each SSID, dividing individual VLAN ID and assigning different network segments, it is easy to realize the effect that different wirelesses (SSID) transmit different services. By this way, sensitive information can be safely isolated internally.
· One-key network optimization, improving the maintenance efficiency
IAP300-830-PTE support one-key network auto channel optimization function. This will greatly improve the maintenance efficiency and reduce the troubleshooting cost.
· Green design and energy saving
The IAP300-830-PTE adopts professional green environmental protection and low power consumption design. The device has low calorific value and supports green AP mode. It also supports U-APSD that allows devices to enter a low-power sleep mode when not actively transmitting data while ensuring they remain reachable.
Product Specifications
|
Product Model |
IAP300-830-PTE |
|
Version |
V2 |
|
Interface Specification |
|
|
Service Port |
1*10/100/1000M/2.5Gbps Base-T adaptive Ethernet copper port, 802.3at PoE (LAN1) 1*10/100/1000Mbps Base-T adaptive Ethernet copper port, PoE Out 6.5W Max (LAN2) |
|
USB Port |
1*USB 2.0 |
|
Serial Console Interface |
1*RJ45 Port |
|
Power Interface |
1*12VDC (Nominal, +/-5%) |
|
Indicators |
1* Multi-Color LED (Support custom time to turn off the indicator light) |
|
Reset Button |
1* Rest Button (Factory Reset; WPS) |
|
Environment Specification |
|
|
Working Temperature |
0℃ to +45℃ |
|
Working Humidity |
10% to 90% non-condensing |
|
Storage Temperature |
-40℃ to +70℃ |
|
Storage Humidity |
5% to 95% non-condensing |
|
IP Rating |
IP51 |
|
Weight |
0.85 kg |
|
Dimension(W*D*H) mm |
230*230*51 |
|
Hardware Specification |
|
|
Installation Mode |
Ceiling Mounting |
|
Power Supply |
Adapter: DC 12V/2.0A (optional) PoE Standard: IEEE 802.3at When both DC and PoE power sources are available, DC power takes priority over PoE. |
|
Power Consumption |
<20W (without PoE output and USB output) The maximum transmit power of the AP complies with the regulations of different countries and regions |
|
Wireless Specification |
|
|
RF Design |
Triple-band design: - Radio1: 2.4GHz, 2 streams: 2*2 - Radio2: 5.2GHz, 2 streams: 2*2 - Radio3: 5.8GHz, 2 streams: 2*2 |
|
Operating Bands |
- Radio1: 2.400–2.4835GHz - Radio2: 5.150–5.350GHz, - Radio3: 5.47–5.725GHz, 5.725–5.850GHz |
|
Transmission Rate |
- 802.11b: 1Mbps, 2Mbps, 5.5Mbps, 11Mbps - 802.11a/g: 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps - 802.11n: 6.5Mbps-300Mbps (MCS0-MCS31, HT20-HT40), 400Mbps with 256-QAM - 802.11ac: 6.5Mbps-866Mbps (MCS0-MCS9, NSS=1-2, VHT20-VHT160) - 802.11ax (2.4GHz): 8.6Mbps-574Mbps (MCS0-MCS11, NSS=1-2, HE20-HE40) - 802.11ax (5GHz): 8.6Mbps-2,402Mbps (MCS0-MCS11, NSS = 1-2, HE20-HE160) |
|
Antenna |
Internal 6 Antennas |
|
Antenna Gain |
2.4GHz: 4.0dBi 5.2GHz: 4.0dBi 5.8GHz: 4.0dBi |
|
Transmit Power |
2.4GHz: +23dBm 5.2GHz: +23dBm 5.8GHz: +23dBm Note: The actual transmit power complies with the regulatory requirements for radio frequency emissions in various countries and regions |
|
Transmit Power Adjustment |
1 dBm |
|
Modulation Mode |
- 802.11b: BPSK, QPSK, CCK - 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM - 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM - 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
|
Modulation and Encoding |
- Low Density Parity Check (LDPC) |
|
Advanced RF Features |
- TPC (Transmit Power Control) |
|
Fast Roaming |
- 802.11 K/V/R |
|
Rate Limitation |
- Based On SSIDs |
|
Load Balancing |
- Based On Users |
|
Software Specification |
|
|
WIFI Standards |
IEEE 802.11a/b/g/n/ac/ax |
|
SSID Numbers |
48*SSIDs (2.4GHZ+5.2GHZ+5.8GHZ) |
|
Channelization |
20, 40, 80, 160 MHz |
|
STA Capacity |
512 |
|
Recommend Users |
150-200 |
|
Working Mode |
FIT/FAT Mode |
|
Network Features |
PPPoE Client, DHCP Server/Client, Static IP, DNS Proxy, Bridge, NAT (Note: FAT Working Mode) |
|
Security Type |
Open, PSK, WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, Portal, 802.1X, Radius |
|
Working Bandwidth |
- 802.11ax: HE160, HE80, HE40, HE20 - 802.11ac: VHT160, VHT80, VHT40, VHT20 - 802.11n: HT40, HT20 |
|
Data Rate |
- Radio1: 2.4GHz, 574Mbps - Radio2: 5GHz, 2.402Gbps - Radio2: 5GHz, 2.402Gbps - Combined: 5.378Gbps |
|
MIMO Technologies |
- Multi-User Multiple Input Multiple Output (MU-MIMO) - Maximum Ratio Combining (MRC) - Dynamic MIMO power saving |
|
Energy Saving |
- U-APSD - Green AP mode |
|
Advanced WIFI Features |
- Orthogonal Frequency Division Multiple Access (OFDMA) - Short GI (Short Guard Interval) |
Antenna Patterns
· 2.4GHz Wi-Fi(antennas 1,2)

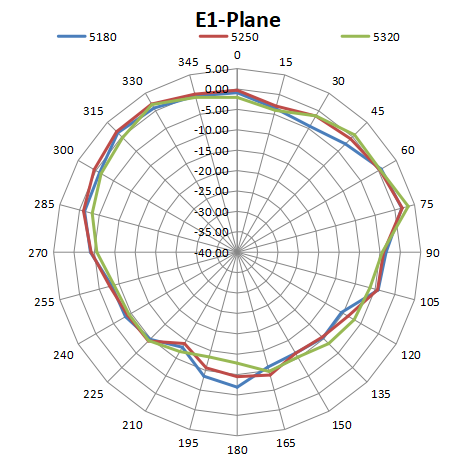

· 5.2GHz Wi-Fi(antennas 1,2)

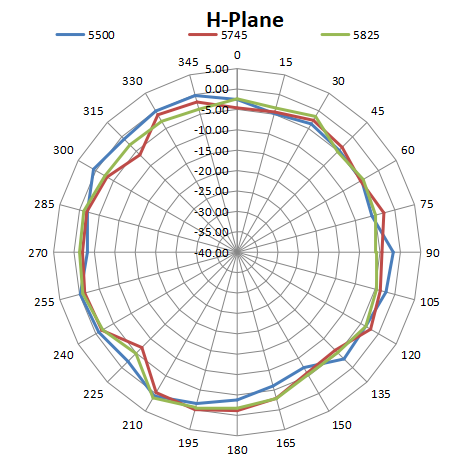

· 5.8GHz Wi-Fi(antennas 1,2)
Typical Application

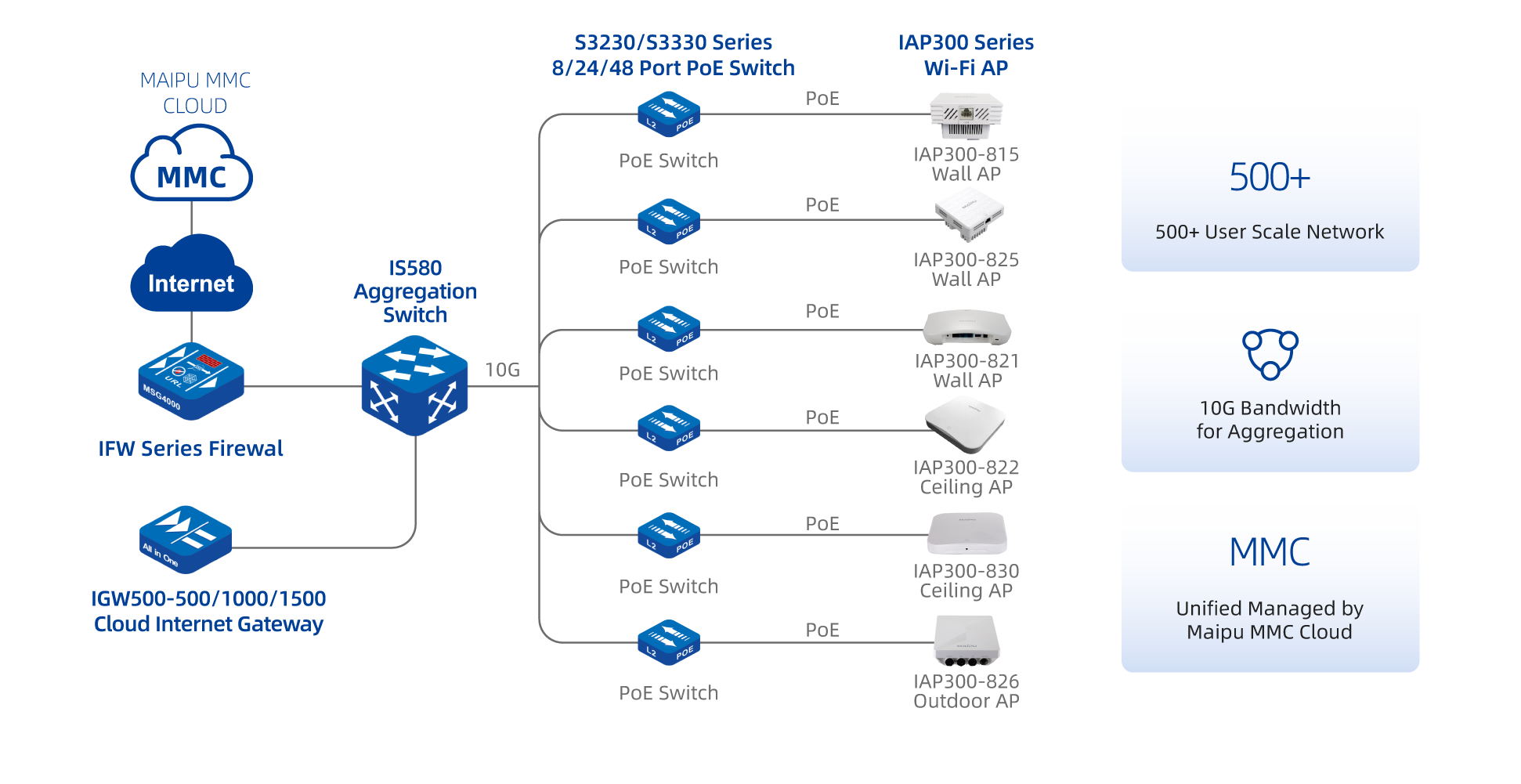

Scenario One: Medium-Sized Networking
Scenario Two: Branch Networking
Scenario Three: Small Office Networking
Order Information
|
Model |
Description |
|
IAP300 Series Wi-Fi6 Access Point |
|
|
IAP300-830-PTE |
V2 Version: IAP300-830-PTE, ceiling mount Wi-Fi6 802.11a/b/g/n/ac/ax, triple-band, dual mode, forwarding performance of the whole device 5.4Gbps, 3*2:2 MIMO, inbuilt antennas, PoE power input, 1*2.5G LAN Port(PoE), 1*1000M LAN Port. (installation accessory included) |
:
