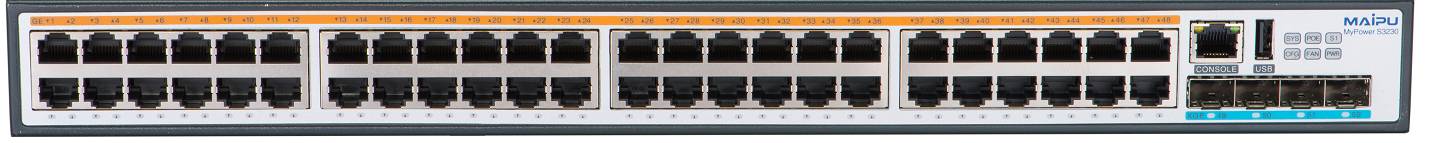

S4330 Series Stackable L3 Aggregation Switch

S4330 Series Stackable L3 Aggregation Switch

The S4330 series switch is a high-performance stackable L3 aggregation routing switch developed by Maipu. It is applied in enterprise campus network and easy to deploy Layer3 switching solution that offers enhanced security and 10GE uplinks, RIP/OSPF/BGP/IS-IS, L2&L3 Multicast, VST/M-LAG stacking enabled and flexible management like SDN management and Cloud managed.

The S4330 series switch can be used as L3 access devices on large-sized campus networks. They can also be used as aggregation devices on small and medium-sized campus networks. The switches help build highly reliable enterprise grade campus networks that are easy to expand and manage.

The S4330 series switch includes S4330-30TXF, S4330-30TXP, S4330-54TXF, S4330-54TXP, S4330-54GXF, S4330-54TGXF models.

Product Features

Intelligent stacking technology

The S4330 series switch is equipped with Maipu VST stacking function that allows a minimum of four devices to be stacked into one logical device via the 10G SFP+ ports. VST (Virtual Switching Technology) stacking combines multiple switches to form a logical virtual switch, improving device and link reliability, network expansion, and simplifying configuration and management.

Software Defined Network

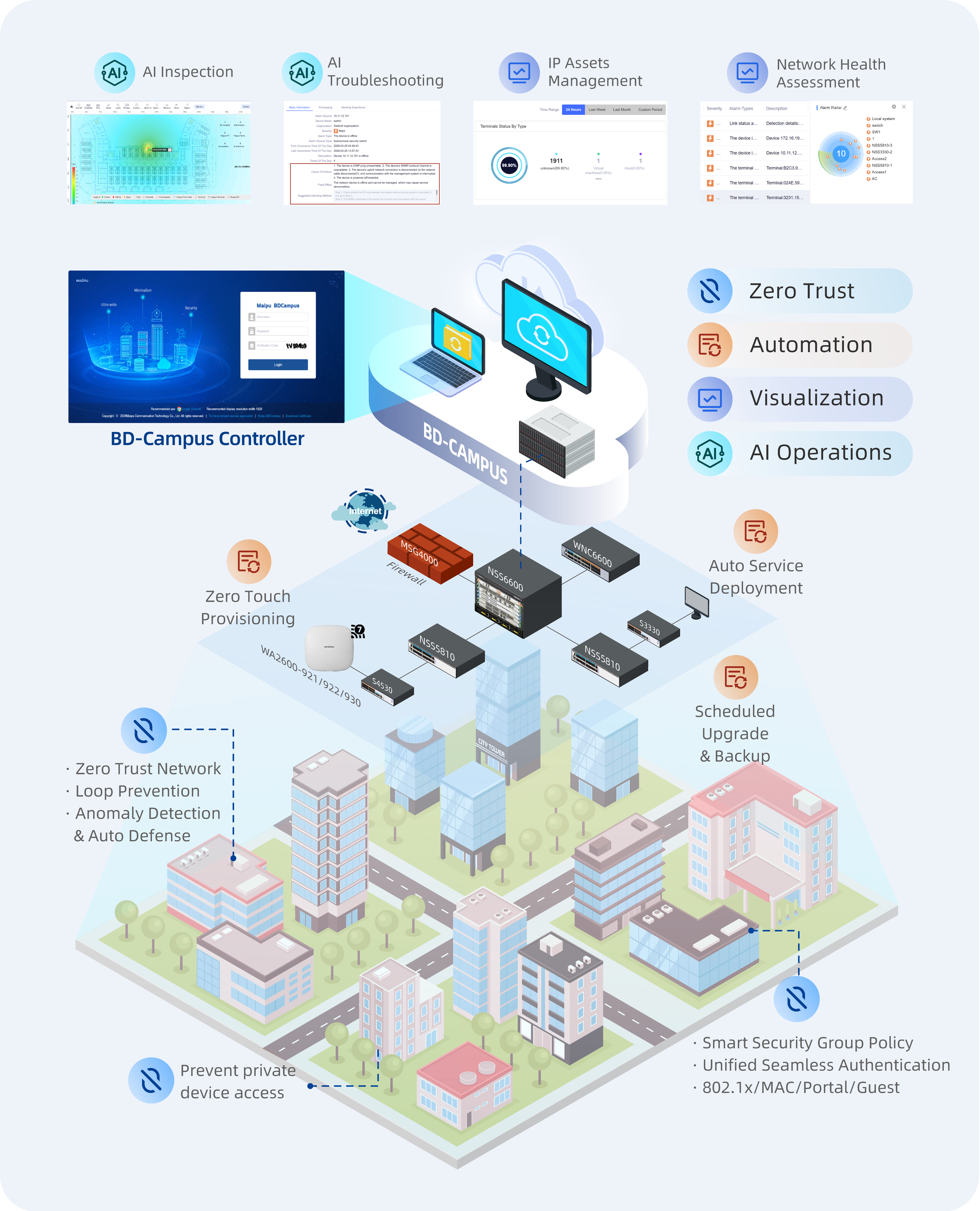

The S4330 series switch is capable of being managed by Maipu's BD-LAN controller, an integrated SDN platform designed for campus networks. The utilization of software-defined network technologies in this platform simplifies the deployment, management, and security of campus networks, while also enabling network teams to complete the majority of their work directly on the BD-LAN controller platform. When compared with traditional methods, implementing a BD-LAN solution can significantly reduce network deployment times, simplify network maintenance, improve troubleshooting efficiency, and ultimately lead to overall cost savings for customers.

Zero Touch Provisioning

The S4330 series switch features advanced Zero Touch Provisioning (ZTP) capabilities, streamlining the deployment process for network administrators. With ZTP, the switch can automatically discover and load necessary version files from a file server via a DHCP server or a USB flash disk, eliminating the need for manual intervention during initial setup. This automation reduces configuration errors, accelerates the deployment process, and enhances overall network efficiency, making the S4330 series switch an ideal choice for scalable and dynamic network environments.

High availability

The S4330 series switch offers advanced redundancy and reliability features, catering to diverse networking requirements. In addition to supporting traditional spanning tree protocols such as STP, RSTP, and MSTP, the switch also complies with the ITU-T G.8032 international standard. This Ethernet Ring Protection Switching (ERPS) protocol enables rapid 50ms failover within Ethernet ring network topologies, ensuring seamless connectivity and minimal downtime.

Furthermore, the S4330 series switch incorporates the Virtual Router Redundancy Protocol (VRRP), facilitating uplink backup capabilities. By connecting to multiple aggregation switches via multiple links, the switch significantly enhances access device reliability, promoting network stability and resilience.

Perfect security policy

The S4330 series switch offers a comprehensive suite of security features, including user authentication, port security, ACLs, loopback detection, and 802.1X authentication. It also incorporates IP Source Guard, DHCP/ND Snooping, Host Guard, Dynamic ARP Inspection, and PPPoE+ security mechanisms. These robust security functions ensure user access and network protection.

Additionally, the switch supports MAC+IP+VLAN binding, 802.1X authentication, and countermeasures against network storm, DOS/DDOS, ARP, and protocol packet attacks. This makes the S4330 series ideal for large-scale, multi-service, and complex-traffic networks.

Advanced QoS

The S4330 series switch offers sophisticated QoS capabilities for optimal network performance. Supporting eight queues per port and advanced scheduling algorithms such as SP, RR, WRR, and WDRR, the switch effectively manages traffic prioritization and resource allocation.

The switch accommodates diverse priority mapping techniques, including 802.1p, CoS, and DSCP, enabling fine-grained control over traffic classification and prioritization. With granular port traffic rate limiting and time-based controls, network administrators can regulate bandwidth usage as needed.

To optimize network performance and minimize congestion, the S4330 series switch employs advanced congestion management techniques, such as Tail Drop and RED packet loss algorithms. These mechanisms help maintain seamless network operation while ensuring efficient delivery of critical data.

IPv4&IPv6 Dual-stack ability

The S4330 series switch is built on an IPv4/IPv6 dual-stack platform, delivering hardware-based, wire-speed forwarding for both IPv4 and IPv6 traffic. The switch supports IPv4/IPv6 Layer 3 routing protocols, including RIPng, OSPFv3, BGP4+, and IS-IS for IPv6. These IPv6 capabilities enable seamless deployment on pure IPv4, pure IPv6, or dual-stack networks, facilitating a smooth transition from IPv4 to IPv6 infrastructure.

Rich Network Management

The S4330 series switch offers a comprehensive set of management options. These options encompass network management protocols like SNMP and TR-069, configuration and control options like Netconf/Yang and CLI, monitoring and diagnostic tools such as RMON and SYSLOG. These versatile features enable network administrators to effectively manage, monitor, and maintain optimal network performance both locally and via the cloud.

Free Licensing Policy

Maipu consistently adheres to a "One-time investment" free license policy, ensuring that standard and advanced features are not differentiated across versions. This approach guarantees that customers receive new firmware updates without incurring additional charges. In comparison to other manufacturers, Maipu's free license policy safeguards both short-term and long-term user investments, providing an unparalleled value proposition.

Product Specifications

Model		S4330-30TXF	S4330-30TXP		S4330-54TXF	S4330-54TXP	S4330-54GXF	S4330-54TGXF
Hardware Specification
Physical Traffic Port		2410/100/ 1000M Base-T interfaces 410G SFP+ interfaces	2410/100/ 1000M Base-T interfaces 410G SFP+ interfaces		4810/100/ 1000M Base-T interfaces 410G SFP+ interfaces	4810/100/ 1000M Base-T interfaces 410G SFP+ interfaces	481G SFP interfaces 410G SFP+ interfaces	3210/100/ 1000M Base-T interfaces 161G SFP interfaces 4*10G SFP+ interfaces
Extension Slot		One	One		One	One	One	One
Power Slot		Dual	Dual		Dual	Dual	Dual	Dual
Fixed Fan		Yes	Yes		Yes	Yes	Yes	Yes
PoE Power Consumption		N/A	380W/760W		N/A	380W/760W/1440W	N/A	N/A
PoE Standard		N/A	IEEE 802.af/at		N/A	IEEE 802.af/at	N/A	N/A
Power Consumption (Without PoE)		≤34W	≤34W		≤46W	≤46W	≤76W	≤49W
Dimension(WDH)mm		44242044.2	44242044.2		44242044.2	44242044.2	44242044.2	44242044.2
Physical Management Port		1RJ45 Console 1USB2.0 Port
Input Voltage		AC:100—240V/50-60Hz DC: 40~57V
Temperature		Work Temperature: -5℃ to 50℃ Storage Temperature: -40℃ to 70℃
Humidity		Work Humidity:10%～90%, non-condensing Storage Humidity:5%～95%, non-condensing
Anti-Lightning		6KV
Anti-Static		6KV
MTBF		>100000 hours
Performance Parameters
Switching Capability (Duplex)		168Gbps	168Gbps		216Gbps	216Gbps	216Gbps	216Gbps
Packet Forwarding Rate		125Mpps	125Mpps		160Mpps	160Mpps	160Mpps	160Mpps
MAC Address Entry		32K	32K		32K	32K	32K	32K
Jumbo Frame		12K	12K		12K	12K	12K	12K
ARP Entry		8K	8K		8K	8K	8K	8K
ND Entry		8K	8K		8K	8K	8K	8K
VLAN Entry		4K	4K		4K	4K	4K	4K
LACP Group		64	64		64	64	64	64
LACP Member in Group		8	8		8	8	8	8
MSTP Instance		64	64		64	64	64	64
IPv4 Routing Entry		12K	12K		12K	12K	12K	12K
IPv6 Routing Entry		4K	4K		4K	4K	4K	4K
L2 Multicast Entry		6K	6K		6K	6K	6K	6K
L3 Multicast Entry		6K	6K		6K	6K	6K	6K
VRF Entry		256	256		256	256	256	256
VRRP Group		255	255		255	255	255	255
Software Specification
Interface	Physical Interface			Auto MDI/MDIX , Port Type UNI/NNI, Port Speed, Port MTU, Switch Port, Port Loopback
	Green Energy			Port Energy Control
	Logic Interface			Loopback Interface, Tunnel Interface, Null Interface
	MAC Address Management			Storm Control, Flood Control, MAC Address Aging Time, Mac Address Learning on\|off, Mac Address Learning Limitation, Mac Address VLAN Bunding, MAC Debug
VLAN	VLAN Management			VLAN, QinQ, Flexible QinQ, VLAN PVID, VLAN Tag/Untag, VLAN Trunk, MAC VLAN, Protocol VLAN, Subnet VLAN, Super VLAN, Voice VLAN, Private VLAN, Guest VLAN, VLAN Debug, GVRP, VLAN Isolation
Ring Protection	Spanning Tree Protocols			STP/RSTP/MSTP, BPDU Guard, Flap Guard, Loop Guard, Root Guard, TC Guard
	Other Ring Protocols			VIST/VIST+, G.8032(ERPSv1&v2)
Link Aggregation	LACP Configuration			LACP Link Aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug
Error Handling	Error-disable Configuration			Error-disable Based on bpduguard\|Dai\|DHCP Snooping\|Link-Flap\|Loopback-detect\|Port Security\|Storm Control\|Transceiver Power, Error-disable Recovery
Fault Detection	Fault Detection Features			ULFD, Track, Loop-back Detection, CFM(802.1ag)
IP Services	IP Protocol			ARP, DNS, NTP Server/Client, ICMP, ECMP, GRE, IPIP, IPv6 over IPv4, ISATAP, IPv4 over IPv6, IPv6 over IPv6
	Routing Protocol			Static Routing v4/v6, RIP/RIPng, OSPF v2/v3, BGP/BGP+, ISIS/ISIS v6, VRRP/VRRP v3, VBRP, PBR/PBR v6, IP-VRF
	DHCP Service			DHCP v4/v6 Server, DHCP v4/v6 Client, DHCP v4/v6 Relay, DHCP Snooping, DHCP Option51/82
Multicast Protocols	L2 Multicast Protocols			IGMPv1/v2/v3 Snooping, IGMP Snooping Proxy, MLD Snooping, MVR, MVP
	L3 Multicast Protocols			IGMPv1/v2/v3, PIM v4/v6-SM, PIM v4/v6-SSM, PIM-DM, PIM-SDM,
QoS	Priority Mapping			802.1P Priority, DSCP priority
	Traffic Classification			Three Color Marker, Priority Remark, Traffic Redirect, Traffic Meter, Traffic Mirror
	Traffic Control			Rate Limit, Traffic Shaping
	Scheduling Algorithm			SP, RR, WRR, WDRR, SP+WRR, SP+WDRR
	Congestion Management			Tail-drop, RED, WRED
Security	Port Security			Port Security On aging\|deny\|permit\|violation\|ACL
	Network Access Control			IP Source Guard(ISG), DHCP Snooping, ND Snooping, Host Guard
	Threat Prevention			Dynamic ARP Inspection(DAI), ARP Check, AARF ARP-Guard, ARP Guard, PPPoE+
	Access Control List			Standard IP ACL, Extended IP ACL, Standard MAC ACL, Extended MAC ACL, Standard Hybrid ACL, Extended Hybrid ACL, Standard IPv6 ACL, Extended IPv6 ACL, Time-based ACL
	Anti-Attack			Anti-Attack Detect\|Drop\|Flood\|Log, URPF, White List, Black List
	AAA			AAA, Radius, TACACS+, 802.1x, Portal
High Availability	Device Virtualization			H-VST, M-VST
	Multi-Active Detection			MAD LACP, MAD BFD, MAD Fast-Hello, MAD LACP
	High Availability Protocols			HA, ULFD, UDLD,G.8032, ULPP, Monitor Link, VRRP, VRRPv3, VBRP, EEP, BFD with Static\|RIP\|OSPF\|BGP\|ISIS, CPU protection
Configuration and Maintenance	Monitoring and Diagnostics			SPAN, RSPAN, VLAN SPAN, sFlow, Telemetry, LLDP, IP-SLA
	Device Management			TR069, SNMP v1/v2/v3, MIB, RMON, SYSLOG, WEB(HTTP/HTTPS), CLI, Telnet, FTP/SFTP/TFTP/FTPS, Debug, Telemetry, ISSU, Hot Patch, Keepalive Gateway, Cloud Management
	Zero Touch Provisioning			ZTP Provisioning Through DHCP Server, ZTP Provisioning Through USB Flash Disk
Network Virtualization	Software Defined Networking (SDN)			Netconf/Yang
IEEE Standard	IEEE 802.3 (10BASE-T) IEEE 802.3u (100BASE-T) IEEE 802.3z (1000BASE-X) IEEE 802.3ab (1000BASE-T) IEEE 802.3ae (10G BASE-X) IEEE 802.3ah (Ethernet in the First Mile Operations, Administration, and Maintenance) IEEE 802.1x (Port-Based Network Access Control) IEEE 802.3ad (Link Aggregation) IEEE 802.3x (Flow Control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.1d (Spanning Tree Protocol) IEEE 802.1ab (Link Layer Discovery Protocol) IEEE 802.1Q (Virtual LAN) IEEE 802.1w (Rapid Spanning Tree Protocol) IEEE 802.1s (Multiple Spanning Tree Protocol) IEEE 802.1p (Class of Service Priority) IEEE 802.1ag (Connectivity Fault Management)

Open



Typical Application

Campus LAN Network

ISP FTTH Network

Order Information

Model	Description
S4330 Series Host
S4330-30TXF	24100/1000M Base-T interfaces, 410G SFP+ interfaces, One Extension Slot, Dual Power Slots.
S4330-30TXP	24100/1000M Base-T interfaces, 410G SFP+ interfaces, One Extension Slot, Dual Power Slots, PoE&PoE+ Enable.
S4330-54TXF	48100/1000M Base-T interfaces, 410G SFP+ interfaces, One Extension Slot, Dual Power Slots.
S4330-54TXP	48100/1000M Base-T interfaces, 410G SFP+ interfaces, One Extension Slot, Dual Power Slots, PoE&PoE+ Enable.
S4330-54GXF	48100/1000M SFP interfaces, 410G SFP+ interfaces, One Extension Slot, Dual Power Slots.
S4330-54TGXF	32100/1000M Base-T interfaces, 16100/1000M SFP interfaces, 4*10G SFP+ interfaces, One Extension Slot, Dual Power Slots.
Power Module
AD120-1S005E	120W AC Power Module (For Non-POE model)
AD500-1D005E	500W AC Power Module (For POE model)
AD880-1D005E	880W AC Power Supply Module (Only for S4330-54TXP)
DD250-5D005E	120W DC Power Module (For Non-POE model)
Extension Module
SM4C-2XGEF	2-Port 10G SFP+ Extension Module
Stacking Cable
SFP-STACK-15	High speed stacking cable, SFP+ to SFP+,10Gbps, L=1.5m
SFP-STACK-30	High speed stacking cable, SFP+ to SFP+,10Gbps, L=3.0m
SFP-STACK-50	High speed stacking cable, SFP+ to SFP+,10Gbps, L=5.0m

:S4330 Series L3 Stackable 10G Aggregation Switch Datasheet_20250402
