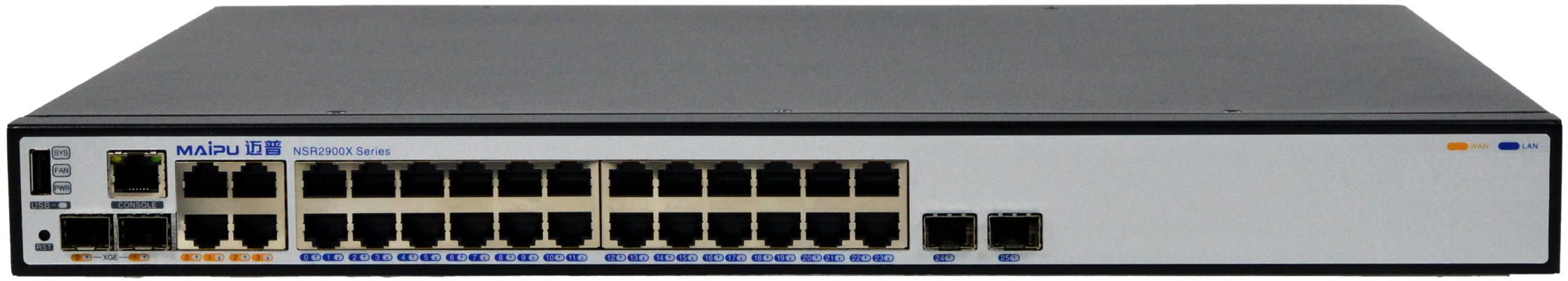

NSR2900X-14D MPLS Access Router
The NSR2900X-14D modular access router by Maipu is a new-generation enterprise-class router designed for small and medium-sized branch offices of enterprises and government agencies. It integrates diverse WAN technologies, including Ethernet, SDH, and 5G/4G/3G networks, offering flexible access options for enterprise users.
The NSR2900X-14D combines routing, switching, and security functions, supporting robust encryption algorithms to ensure data security. Its LAN L2/L3 switching capabilities significantly enhance the flexibility of fixed interfaces.

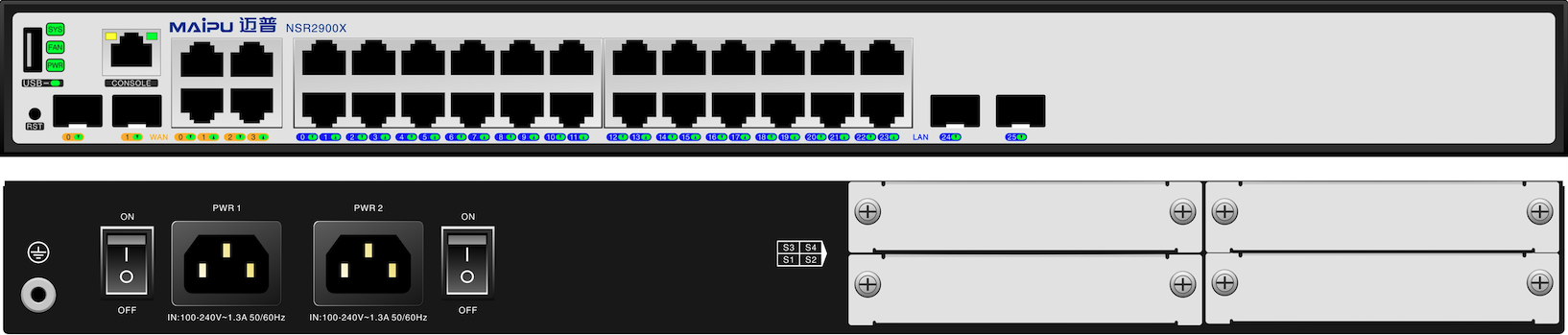

The NSR2900X-14D has one RJ45 console port, one USB interface, 2*10GE SFP+ WAN ports, 2*GE SFP WAN ports, 4*GE RJ45 WAN ports, 24*GE RJ45 LAN ports, four expansion slots, dual AC power supply.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
|
Highlights |
Benefits |
|
Flexible uplink |
NSR2900X-14D integrates fixed WAN and LAN interfaces. The WAN uplink supports various mainstream WAN access link technologies, such as Ethernet, 5G/4G, E1/CE1, POS, and V.35 serial line. |
|
Extensible modular slots |
NSR2900X-14D is modular designed. The whole device supports 4 extended slots. |
|
High performance |
. Multi-core high performance processor. . 1/10G high-speed Ethernet WAN port. . Built-in hardware acceleration engine, high encryption performance. . Maipu Express Forwarding (MEF) technologies, speeding up forwarding and processing of data packets. |
|
5G Ready |
NSR2900X-14D is designed for future 5G networks, with higher throughputs with 5G NR. WAN networks are looking at wireless WAN as primary transports for different use cases for improved throughputs and latency. |
|
LAN Integrated Hardware |
NSR2900X-14D supports up to 24 fixed 10/100/1000M switching LAN ports, providing the IP terminal access capability and meeting the requirement of the user for integrating the routing and switch to construct the access network. |
|
Rich software features |
. Support multiple WAN protocols: DDR, PPPoE, NDIS, EDP, 5G/4G, etc. . Support typical TCP/IP services: DHCP, DNS, NAT, ACL, etc. . Support rich QoS features: PQ, FQ, CBWFQ, H-QoS, WRED, etc. . Support fast convergence protocols: BFD, FRR, etc. . Support Segment-Routing protocols: SR-MPLS, SRv6. . Support full routing protocol: Static, RIP, OSPF, IRMP, BGP, ISIS, etc. . Support rich VPN protocol: DMVPN, IPSec, GRE, L2TPv3, VPLS/MPLS, etc. . Support time synchronization protocol: NTP, PTP(IEEE1588v2),etc. . Support IPv6 protocols: Static Routev6, RIPng, OSPFv3, IS-ISv6, BGP4+, etc. |
|
High reliability and business continuity |
. Support 220V AC redundant power supply. . Redundant WAN connection for failover protection and load balancing. . Dynamic failover protocols such as VRRP/VBRP, backup interface, track IP. |
|
Easy O&M |
Multiple management methods: standard SNMP monitoring and management, Web-based GUI, SD-WAN based management, traditional command line interface. Built-in Embedded Event Platform (EEP), allow the customer to monitor critical event, and automatic execute pre-defined actions. |
|
Security |
. Provide Port Security, 802.1X, DHCP Snooping ,etc. . Provide CPU Protection, Anti-attack, etc. |
|
ZTP |
Zero-Touch (USB, DHCP, EDP…), easy for installation and configuration. |
Product Specifications
Hardware Specification
|
Hardware specification |
NSR2900X-14D |
|
Hardware Version |
V2 |
|
CPU |
4-Core |
|
Memory (GB) |
2GB |
|
Flash (GB) |
8GB |
|
Fixed 10G WAN Interfaces |
2*10G SFP+ WAN Ports |
|
Fixed 1G WAN Interfaces |
2*GE SFP and 4*GE RJ45 WAN Ports |
|
Fixed 1G LAN Interfaces |
24*GE LAN Ports |
|
Max. Throughput (1400 Byte) |
14Gbps (WAN-to-WAN) |
|
IPSec VPN Tunnels |
500-1000 |
|
NRM2 Extension Slots |
4*Slots |
|
USB Port |
1 |
|
Console Port |
1 |
|
Dimension (L*D*H) |
442*380*44.2mm(1U) |
|
Power Supply |
2*AC Power Supply (100V-220V, 50-60Hz.) |
|
Power Consumption |
≤86W |
|
Working Temperature |
0°C～45°C |
|
Working Humidity |
5%-85%/RH |
|
MTBF (Hours) |
≥100,000 Hours |
Software Specification
|
Software features |
|
|
WAN Protocol |
DDR, NDIS, PPPoE, Bridge Group, Virtual Ethernet, HDLC, Frame Relay |
|
LAN Protocol |
STP/RSTP/MSTP, MAC Management, 802.1Q VLAN, Q-in-Q Termination, LACP, Loopback Detection, SPAN, LLDP, Port-isolate, Error-disable, ULFD, Port Security, Voice VLAN |
|
TCP/IP Protocol |
DHCP, DNS, DDNS, NAT, NAT64, NAT66, NAT ALG, IPIP |
|
IPv4 Routing protocol |
Static, RIP, OSPFv2, IRMP, IS-IS, BGP, Policy Routing, VRRP |
|
IPv6 Routing Protocol |
IPv6 Static, RIPng, OSPFv3, IS-ISv6, BGP4+, PBRv6, VRRPv3 |
|
IPv6 Other Protocol |
IPv4/IPv6 Dual-Stack, IPv6 ND, IPv6 PMTU, IPv6 ACL, ICMPv6, DNSv6, DHCPv6, GREv6, IPv6 over IPv4, 6to4, ISATAP |
|
Multicast Protocol |
IGMP v1/v2/v3, PIM-DM, PIM-SM, PIM-SMv6, SSM, MVPN, NG MVPN, MSDP, IGMP Snooping, MLD, MBGP |
|
VPN Protocol |
DMVPN, IPSec, GRE, L2TPv2, L2TPv3 |
|
MPLS Protocol |
MPLS LDP, MPLS L3VPN, MPLS VPLS, MPLS VPWS, MPLS TE, MPLS VRF, IP FRR, LDP FRR, TE FRR, MPLS OAM, 6PE |
|
Segment Routing Protocol |
Network Slicing, Segment-routing MPLS, Segment-routing IPv6 |
|
Security Protocol |
CPU protection, DHCP Snooping v4/v6, IP Source Guard v4/v6, Dynamic ARP Inspection, AAA, 802.1X, PKI, IKE, ACL, Anti-attack, ASPF, SSAC, SECP, Portal Redirection, DPI, IPS, URL Filtering |
|
QoS Protocol |
FIFO, PQ, FQ, WFQ, CBWFQ, LLQ, RSVP, CAR, H-QoS, GTS, MPLS RSVP, QPPB, SPQ |
|
Reliability Protocol |
Backup interface, Keepalive, VRRP/VRRPv3, VBRP, rack, BFD/BFDv6, ULFD |
|
Time Synchronization |
IEEE1588v2, PTP over MAC, PTP over UDP, BC mode, E2ETC mode, P2PTC mode. |
|
SDN Protocol |
EDP, IPFIX, IFIT, BSM, Telemetry, Netconf, VxLAN, EVPN |
|
Management & Monitoring |
CLI, SSH, HTTP/HTTPS, SNMP V1/V2/V3, NTP, EEP, RMON, Telnet, PING, Trace Route, Login, FTP, TFTP, TR069, IP-SLA |
Typical Application

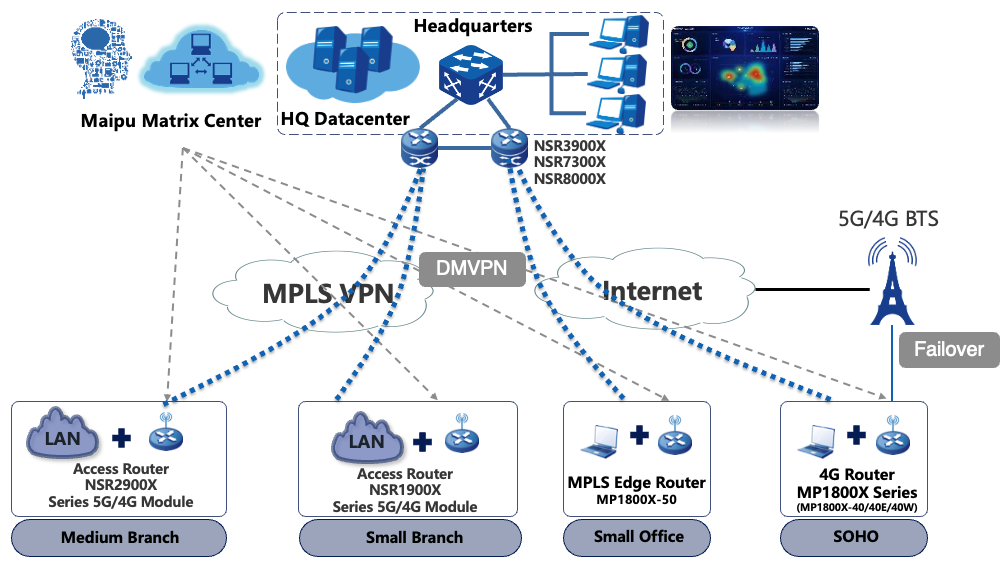

Enterprise Leased Line Solution
Maipu offers a comprehensive enterprise WAN network solution. The NSR1900X/NSR2900X series access routers are designed for enterprise branch offices and support multiple leased line networks, including MPLS or SDH links. The NSR3900X/NSR7300X/NSR8000X series aggregation routers are intended for enterprise headquarters. Maipu Matrix View is an SNMP centralized management platform.

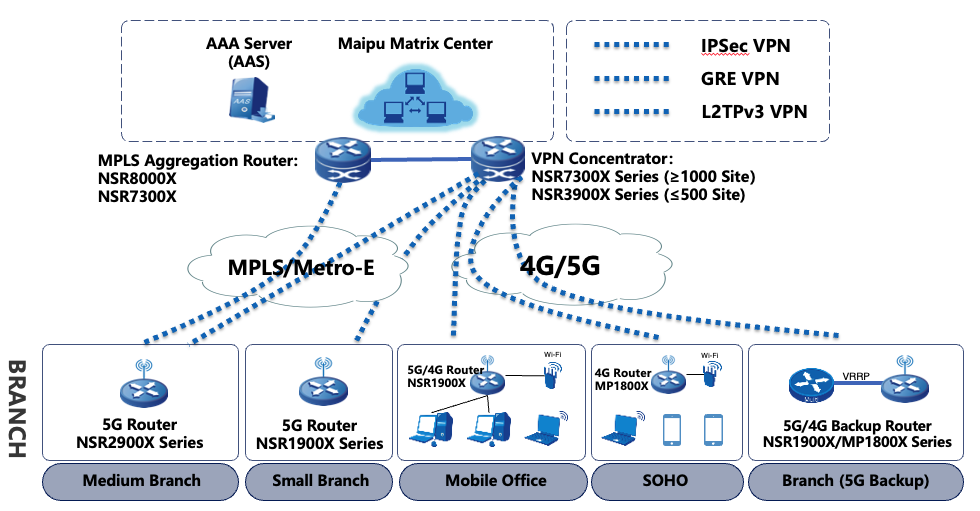

Enterprise VPN Solution
The Maipu NSR1900X/NSR2900X series routers offer various VPN access functions for secure communication between branch offices and headquarters over internet. Secure tunnels such as GRE, L2TP, IPSec, and DVPN can be established between HQ and branches to ensure secure data access and transmission.

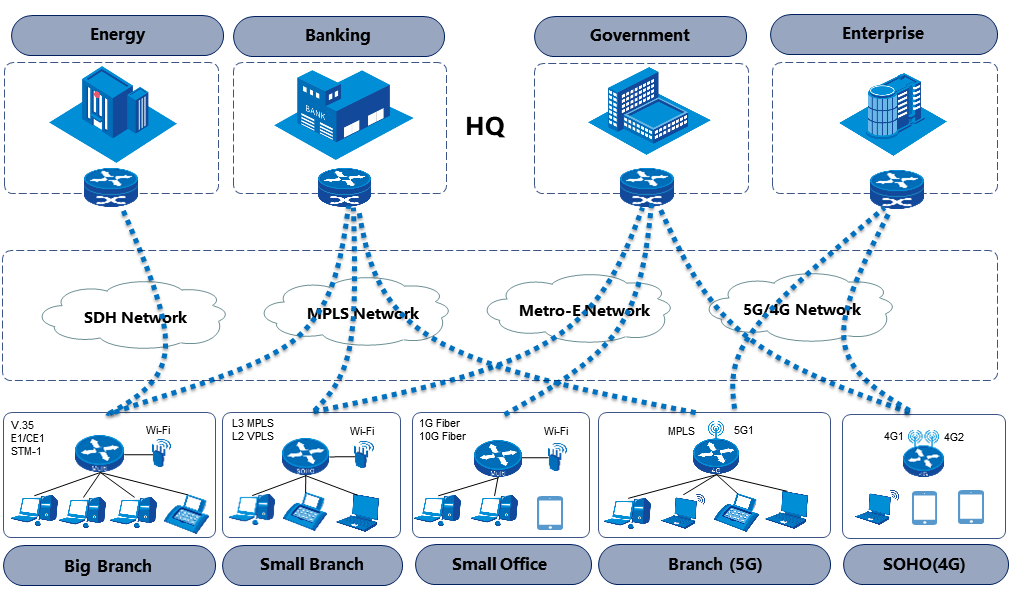

Telecom Managed CPE
Telecom deploys NSR1900X/NSR2900X series access routers as CPE routers at enterprise branch offices. These routers support various WAN access modes, including SDH, MPLS, Metro-E, and 5G/4G links, making them compatible with most telecom WAN networks.
Order Information
|
Router Host |
|
|
Host model |
Description |
|
NSR2900X-14D |
V2 Version: One RJ45 Console Port, 2*10G SFP+ WAN Ports, 4*1000M RJ45 and 2*1000M SFP WAN Ports, 24*1000M RJ45 LAN Ports, 4*NRM2 Slots, Dual AC Power Supply |
|
NRM2 WAN Module |
|
|
Modules |
Description |
|
NRM2-4E1 |
V6 Version: Four-port non-channelized E1 WAN module |
|
NRM2-4CE1 |
V2 Version: Four-port channelized E1 WAN module |
|
NRM2-2SA |
V1 Version: Dual-port high-speed V35 serial WAN module |
|
NRM2-4GEF |
V1 Version: Four-port gigabit Ethernet fiber WAN module |
|
NRM2-4GET |
V3 Version: Four-port gigabit Ethernet RJ45 WAN module |
|
NRM2-4G-LTE-A |
V1 Version: NRM2-4G-LTE-A 4G module, 1*SIM slot, LTE-FDD (band: 1/3/5/8), TD-LTE (band: 38/39/40/41), WCDMA (band: 1/8) |
|
NRM2-5G-M |
V2 Version: NRM2-5G-M 5G module, 1*SIM slot, support NSA and SA, Support 5G NR (Band:1/28/41/77/78/79); LTE-FDD (Band:1/2/3/5/7/8/20/28), LTE-TDD (Band:34/38/39/40/41), WCDMA (band:1/2/5/8) |
|
NRM2-1POS-OC3 |
V1 Version: One-port 155M non-channelized OC3 WAN module |
