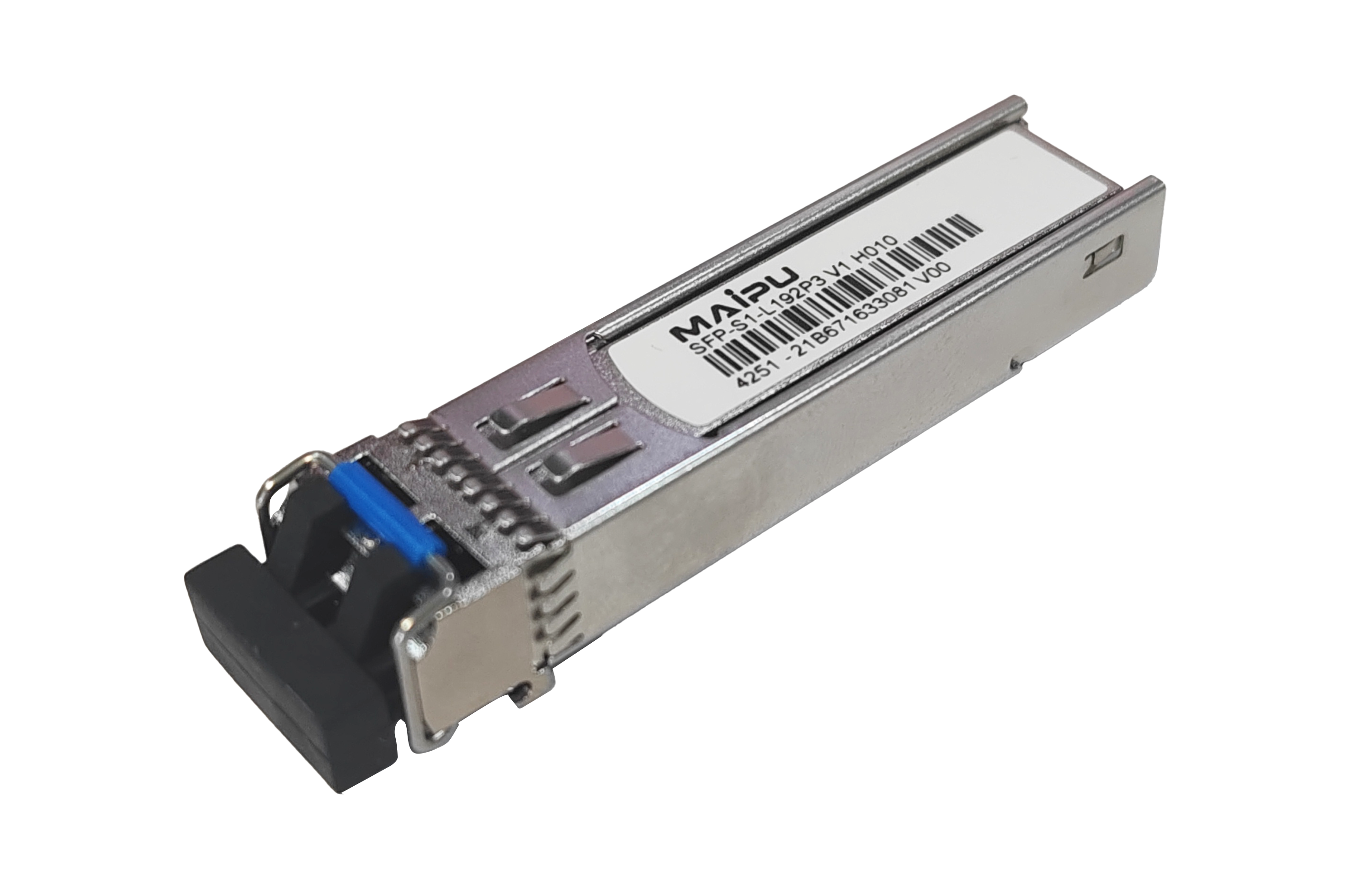

10G SFP+ 10KM Transceiver
Maipu SFP-S1-L192P3 Small Form Factor Pluggable (SFP+) transceivers are compatible with SFF-8431, SFF-8432 and support 10G Ethernet LR and 10G Fiber Channel. It is designed for use in 10G-Gigabit multi-rate links up to 10km of G.652. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com）
Product Features
l Operating data rate up to 10.3Gb/s
l Duplex LC optical connector
l 1310nm DFB laser transmitter
l RoHS compliant and Lead Free
l Distance up to 10km on single-mode fiber
l Metal enclosure for lower EMI
l Low power dissipation<1.2W
l Operating case temperature Standard: -20℃~+70℃
Product Specifications
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Maximum Supply Voltage |
Vcc |
-0.5 |
|
+4.0 |
V |
|
|
Storage Temperature |
TS |
-40 |
|
+85 |
°C |
|
|
Operating Humidity |
RH |
0 |
|
85 |
% |
|
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Power Supply Voltage |
Vcc |
3.13 |
3.30 |
3.47 |
V |
|
|
Power Supply Current |
Icc |
|
|
350 |
mA |
|
|
Case Operating Temperature |
TI |
-20 |
|
+70 |
°C |
|
|
9/125um G.652 SMF |
Lmax |
|
|
10 |
km |
|
Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
Transmitter |
||||||
|
Input differential impedance |
Rin |
80 |
100 |
120 |
Ω |
1 |
|
Differential data input swing |
Vin, pp |
120 |
|
850 |
mV |
|
|
TX Disable-High |
|
Vcc-0.8 |
|
Vcc |
V |
|
|
TX Disable-Low |
|
Vee |
|
Vee+0.8 |
V |
|
|
TX Fault-High |
|
Vcc-0.8 |
|
Vcc |
V |
|
|
TX Fault-Low |
|
Vee |
|
Vee+0.8 |
V |
|
|
Receiver |
||||||
|
Differential data output swing |
Vout, pp |
300 |
|
850 |
mV |
2 |
|
Data output rise time |
Tr |
28 |
|
|
ps |
3 |
|
Data output fall time |
Tf |
28 |
|
|
ps |
3 |
|
LOS-High |
|
Vcc-0.8 |
|
Vcc |
V |
|
|
LOS-Low |
|
Vee |
|
Vee+0.8 |
V |
|
Optical Characteristics
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Transmitter |
||||||
|
Output Opt. Power |
PO |
-8.2 |
|
+0.5 |
dBm |
|
|
Optical Wavelength |
λ |
1260 |
1310 |
1355 |
nm |
|
|
Side-Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Spectral Width(-20dB) |
∆λ |
|
|
1 |
nm |
|
|
Optical Extinction Ratio |
ER |
3.5 |
|
|
dB |
|
|
Receiver |
||||||
|
RX Sensitivity @10.3Gb/s |
SENS1 |
|
|
-14.4 |
dBm |
1,2 |
|
Receiver Sensitivity (OMA) @ 10.3Gb/s |
SENS2 |
|
|
-12.6 |
dBm |
1,2 |
|
Receiver Overload |
|
0.5 |
|
|
dBm |
|
|
Optical Center Wavelength |
λC |
1260 |
|
1610 |
nm |
|
|
LOS De-Assert |
LOSD |
|
|
-15 |
dBm |
|
|
LOS Assert |
LOSA |
-30 |
|
|
dBm |
|
|
LOS Hysteresis |
|
0.5 |
|
5 |
dB |
|
Order Information
|
Model |
Description |
|
SFP-S1-L192P3 |
10G SFP+, 1310nm, 10Km, LC, DDM, Single-mode |
:
