1G SFP 550M Transceiver

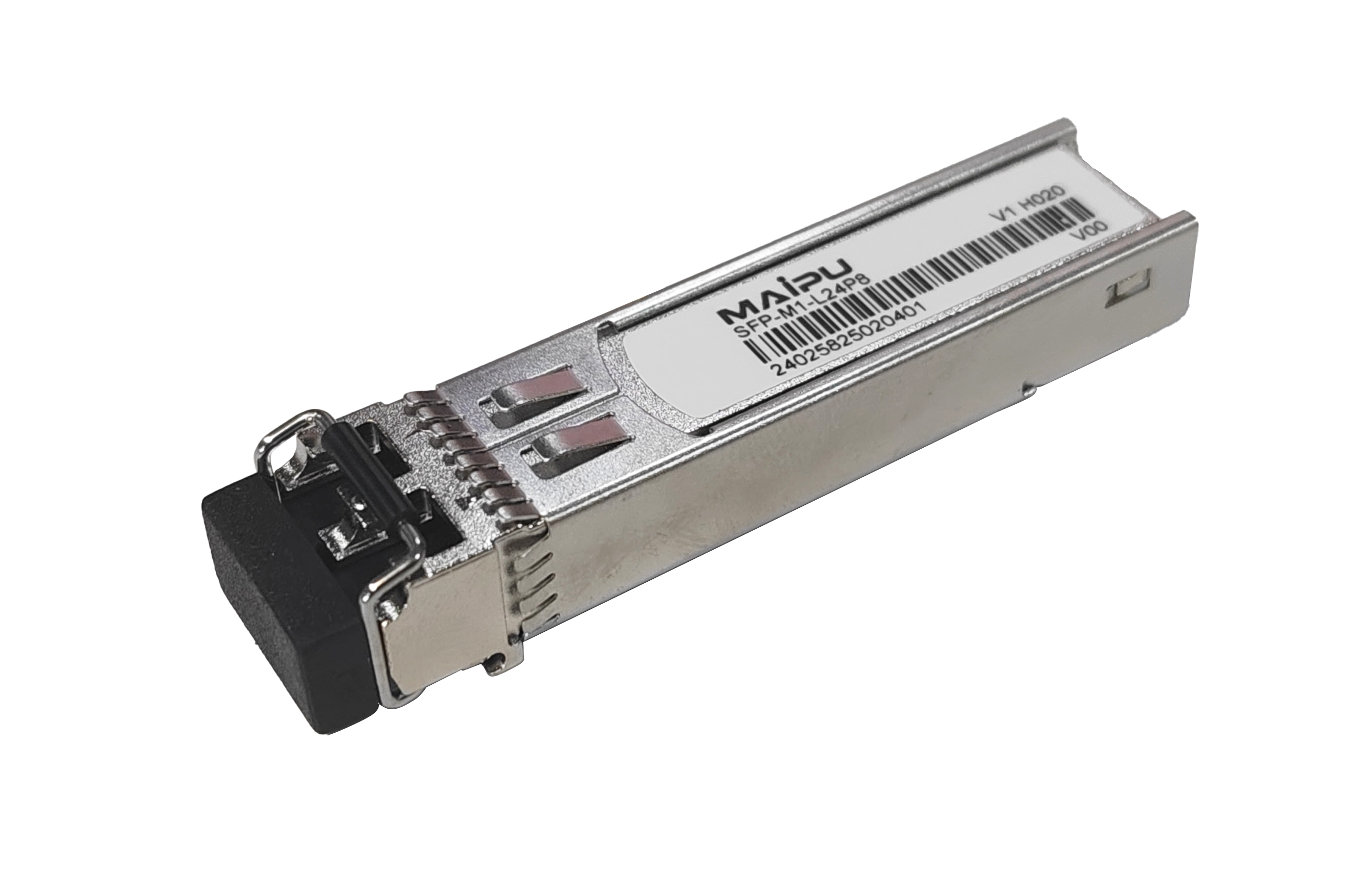

Maipu SFP-M1-L24P8 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The SFP transceivers are high-performance, cost-effective modules supporting dual data-rate of 1.25Gbps/1.063Gbps and 550m transmission distance with MMF. They are RoHS compliant and lead-free.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com）
Product Features
l Up to 1.25Gb/s data links
l Duplex LC optical connector
l 850nm VCSEL laser transmitter
l RoHS compliant and Lead Free
l Distance up to 550m on multi-mode fiber
l Metal enclosure for lower EMI
l Low power dissipation <800mW
l Operating case temperature: -20℃~+70℃
Product Specifications
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Maximum Supply Voltage |
Vcc |
-0.5 |
|
+4.0 |
V |
|
|
Storage Temperature |
TS |
-40 |
|
+85 |
°C |
|
|
Operating Humidity |
RH |
0 |
|
85 |
% |
|
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Power Supply Voltage |
Vcc |
3.13 |
3.30 |
3.47 |
V |
|
|
Power Supply Current |
Icc |
|
|
250 |
mA |
|
|
Case Operating Temperature |
T |
-20 |
|
+70 |
°C |
1 |
|
Data Rate(Gigabit Ethernet) |
|
|
1.25 |
|
Gbps |
|
|
Data Rate(Fibre Channel) |
|
|
1.063 |
|
Gbps |
|
|
50/125um OM3 SMF |
Lmax |
|
|
550 |
m |
|
Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
Transmitter |
||||||
|
Input differential impedance |
Rin |
80 |
Ω |
1 |
||
|
Differential data input swing |
Vin, pp |
250 |
|
1200 |
mV |
|
|
TX Disable-High |
|
Vcc-1.3 |
|
Vcc |
V |
|
|
TX Disable-Low |
|
Vee |
|
Vee+0.8 |
V |
|
|
TX Fault-High |
|
Vcc-0.5 |
|
Vcc |
V |
|
|
TX Fault-Low |
|
Vee |
|
Vee+0.5 |
V |
|
|
Receiver |
||||||
|
Differential data output swing |
Vout, pp |
300 |
400 |
800 |
mV |
2 |
|
Data output rise time |
Tr |
|
|
175 |
ps |
3 |
|
Data output fall time |
Tf |
|
|
175 |
ps |
3 |
|
LOS-High |
|
Vcc-0.5 |
|
Vcc |
V |
|
|
LOS-Low |
|
Vee |
|
Vee+0.5 |
V |
|
Optical Characteristics
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Transmitter |
||||||
|
Output Opt. Power |
PO |
-9 |
|
-4 |
dBm |
1 |
|
Optical Wavelength |
λ |
830 |
850 |
860 |
nm |
|
|
RMS Spectral Width |
σ |
|
|
0.85 |
nm |
|
|
Optical Rise/Fall Time |
tr/tf |
|
|
260 |
Ps |
2 |
|
Total Jitter |
TJ |
|
|
0.35 |
UI |
|
|
Optical Extinction Ratio |
ER |
9 |
|
3.9 |
dB |
|
|
Receiver |
||||||
|
Receiver Sensitivity@1.25Gb/s |
SENS |
|
|
-18 |
dBm |
3, 4 |
|
Receiver Overload |
|
0 |
|
|
dBm |
|
|
Optical Center Wavelength |
λC |
770 |
|
860 |
nm |
|
|
LOS De-Assert |
LOSD |
|
|
-19 |
dBm |
|
|
LOS Assert |
LOSA |
-40 |
|
|
dBm |
|
|
LOS Hysteresis |
|
0.5 |
|
5 |
dB |
|
Order Information
|
Model |
Description |
|
SFP-M1-L192P8 |
1G SFP, 850nm, 550m, LC, DDM, Multi-mode |
