MP1800X-40(V11/V12) MPLS Edge Router
MP1800X-40(V11) and MP1800X-40(V12) routers developed by Maipu are one new-generation enterprise-class MPLS edge routers applicable to enterprise and government branch offices. It integrates various modern network technologies, such as routing, switching, QoS, and security, providing flexible access modes and a secure and high-efficiency service experience for the users.
MP1800X-40 series router upgrades all the interfaces from megabit to gigabit. It supports up to 5*100/1000M Ethernet ports, which can be configured as WAN or LAN, providing high-speed terminal access capability and meeting the user's requirement for integrating the routing and switch to construct the access network.
MP1800X-40(V11/V12) Ethernet ports can back up each other. Each Ethernet WAN port can serve as the master port. Ethernet WAN port supports static address, DHCP, and PPPoE access modes. The master/standby switching supports the failover based on the link status and peer track IP.
MP1800X-40 Series is the next-generation version of MP801E&MP1800 series, widely deployed in many countries.
MP1800X-40(V11) supports one RJ 45 Console port, one USB interface, five 10M/100M/1000M ethernet ports, and 12V DC power input.
MP1800X-40(V12) supports one RJ 45 Console port, one USB interface, five 10M/100M/1000M ethernet ports, 12V DC power input, and 60 degrees centigrade high working temperature design.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
Highlights | Benefits |
High performance | l Multi-core high-performance processor. l 10/100/1000M Base-T high-speed Ethernet port. |
Reliable Hardware | l Widely working temperature, up to 60℃ (MP1800X-40 V12). l Fanless and Fin heat dissipation design. l Metal shell and IP30 protection. |
Flexible deployment | l Support multiple WAN protocols: DDR, PPPoE, EDP, DHCP, Static, 4G/3G l Small dimension easy to install and deploy. l Support advanced protocol, such as BGP, MPLS, VPLS. l IPv6 Ready fully supports IPv6 features. |
High reliability | l Provide multiple link backups to ensure connectivity. l Fault detection in milliseconds, and support auto rollback. |
Easy O&M | Multiple management methods: standard SNMP monitoring and management, Web-based GUI, SD-WAN-based management, traditional command-line interface. |
Service convergence | Integration of functions, such as routing, switching, security, firewall, simplifying networking deployment. |
Security | Built-in firewall features, stateful firewall, IPS, URL Filtering, VPN access. |
ZTP | Zero-Touch (USB, DHCP, EDP…), easy for installation and configuration. |
Product Specifications
|
Hardware Specification |
MP1800X-40(V11) |
MP1800X-40(V12) |
|
CPU |
1GHz Dual Core |
1GHz Dual Core |
|
Memory (Default) |
512M |
512M |
|
Flash (Default) |
128M |
128M |
|
Dual IOS |
Yes |
Yes |
|
Fixed interface |
5 GE RJ45 (WAN or LAN) |
5 GE RJ45 (WAN or LAN) |
|
USB |
1*USB2.0 |
1*USB2.0 |
|
Console port |
1*RJ45 console port. |
1*RJ45 console port. |
|
Dimension (L*D*H) |
150mm*106mm*25mm |
145mm*100mm*38mm |
|
Power supply |
12V DC input |
12V DC input |
|
Power consumption |
≤20W |
≤20W |
|
IP Security Level |
IP30 |
IP30 |
|
Working Temperature |
0°C～45°C |
-20°C～60°C |
|
Humidity |
Work humidity: 5%-85%/RH |
Work humidity: 5%-85%/RH |
|
Weight |
≤1KG |
≤1KG |
|
Software features |
||
|
WAN Protocol |
DDR, NDIS, PPPoE, Bridge Group, EDP |
|
|
LAN Protocol |
STP/RSTP/MSTP, MAC management, 802.1q VLAN, LACP, Loopback Detection, SPAN, LLDP, Port-isolate, Error-disable, ULFD, Port Security |
|
|
TCP/IP Protocol |
DHCP, DNS, DDNS, NAT, NAT64, NAT66, NAT ALG, IPIP, GRE, L2TP/L2TPv3 |
|
|
IPv4 Routing protocol |
Static, RIP, OSPFv2, IS-IS, BGP, Policy Routing |
|
|
IPv6 Routing Protocol |
IPv6 Static, RIPng, OSPFv3, IS-ISv6, BGP4+, IPv6 Policy Routing |
|
|
IPv6 function |
IPv4/IPv6 Dual-Stack, IPv6 ND, IPv6 PMTU, IPv6 ACL, ICMPv6, DNSv6, DHCPv6, GREv6 |
|
|
IPv6 Transition Tunneling |
IPv6 over IPv4, 6to4, ISATAP |
|
|
Multicast |
IGMP v1/v2/v3, PIM-DM/PIM-SM, SSM, MVPN, NG MVPN, MSDP, MLD, IPv6 PIM, MBGP |
|
|
VPN |
IPSec, PKI, MPLS, VPLS, VPWS, L3VPN, OAM, 6PE, VRF, DVPN, VxLAN |
|
|
MPLS |
LDP, MPLS L3VPN, MPLS L2VPN, MPLST TE, IP FRR, LDP FRR, TE FRR |
|
|
Security |
ACL, SSH, CPU protection, Firewall, IPS, URL Filter, AAA, IKE, PKI, 802.1X, URFP |
|
|
QoS |
FIFO, PQ, FQ, WFQ, CBWFQ, LLQ, RSVP, CAR, H-QoS, traffic shaping, Rate Limitation |
|
|
Reliability |
Backup interface, VRRP/VRRPv3, VBRP, IPSLA, Track, BFD/BFDv6 |
|
|
Automation |
ZTP, Netconf |
|
|
Management & Monitoring |
Keepalive, NTP, EEP, RMON, CWMP, CLI, SSH, HTTP/HTTPS, SNMP V1/V2/V3, Telnet, PING, Trace Route, Login, FTP, TFTP, SFTP, TR069, IP-SLA, Telemetry, IPFIX |
|
Typical Application
Enterprise WAN Solution
Maipu can provide a total solution of enterprise WAN network, MP1800X/1900X/2900X series access router is working at enterprise branch offices and supporting multiple physical links, such as MPLS links, Internet links, and 5G/4G mobile network links. MP3900X/MP7300X/MP7500X series aggregation router is working at enterprise HQ. Maipu Matrix View is SNMP centralized managed platform.

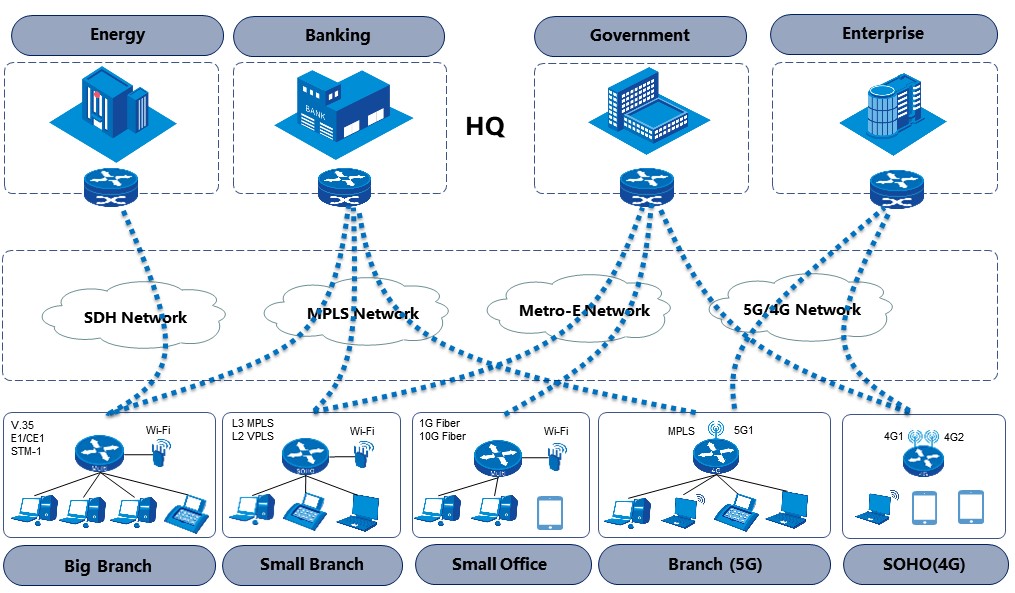

Telecom Managed Service
In this scenario, Maipu MP1800X/1900X/2900X series routers are used as the egresses of enterprise branches and provide flexible WAN access, supporting SDH, MPLS, Metro-E, and 5G/4G links, helping the customer reduce the OPEX, CAPEX and improving customer's network experience.
Enterprise VPN Solution
Maipu MP1800X/1900X/2900X series router provides various VPN access functions for communication between branches and headquarters over multiple physical links. Secure tunnels such as GRE, L2TP, IPSec, and DVPN tunnels can be set up between the HQ and branches for secure data access and transmission.
Order Information
|
Host model |
Description |
|
MP1800X-40(V11) |
One RJ45 Console port, one USB interface, five 10M/100M/1000M Ethernet ports, 12V DC power supply |
|
MP1800X-40(V12) |
One RJ45 Console port, one USB interface, five 10M/100M/1000M Ethernet ports, 12V DC power supply |
|
Power Adaptor |
|
|
AD24-1S5N |
Input: AC 100V-240V, Output:12V/2A, length:1.5m, India Standard |
|
AD24-1S4N |
Input: AC 100V-240V, Output:12V/2A, length:1.5m, UK Standard |
|
AD24-1S3N |
Input: AC 100V-240V, Output:12V/2A, length:1.5m, Europe Standard |
|
AD24-1S2N |
Input: AC 100V-240V, Output:12V/2A, length:1.5m, American Standard |
:
