40G QSFP+ 10KM Transceiver

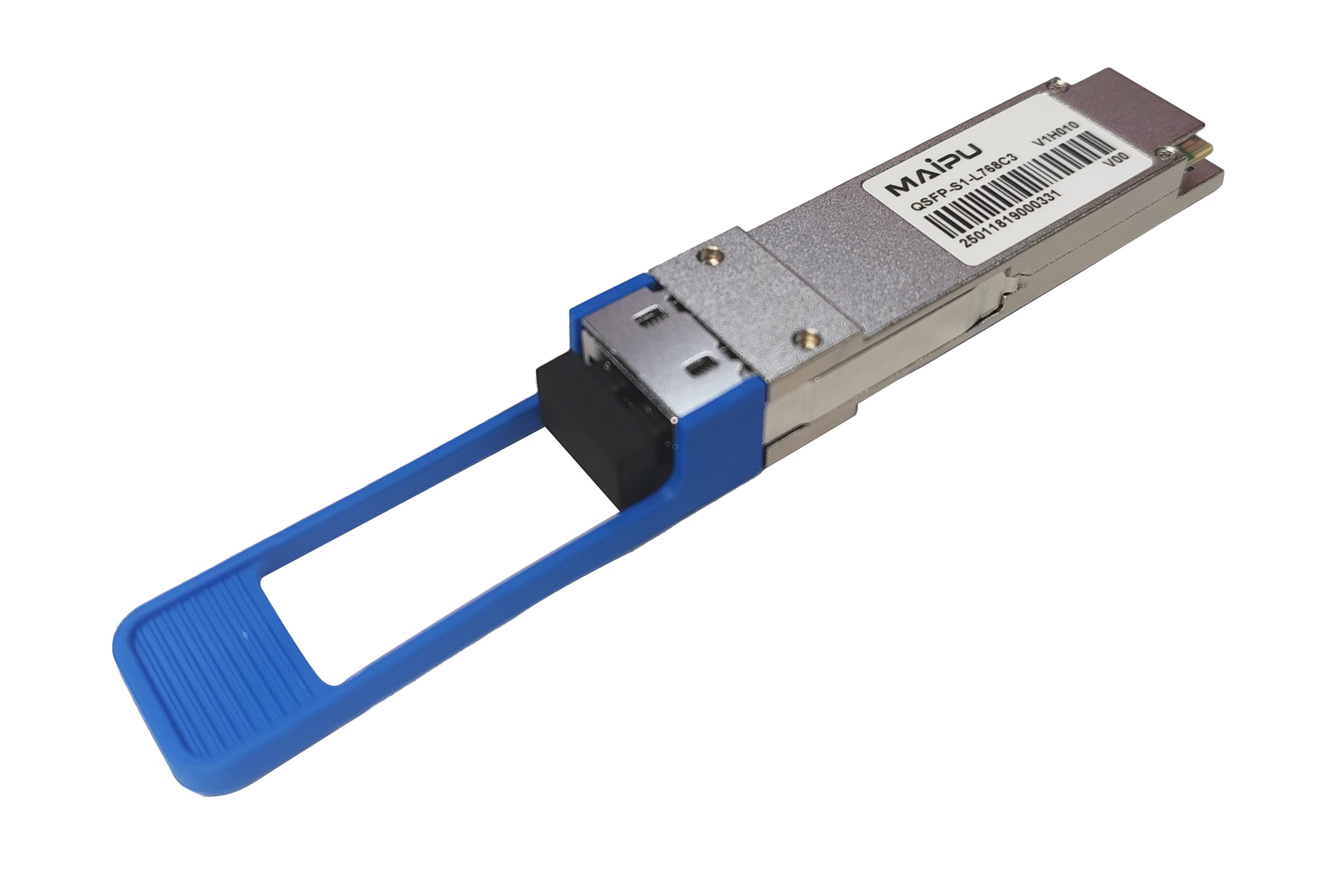

Maipu QSFP-S1-L768C3 transceiver module designed for 10km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels of 10Gb/s electrical data to 4 CWDM optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals and converts them to 4 channel output electrical data.
Product Features
l Compliant with 40G Ethernet IEEE 802.3ba 40GBASE
l Duplex LC optical connector
l 1310nm DFB laser transmitter
l RoHS compliant and Lead Free
l Distance up to 10km on single-mode fiber
l Metal enclosure for lower EMI
l Low Power Consumption <1.5W
l Operating case temperature: 0℃ to 70℃
Product Specifications
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Maximum Supply Voltage |
Vc |
-0.5 |
|
+4 |
V |
|
|
Storage Temperature |
TS |
-40 |
|
+85 |
°C |
|
|
Operating Humidity |
RH |
0 |
|
85 |
% |
|
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Power Supply Voltage |
Vcc |
3.13 |
3.30 |
+3.47 |
V |
|
|
Power Supply Current |
Icc |
|
|
1.05 |
A |
|
|
Case Operating Temperature |
Tc |
0 |
|
+70 |
°C |
|
|
Signaling rate, each lane |
|
10.3125 |
Gbps |
|
||
|
Operating Distance |
Lmax |
|
|
10 |
km |
|
|
Power Supply Noise |
|
|
|
50 |
mVpp |
|
|
Supply Noise Rejection |
|
|
|
100 |
mV |
|
|
Receiver Differential Data Output |
|
|
100 |
|
Ohm |
|
Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Transmitter |
||||||
|
Single Ended Output Voltage Tolerance |
|
-0.3 |
|
4 |
V |
|
|
AC Common mode Voltage Tolerance (RMS) |
|
15 |
|
|
mV |
|
|
Tx Input Diff Voltage |
Vi |
90 |
|
1600 |
mV |
|
|
Tx Input Diff Impedance |
Zi |
80 |
100 |
120 |
Ω |
|
|
Differential Input Return Loss |
|
See IEEE 802.3ba 86A.4.11 |
dB |
|
||
|
TX Fault-Low |
|
Vee |
|
Vee+0.8 |
V |
|
|
J2 Jitter Tolerance |
Jt2 |
0.17 |
|
|
UI |
|
|
J9 Jitter Tolerance |
Jt9 |
0.29 |
|
|
UI |
|
|
Data Dependent Pulse Width Shrinkage |
DDPWS |
0.07 |
|
|
UI |
|
|
Eye Mask Coordinates {X1, X2, Y1, Y2} |
|
|
0.11, 0.31, 95, 350 |
|
UI, mV |
|
|
Receiver |
||||||
|
Single Ended Output Voltage Tolerance1 |
|
-0.3 |
|
4 |
V |
|
|
AC Common mode Voltage Tolerance(RMS) |
|
|
|
7.5 |
mV |
|
|
Termination Mismatch at 1MHz |
|
|
|
5 |
% |
|
|
Differential Output Return Loss |
|
See IEEE 802.3ba 86A.4.2.1 |
dB |
|
||
|
Common- mode Output Return Loss |
|
See IEEE 802.3ba 86A.4.2.2 |
dB |
|
||
|
Rx Output Diff Voltage |
Vo |
|
600 |
800 |
mV |
|
|
Rx Output Rise and Fall Time |
Tr/Tf |
|
|
35 |
ps |
|
|
J2 Jitter Tolerance |
Jr2 |
|
|
0.46 |
UI |
|
|
J9 Jitter Tolerance |
Jr9 |
|
|
0.65 |
UI |
|
|
Eye Mask Coordinates {X1, X2, Y1, Y2} |
|
|
0.29, 0.5, 150, 425 |
|
UI, mV |
|
Optical Characteristics
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Transmitter |
||||||
|
Signaling rate, each lane (range) |
|
|
10.3125 |
|
GBd |
|
|
Optical Wavelength |
L0 L1 L2 L3 |
1264.5 1284.5 1304.5 1324.5 |
|
1277.5 1297.5 1317.5 1337.5 |
nm nm nm nm |
|
|
Side-mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Total Average Launch Power |
|
|
|
8.3 |
dBm |
|
|
Average Launch Power, each Lane |
|
-7 |
|
2.3 |
dBm |
|
|
Optical Modulation Amplitude, each Lane |
|
-4 |
|
3.5 |
dBm |
|
|
Difference in launch power between any two lanes (OMA) |
|
|
|
6.5 |
dB |
|
|
Transmitter and Dispersion Penalty |
TDP |
|
|
2.6 |
dB |
|
|
Launch power in OMA minus TDP, each lane |
Tx-TDP |
-4.8 |
|
|
dBm |
|
|
Average launch power of OFF transmitter, each lane |
|
|
|
-30 |
dBm |
|
|
Extinction Ratio |
ER |
3.5 |
|
|
dB |
|
|
Relative Intensity Noise |
|
|
|
-128 |
dB/Hz |
|
|
Optical return loss tolerance |
|
|
|
20 |
dB |
|
|
Transmitter reflectance |
|
|
|
-12 |
dB |
|
|
Receiver |
||||||
|
Signaling rate, each lane (range) |
|
|
10.3125 |
|
GBd |
|
|
Optical Wavelength |
L0 L1 L2 L3 |
1264.5 1284.5 1304.5 1324.5 |
|
1277.5 1297.5 1317.5 1337.5 |
nm nm nm nm |
|
|
Damage threshold |
|
3.3 |
|
|
dBm |
|
|
Average power at receiver input, each lane |
|
-13.7 |
|
2.3 |
dBm |
|
|
Receive power, each lane (OMA) |
|
|
|
3.5 |
dBm |
|
|
Difference in receive power between any two lanes (OMA) |
|
|
|
7.5 |
dBm |
|
|
Receiver reflectance |
|
|
|
-26 |
dB |
|
|
RX Sensitivity(OMA) |
|
|
|
-11.5 |
dBm |
BER@10E-12 |
|
Los De-Assert |
LosD |
|
|
-12 |
dBm |
|
|
Los Assert |
LosA |
-28 |
|
|
dBm |
|
|
Los Hysteresis |
LosH |
0.5 |
|
6 |
dB |
|
Order Information
|
Model |
Description |
|
QSFP-S1-L768C3 |
40G QSFP+, 1310nm, 10Km, LC, Single-mode |
:
