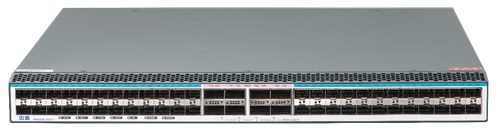

SW58-44R-2PS-1D-2SF-2Y
Product Features
High-density Interfaces
With the popularity of the application server network card rate from 10G, 40G to 100G, new requirements are put forward for the port bandwidth and access density of the network access layer switches. SW58-44R-2PS-1D-2SF-2Y data center access switch can provide fixed 48*10G, 8*40/100G QSFP28 optical interfaces. The port combination fully satisfies the interface combination and density requirement of data center construction for access-layer switches.
Support H-VST/M-VST technology
SW58-44R-2PS-1D-2SF-2Y other core switches realizes "vertical virtualization". Inserted with 40G/100G fiber, it can automatically realize virtual management, and the site installation is convenient. A maximum of 128 devices can be virtualized to a virtual device without the need to plan the interconnection address and management address. Telnet a core device is equivalent to logging into more than 100 switches at the same time. There is no need to maintain and memorize the complex password. Through the global configuration command, a command is also effective on more than 100 devices at the same time, which greatly improves the daily maintenance efficiency of customers.
Large-capacity port buffer technology
SW58-44R-2PS-1D-2SF-2Y uses the large-capacity port buffer design, and a single port can have 200ms data buffer capacity. With the VoQ hardware virtual queue traffic control technology, it can fully adapt to the application model of the new-generation data center with large data flow and frequent instantaneous flow burst.
Comprehensive green environmental protection and energy saving design
The advanced power management mechanism of switching chips can reduce the power consumption of the standby Ethernet ports, saving 25% power consumption of the whole device. Temperature monitoring and fan stepless speed regulation effectively reduce the environmental noise and extend the life of the hardware card, meeting the green energy saving requirements of the data center room.
Product Specifications
|
Hardware specifications |
||
|
Physical ports |
Fixed 48 10G SFP+ optical interfaces, 8 100/40G QSFP28 optical interfaces. |
|
|
Management interface |
One Console port, one management Ethernet port, one USB interface |
|
|
Redundant design |
Support power redundancy, 1+ 1 backup mode |
|
|
Switching capability (bps) |
2.56Tbps |
|
|
Power
|
Two Power Slots |
|
|
Input voltage (AC): 100V ~ 240V, 50Hz ~ 60Hz |
||
|
Temperature |
Work temperature: 0℃ to 50℃ Storage temperature: -40℃ to 70℃ |
|
|
Humidity |
Work humidity: 10% to 90%, no-condensing Storage humidity: 5% to 95%, no-condensing |
|
|
Dimension (W×D×H) |
442mm×420mm×44.2mm |
|
|
MTBF |
>100, 000 hours |
|
|
Software Features |
||
|
Standard L2 protocol |
Interface |
Port Type UNI/NNI, Port Speed, Port MTU, Port Loopback, Loopback interface, Tunnel interface, Null interface, VXLAN interface |
|
Ethernet Swithing |
LACP Link aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug, Port isolation, QinQ, VLAN mapping, Super VLAN, PVLAN, Voice VLAN, STP, MSTP, Loopback-detection, Errordisable, GVRP, MLAG, VLAN isolation |
|
|
Standard L3 protocol |
IP Protocol |
ARP, DHCP, DHCPv6, DHCP Server, DHCPv6 Server, DHCPv6 Client, DHCP Relay, DHCPv6 Relay, DHCP Option82, DNS, GRE, IPIP, IPv6 over IPv4, ISATAP, IPv4 over IPv6, IPv6 over IPv6 |
|
Routing Protocol |
Static route for IPv4&IPv6, RIPv1/v2, RIPng, OSPFv2, OSPFv3, IS-IS, IS-ISv6, BGP, BGPv6, Policy Route |
|
|
Multicast |
L2 multicast |
IGMPv1/v2/v3 Snooping, multicast VLAN |
|
L3 multicast |
IGMPv1/v2/v3, PIM-SM, IPv6 PIM-SM, IPv6 PIM-SSM, PIM-DM, MSDP, MLD-snooping |
|
|
QoS & ACL |
QoS |
802.1p, DSCP, and other priority mapping, SP, WRED, WDRR, Flow classification, Traffic monitoring, Traffic shaping, Congestion management, Congestion avoidance, Flow-based mirroring |
|
ACL |
Standard IP ACL, extended IP ACL, standard MAC ACL, extended MAC ACL, extended Hybrid ACL, Standard IPv6 ACL, extended IPv6 ACL |
|
|
Data center feature |
Data center feature |
TRILL, M-LAG, VXLAN, BGP-EVPN, NLB, OpenFlow, Netconf |
|
MPLS |
BGP MPLS |
MPLS LDP, MPLS GR, M-VRF, MPLS L3 VPN |
|
Virtualization |
VST |
H-VST, M-VST |
|
MAD |
MAD LACP, MAD BFD, MAD Fast-hello |
|
|
Security & Network Reliability |
Security |
ARP Check, AARF, AARF ARP-Guard, CPU Protection, Port Security, IP Source Guard, IPv6 Source Guard, ND-Snooping, DHCP Snooping, DHCPv6 Snooping, Dynamic ARP Inspection, Host Guard, PPPoE+, AAA, 802.1x, Portal Authentication, Anti-attack detect|drop|flood|log, URPF |
|
Network Reliability |
HA, ULFD, ERPS, ULPP, Monitor Link, VRRP, VRRPv3, VBRP, BFD, EEP |
|
|
Management |
Network Monitoring |
SNMP v1/v2/v3, MIB, RMON, SYSLOG, DNS, CLI, Telnet, FTP/TFTP, Debug, NTP, Keepalive Gateway |
|
Network Monitoring |
SPAN, RSPAN, ERSPAN, VLAN SPAN, IPFIX, LLDP, IP-SLA, CWMP, Telemetry, BSM |
|
Order Information
|
Product model |
Description |
|
Distribution switch |
48*10G SFP+ optical interfaces, 8*40/100G QSFP28 optical interfaces, five modular fan slots and dual modular power slots x1 |
|
Power Supply Module |
AC power module, 550W, AC input 100-240V, support hot-swap, draw air outward x2 |
|
Fan Modules |
Modular Fan Slot, Hot-swappable, front in rear out x5 |
|
DAC stacking cable |
QSFP DAC stacking cable, QSFP to QSFP, 40Gbps, 1 meters length x1 |
|
Optical module |
40G QSFP+ 1310nm 40km LC DDM Single-mode x2 |
|
Support |
Next-business-day parts’ delivery, remote support 24 hours a day, 7 days a week, for 2 Years |
