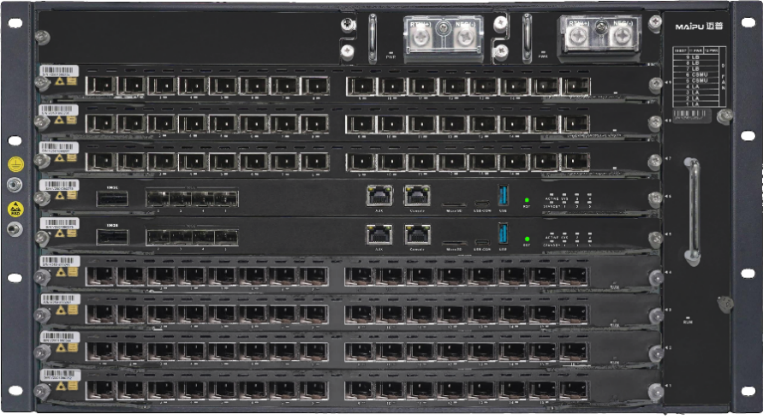

PT8000 Series XGSPON OLT
Maipu PT8000 Series offer a leap in fiber optic technology, providing symmetrical 10Gbps bandwidth, crucial for high-demand applications like cloud services and interactive gaming. This technology supports more users and devices with its enhanced capacity, making it suitable for smart cities and densely populated areas. It ensures longer reach without speed loss and is backward compatible with GPON, offering a smooth upgrade path while protecting existing investments.
With Maipu's adoption of XG(S)PON, service providers can deliver ultra-fast internet, catering to a wide range of applications efficiently and securely, positioning themselves at the forefront of the broadband market with minimal investment.
Maipu PT8000 series support smooth upgrades from GPON to XG(S)PON, achieving high bandwidth and high-speed data transmission to meet large-scale deployment requirements. This product has comprehensive management and monitoring functions, simplifies operation and maintenance processes, and provides rich business features and scalability.
Product Features
l Adopting Advanced XG(S)PON Technology
The PT8000 series utilize cutting-edge XG(S)PON technology, delivering higher bandwidth and lower latency for next-generation optical access networks. XG(S)PON supports symmetrical and asymmetrical data transmission rates of up to 10Gbps, making it ideal for meeting the demands of future high-bandwidth applications such as ultra-high-definition video streaming, cloud computing, smart homes, and IoT devices. This technology enables PT8000 series to offer a more stable and high-speed network experience while optimizing resource utilization and ensuring excellent compatibility across various deployment scenarios. The flexibility and advanced capabilities of XG(S)PON make the PT8000 series an ideal choice for service providers, helping them maintain a competitive edge with superior technology and service offerings in a dynamic market.
l Carrier-class security protection, ensure the safe operation of network
The PT8000 series are offering carrier-class protection features that safeguard network operations. It supports uplink redundancy and is equipped with advanced spanning tree protocols to ensure consistent network uptime and link protection. This level of security infrastructure ensures that the network is robust against potential disruptions, maintaining a secure and reliable service for users.
l Large coverage for low density areas
Designed to extend services efficiently over large geographical areas, the PT8000 series are compatible with N2/C+ XG(S)PON optical modules which are known for their high optical power budgets. This capability is instrumental in propagating long-distance Fiber to the Home (FTTH) networks. When utilized in tandem, these solutions expedite network coverage across vast and sparsely populated areas while reducing deployment time by up to 70%, optimizing both costs and network reach.
l Redundant power supply for high availability
To guarantee continuous operation and high service availability, the PT8000 series are equipped with a redundant power supply system, featuring dual modular power slots. This ensures that the network infrastructure remains operational even in the event of a power module failure, minimizing downtime and maintaining consistent service delivery.
l Comprehensive network management
The PT8000 series offer a suite of network management tools including SNMP, SHELL, TELNET, SSH, providing administrators with flexible and powerful options for overseeing network operations. The user-friendly interface simplifies the management process, enabling efficient configuration, monitoring, and maintenance of network components. These comprehensive management features assure that service providers can effectively control their network resources and respond swiftly to the dynamic demands of the network environment.
Product Specifications
|
Hardware Features |
||||||
|
Item |
PT8000-09 |
PT8000-04 |
||||
|
Chassis |
Rack |
6U |
2U |
|||
|
Dimension (L*W*H) |
442mm*299mm*266.7mm |
442mm*299mm*88.9mm |
||||
|
Power Consumption |
Typical Consumption |
183W |
137W |
|||
|
Peak Consumption |
872W |
400W |
||||
|
Working Temperature |
-20°C~+60°C |
-20°C~+60°C |
||||
|
Storage Temperature |
-40 ~+70°C |
-40 ~+70°C |
||||
|
Relative Humidity |
5~95% (non-conditioning) |
5~95% (non-conditioning) |
||||
|
Power Supply |
AC |
External AC-DC power tray |
100~240VAC，50/60Hz |
|||
|
DC |
-48V |
-48V |
||||
|
Backplane Bandwidth |
3.8Tbps |
1.66Tbps |
||||
|
XG(S)PON/GPON Port Specification (N2_C+ module) |
Transmission Distance |
20KM |
20KM |
|||
|
XG(S)PON Port Speed |
GPON: Upstream1.25Gbps, Downstream 2.49Gbps XGPON: Upstream 2.49Gbps, Downstream 9.95Gbps XG(S)PON: Upstream 9.95Gbps, Downstream 9.95Gbps |
GPON: Upstream1.25Gbps, Downstream 2.49Gbps XGPON: Upstream 2.49Gbps, Downstream 9.95Gbps XG(S)PON: Upstream 9.95Gbps, Downstream 9.95Gbps |
||||
|
Wavelength |
GPON: Upstream：1310nm Downstream: 1490nm XG(S)PON: Upstream: 1270nm Downstream: 1577nm |
GPON: Upstream：1310nm Downstream: 1490nm XG(S)PON: Upstream: 1270nm Downstream: 1577nm |
||||
|
Connector |
SC/UPC |
SC/UPC |
||||
|
TX Power |
GPON: +3dBm ~ +7dBm, XG(S)PON: +4dBm ~ +7dBm |
GPON: +3dBm ~ +7dBm, XG(S)PON: +4dBm ~ +7dBm |
||||
|
Rx Sensitivity |
XG(S)PON: -28dBm, XGPON: -29.5dBm, GPON: -32dBm |
XG(S)PON: -28dBm, XGPON: -29.5dBm, GPON: -32dBm |
||||
|
Saturation Optical Power |
XG(S)PON: -7dBm, XGPON: -9dBm, GPON: -12dBm |
XG(S)PON: -7dBm, XGPON: -9dBm, GPON: -12dBm |
||||
|
Fans |
Fan Board |
Fan Board |
||||
|
Management Mode |
SNMP/Telnet/CLI/WEB/SSH v2 |
SNMP/Telnet/CLI/WEB/SSH v2 |
||||
|
Software Features |
||||||
|
Management |
SNMP, Telnet, CLI, WEB, SSH v2 |
|||||
|
Fan Group Control |
||||||
|
Port Status monitoring and configuration management |
||||||
|
Online ONT configuration and management |
||||||
|
User management |
||||||
|
Alarm management |
||||||
|
Layer2 Switch |
32K Mac address |
|||||
|
Support 4096 VLANs |
||||||
|
Support port VLAN |
||||||
|
Support VLAN tag/Un-tag, VLAN transparent transmission |
||||||
|
Support VLAN translation and QinQ |
||||||
|
Support storm control based on port |
||||||
|
Support port isolation |
||||||
|
Support port rate limitation |
||||||
|
Support 802.1D and 802.1W |
||||||
|
Support LACP, Dynamic LACP |
||||||
|
QoS based on port, VID, TOS and MAC address |
||||||
|
Access control list |
||||||
|
IEEE802.x flow control |
||||||
|
Port stability statistic and monitoring |
||||||
|
L2 Multicast |
IGMP snooping |
|||||
|
DHCP |
DHCP server, DHCP relay, DHCP snooping |
|||||
|
DHCP option82 |
||||||
|
Layer 3 Protocols |
ARP proxy |
|||||
|
32K hardware IPv4 Host Routes |
||||||
|
24K hardware IPv4 Subnet Routes |
||||||
|
16K hardware IPv6 Host Routes |
||||||
|
Support Radius, Tacacs+ |
||||||
|
Support IP source guard |
||||||
|
Support static route/RIP/OSPF |
||||||
|
IPv6 |
Support NDP |
|||||
|
Support IPv6 Ping, IPv6 Telnet, IPv6 routing |
||||||
|
Support ACL based on source IPv6 address, Destination IPv6 address, L4 port, Protocol type, etc |
||||||
|
Support MLD v1/v2 snooping |
||||||
|
GPON Features |
Tcont DBA |
|||||
|
X-Gem traffic |
||||||
|
In compliant with ITU-T G.9807 and ITU-T G.987 standard |
||||||
|
Up to 20KM transmission Distance |
||||||
|
Support data encryption, multi-cast, port VLAN, separation, RSTP, etc |
||||||
|
Support ONT auto-discovery/link detection/remote upgrade of software |
||||||
|
Support VLAN division and user separation to avoid broadcast storm |
||||||
|
Support power-off alarm function, easy for link problem detection |
||||||
|
Support broadcasting storm resistance function |
||||||
|
Support port isolation between different ports |
||||||
|
Support ACL to configure data packet filter flexibly |
||||||
|
Specialized design for system breakdown prevention to maintain stable system |
||||||
|
Support STP, RSTP |
||||||
Order Information
|
Model |
Description |
|
PT8000 XGSPON OLT Host |
|
|
PT8000-09 Host |
|
|
PT8000-09 |
PT8000-09 chassis, two main slots, seven service slots. |
|
PT80-MSU-09 |
1*100GE QSFP28 interface, 4*10GE SFP+ interface, 1*10/100/1000BASE-T AUX port, 1*CONSOLE port, 1*USB3.0, 1*Type-C USB console, 1*MicroSD port main line card. |
|
PT80-8XGS |
8*GPON&XG(S)PON Combo PON port service line card. |
|
PT80-16GP |
16*GPON port service line card. |
|
PT80-16XGS |
16*GPON&XG(S)PON Combo PON port service line card. |
|
PWR-DC-09 |
PWR-DC-09, -48V DC power module for PT8000-09. |
|
PWR-2000-AC |
PWR-2000-AC, AC power module for PT8000-09. |
|
PT8000-FAN-09 |
PT8000-FAN-09 Fan module for PT8000-09. |
|
PT8000-04 Host |
|
|
PT8000-04 |
PT8000-04 chassis, two main slots, two service slots. |
|
PT80-MSU-04 |
1*100GE QSFP28 interface, 3*10GE SFP+ interface, 1*10/100/1000BASE-T AUX port, 1*USB3.0, 1*Type-C USB console, 1*MicroSD port main line card. |
|
PT80-8XGS |
8*GPON&XG(S)PON Combo PON port service line card. |
|
PT80-16GP |
16*GPON port service line card. |
|
PT80-16XGS |
16*GPON&XG(S)PON Combo PON port service line card. |
|
PWR-450-AC |
PWR-450-AC, AC power module for PT8000-04. |
|
PT8000-FAN-04 |
PT8000-FAN-04 Fan module for PT8000-04. |
|
Transceivers |
|
|
OLT-XGS-N2 |
OLT-XGS-N2, XG(S)PON module, N2 class, 10G downstream, 10G/2.5G upstream, TX wavelength 1577nm, RX wavelength 1270nm, SC/UPC connector. |
|
XG(S)PON/GPON Combo SFP+ |
XG(S)PON/GPON Combo SFP+, XG(S)PON/GPON Combo SFP+ module, compatible with GPON OLT C+ Class and XG(S)PON OLT N2 class. |
:
