Maipu PT4330 Series GPON OLT
GPON networks can provide high throughput point-to-multipoint connections from the Point of Presence to the customer premise. It can be profitably used in large scale deployments of triple-play services as it offers a low CAPEX and OPEX. It is also possible to optimize TCO when fiber resources are limited, by deploying point-to-point passive optical networks. The Maipu supports latest GPON technologies and realize high speed internet access, which offers 2.5Gbps downstream and 1.25Gbps upstream bandwidth.
Maipu PT4330 series OLT is a 1U height GPON OLT with 4/8/16 PON ports that meets flexible and fast FTTx access, suiting the scenarios such as the sparse/remote/residential area, industrial park, commercial building and other campus network scenarios.
Maipu PT4330 series GPON OLT includes PT4330-04, PT4330-08, PT4330-16 three models.
PT4330-04 provides 4*GPON Ports,2*GE RJ45 and 2*10G SFP+ Interfaces, 2*Power Slots.

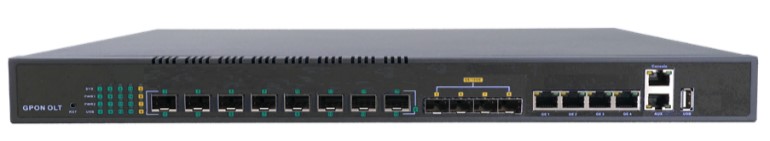

PT4330-08 provides 8*GPON Ports,4*GE RJ45, 2*1G SFP and 2*10G SFP+ Interfaces, 2*Power Slots.

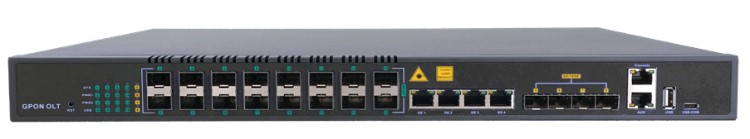

PT4330-16 provides 16*GPON Ports,4*GE RJ45 and 4*10G SFP+ Interfaces, 2*Power Slots.
(Note: The product information may not be latest. For the latest, please contact overseas@maipu.com)
Product Features
Compact design, meets various application scenarios
The PT4330 supports the deployment in diverse scenarios including low density areas, remote areas, sparsely-populated areas and industry parks. Supports FTTM and sharing site/rack with wireless base stations. All these implement fast deployment and fast go-to-market, shorten return on investment periods, and achieve positive cycle of business.
Small size and lightweight, easier to delivery and install
The PT4330 adopts 1U small size and lightweight design, easy to transport and install. Supports multiple installation modes, like limited room space, basement, low-voltage room and small rack or cabinet.
Carrier-class security protection, ensure the safe operation of network
The PT4330 supports uplink redundancy protection including spanning tree protocols such as STP, RSTP and MSTP which can realize link protection.
Large coverage for low density areas
The PT4330 can be used together with C++/C+++ GPON optical modules supporting high optical power budgets and one-stop solutions to achieve fast coverage of long-distance FTTH networks. It can be used together to achieve long-distance and reliable FTTH access, saving 70% deployment time, and balancing investment and network coverage.
Redundant power supply for high availability
The PT4330 adopts redundant power supply design which supports two modular power slots. Customers can choose AC or DC power module based on requirement.
Comprehensive network management
The PT4330 provides SHELL, TELNET, SNMP, SSH, TR069 management to realize large-scale network management and friendly man-machine interface, and provide powerful support for users to manage devices and control network status.
Product Specifications
|
Hardware Features |
||||
|
Item |
PT4330-04 |
PT4330-08 |
PT4330-16 |
|
|
Chassis |
Rack |
1U 19 Inch Standard Box |
||
|
Ethernet Port |
RJ45(1G) |
2 |
4 |
4 |
|
SFP(1G) |
/ |
2 |
/ |
|
|
SFP+(10G) |
2 |
2 |
4 |
|
|
GPON Port |
GPON Port |
4 |
8 |
16 |
|
Connector Type |
Class (Class C++/Class C+++) |
|||
|
Max splitting ratio |
1:128 |
|||
|
Dimension (L*W*H) |
442mm*220mm*43.6mm |
442mm*320mm*43.6mm |
||
|
Net weight (single power) |
2.95kg |
4.05kg |
4.8kg |
|
|
Gross weight (single power) |
4.15kg |
5.65kg |
6.4kg |
|
|
Power Consumption |
35W |
45W |
85W |
|
|
Working Temperature |
0°C ~+50°C |
|||
|
Storage Temperature |
-40~+85°C |
|||
|
Relative Humidity |
5~90% (non-conditioning) |
|||
|
Management Ports |
1*10/100/1000BASE-T out-band port, 1*CONSOLE port, 1*USB2.0 |
1*10/100/1000BASE-T out-band port, 1*CONSOLE port, 1*USB2.0, 1*Type-C USB (for console) |
||
|
PON Port Specification |
Max. Transmission Distance |
20KM |
||
|
Max. Speed |
Upstream 1.244Gbps, Downstream 2.488Gbps |
|||
|
Wavelength |
TX 1490nm, RX 1310nm |
|||
|
Connector |
SC/UPC |
|||
|
Fiber Type |
9/125μm SMF |
|||
|
TX Power |
+4.5~+10dBm |
|||
|
Rx Sensitivity |
≤-30dBm |
|||
|
Saturation Optical Power |
-12dBm |
|||
|
Management Mode |
TR069 ACS, WEB, SNMP, Telnet, CLI |
|||
|
Software Features |
||||
|
Management |
SNMP, Telnet, CLI, WEB, SSH |
|||
|
Port Status monitoring and configuration management |
||||
|
Online ONT configuration and management |
||||
|
User management |
||||
|
Alarm management |
||||
|
Layer2 Switch |
32K Mac address |
|||
|
Support 4096 VLANs |
||||
|
Support port VLAN and protocol VLAN |
||||
|
Support VLAN tag/Un-tag, VLAN transparent transmission |
||||
|
Support VLAN translation and QinQ |
||||
|
Support storm control based on port |
||||
|
Support port isolation |
||||
|
Support port rate limitation |
||||
|
Support 802.1D and 802.1W |
||||
|
Support LACP |
||||
|
QoS based on port, VID, TOS and MAC address |
||||
|
Access control list |
||||
|
IEEE802.x flow control |
||||
|
Port stability statistic and monitoring |
||||
|
L2 Multicast |
IGMP snooping |
|||
|
2K IP Multicast Groups; |
||||
|
DHCP |
DHCP server, DHCP relay, DHCP snooping |
|||
|
DHCP option82 |
||||
|
Layer 3 Protocols |
ARP proxy |
|||
|
4096 hardware Host Routes |
||||
|
512 hardware Subnet Routes |
||||
|
Support 802.1X, Radius, Tacacs+ |
||||
|
Support IP source guard |
||||
|
Support static route/RIP/OSPF |
||||
|
GPON Features |
Tcont DBA |
|||
|
Gemport traffic |
||||
|
In compliant with ITU-T984.x standard |
||||
|
Up to 20KM transmission Distance |
||||
|
Support ONT auto-discovery/link detection/remote upgrade of software |
||||
|
Support VLAN division and user separation to avoid broadcast storm |
||||
|
Support power-off alarm function, easy for link problem detection |
||||
|
Support broadcasting storm resistance function |
||||
|
Support port isolation between different ports |
||||
|
Support ACL to configure data packet filter flexibly |
||||
Order Information
|
Series |
Model |
Description |
|
PT4330 GPON OLT Host |
||
|
PT4330 Series |
PT4330-04 |
4*GPON Ports,2*GE RJ45 and 2*10G SFP+ Interfaces, 2*Power Slots. |
|
PT4330-08 |
8*GPON Ports,4*GE RJ45, 2*1G SFP and 2*10G SFP+ Interfaces, 2*Power Slots. |
|
|
PT4330-16 |
16*GPON Ports,4*GE RJ45 and 4*10G SFP+ Interfaces, 2*Power Slots. |
|
