10/100/1000M SFP Transceiver
Maipu SFP-GET series Copper Small Form Pluggable (SFP) transceivers is high-performance, cost-effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which supporting 1000Mbps data-rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports 1000Mbps full duplex data links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.
Product Features
l Up to 1.25Gb/s bi-directional data links
l 1.25G 10/100/1000M Ethernet over Cat5 cable
l Hot-pluggable SFP footprint
l Fully metallic enclosure for low EMI
l Low power dissipation (1.05 W typical)
l Compact RJ-45 connector assembly
l 10/100/1000Mbps compliant in host systems with SGMII or Serders interface
l Case temperature range of 0℃ to +70℃(Commercial)
Product Specifications
Electrical Power Interface
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
Supply Current |
Icc |
|
320 |
375 |
mA |
1 |
|
Input Voltage |
Vcc |
3.13 |
3.30 |
3.47 |
V |
2 |
|
Maximum Voltage |
Vmax |
|
|
4 |
V |
|
|
Surge Current |
Isurge |
|
|
30 |
mA |
3 |
Low-Speed Signals
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
SFP Output LOW |
VOL |
0 |
|
0.5 |
V |
1 |
|
SFP Output HIGH |
VOH |
Vcc -0.5 |
|
Vcc +0.3 |
V |
1 |
|
SFP Input LOW |
VIL |
0 |
|
0.8 |
V |
2 |
|
SFP Input HIGH |
VIH |
2.0 |
|
Vcc +0.3 |
V |
2 |
High-Speed Electrical Interface
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
Line Frequency |
|
|
125 |
|
MHz |
1 |
|
Tx Output Impedance |
|
|
100 |
|
Ohm |
2 |
|
Rx Input Impedance |
|
|
100 |
|
Ohm |
2 |
High-Speed Electrical Interface-Host SFP
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
Single ended data input swing |
Vin |
250 |
|
1200 |
mV |
1 |
|
Single ended data output swing |
Vout |
350 |
|
800 |
mV |
1 |
|
Rise/Fall Time |
Tr/Tf |
|
175 |
|
ps |
20%-80% |
|
Tx Input Impedance |
Zin |
|
50 |
|
Ohm |
1 |
|
Rx Output Impedance |
Zout |
|
50 |
|
Ohm |
1 |
General Specifications
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
Data Rate |
|
10 |
|
1000 |
Mb/sec |
1,3,4,5 |
|
Cable Length |
|
|
|
100 |
m |
2 |
Environmental Specifications
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
Operating Temperature |
|
0 |
|
+70 |
℃ |
Commercial |
|
Storage Temperature |
|
-40 |
|
+85 |
℃ |
Temperature |
Order Information
|
Model |
Description |
|

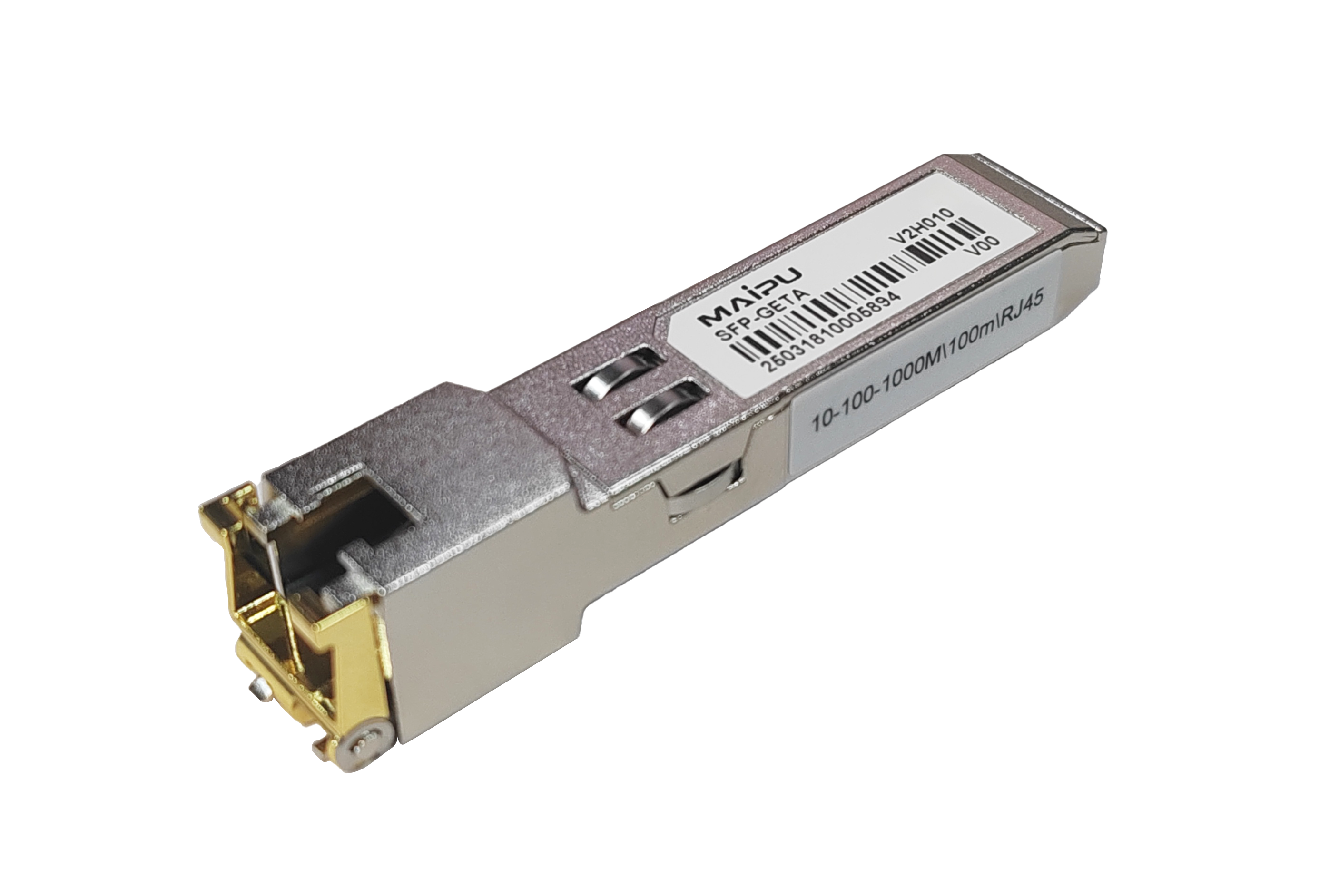

SFP-GETA |
V2 Version: 10/100/1000M Base-T, RJ45 interface, Serders |
|

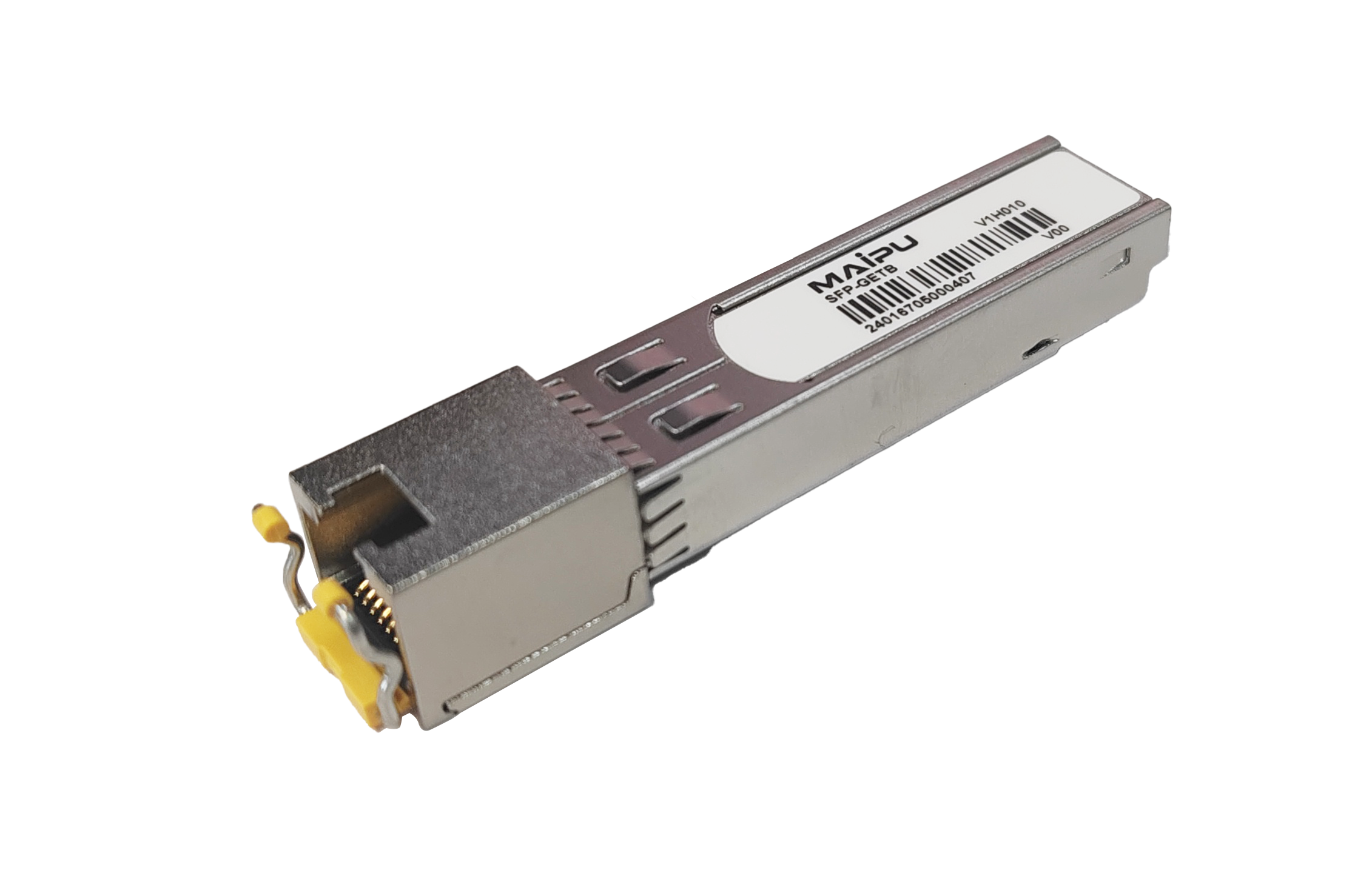

SFP-GETB |
V1 Version: 10/100/1000M Base-T, RJ45 interface, SGMII |
